Description
AF Series --- AF2R Work
Area Light Datasheet

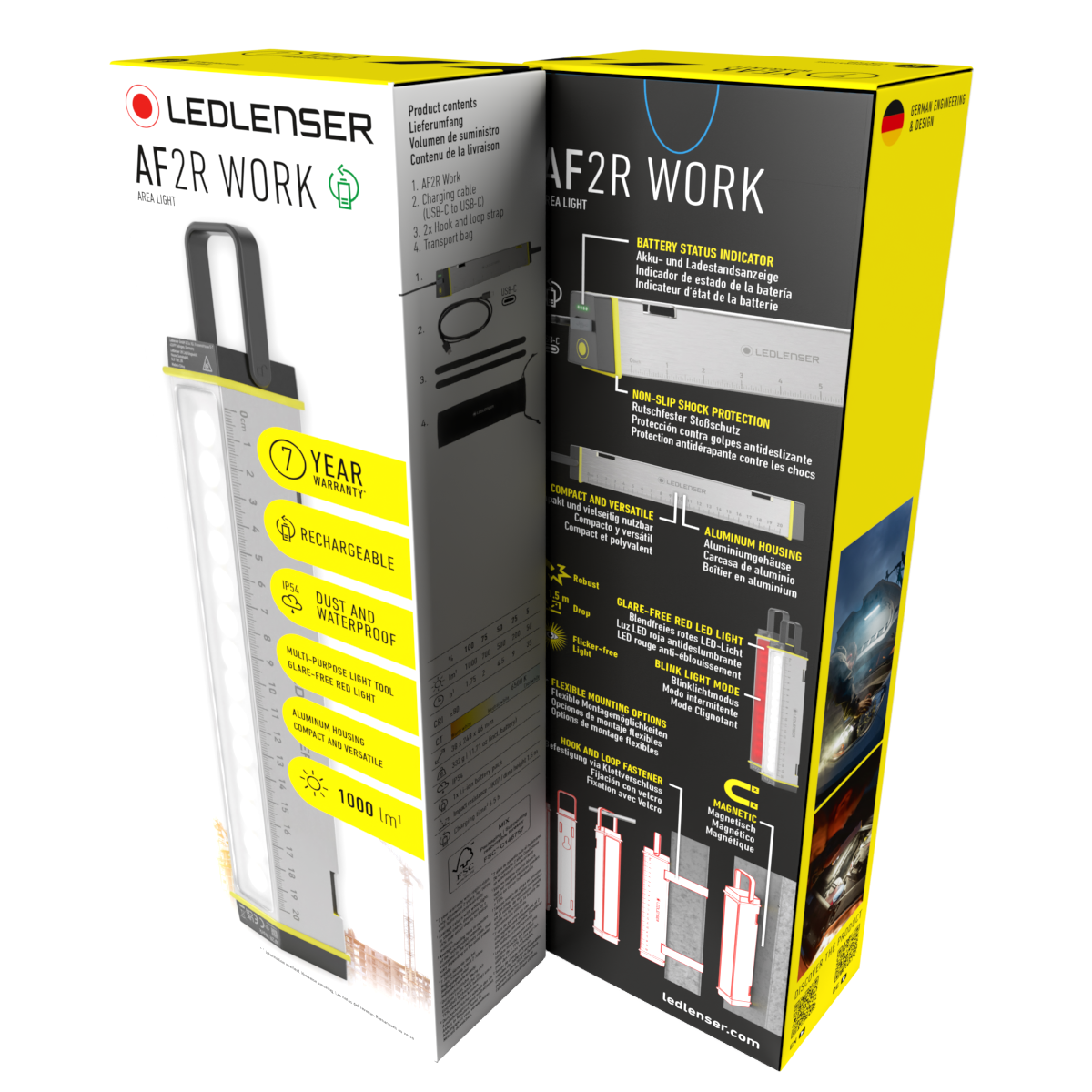

PACKAGING INFORMATION | |
|---|---|
Type of packaging | Box |
Scope of delivery | Pouch,
USB cable,
Hook and loop straps |
Item No. | 502921 |
Color | Silver |
Dimensions W x H x D [cm] | 7.2 x 26 x 4.2
|
Gross weight [g] | 433 |
TECHNICAL DATA | |
|---|---|
Width [mm] | 38 |
Depth [mm] | 46 |
Height [mm] | 248 |
Weight incl. batteries [g] | 332 |
Weight without batteries [g] | 261 |
Focus function | No |
Primary material | Aluminum alloy |
Secondary material | PC
|
Cartridge | No |
POWER SUPPLY | |
|---|---|
Power source type | Rechargeable battery |
Battery quantity | 1 |
Battery type | Li-ion |
Battery replaceable | No |
Total battery voltage [V] | 3.7 |
Total battery capacity [mAh] | 4800 |
Total battery energy² [Wh] | 17.76 |
Rechargeable | Yes |
Charging time [min] | 390 |
Energy modes | Constant Light |
Energy status indicator | Battery Indicator,
Charge Indicator,
Low Battery Warning |
FURTHER SPECIFICATIONS | |
|---|---|
IP class | IP54 |
Drop test (drop height) [m] | 1.5 |
IK Code [J] | 7 |
Working temperature range [°C] | -20 to +40 |
LIGHT FUNCTIONS | |
|---|---|
Low Power, Mid Power, Power, Blink | |
LIGHT SOURCE | Main |
|---|---|
Color | White |
Color temperature [K] | 6000 to 7000 |
Color rendering index (CRI) | 80 |
LIGHT VALUES | ||||
|---|---|---|---|---|
ANSI – Energy Saving | Power | Mid Power | Low Power | |
Light output [lm] | 1000 | 500 | 50 | |
Beam distance [m] | 45 | 25 | 10 | |
Run time [h] | 1.75 | 4.5 | 35 | |
SWITCH | |
|---|---|
Switch | |
FEATURES | |
|---|---|
Dimmable , Red Light, Transportation lock | |
TECHNOLOGIES | |
|---|---|
Temperature Control System | |

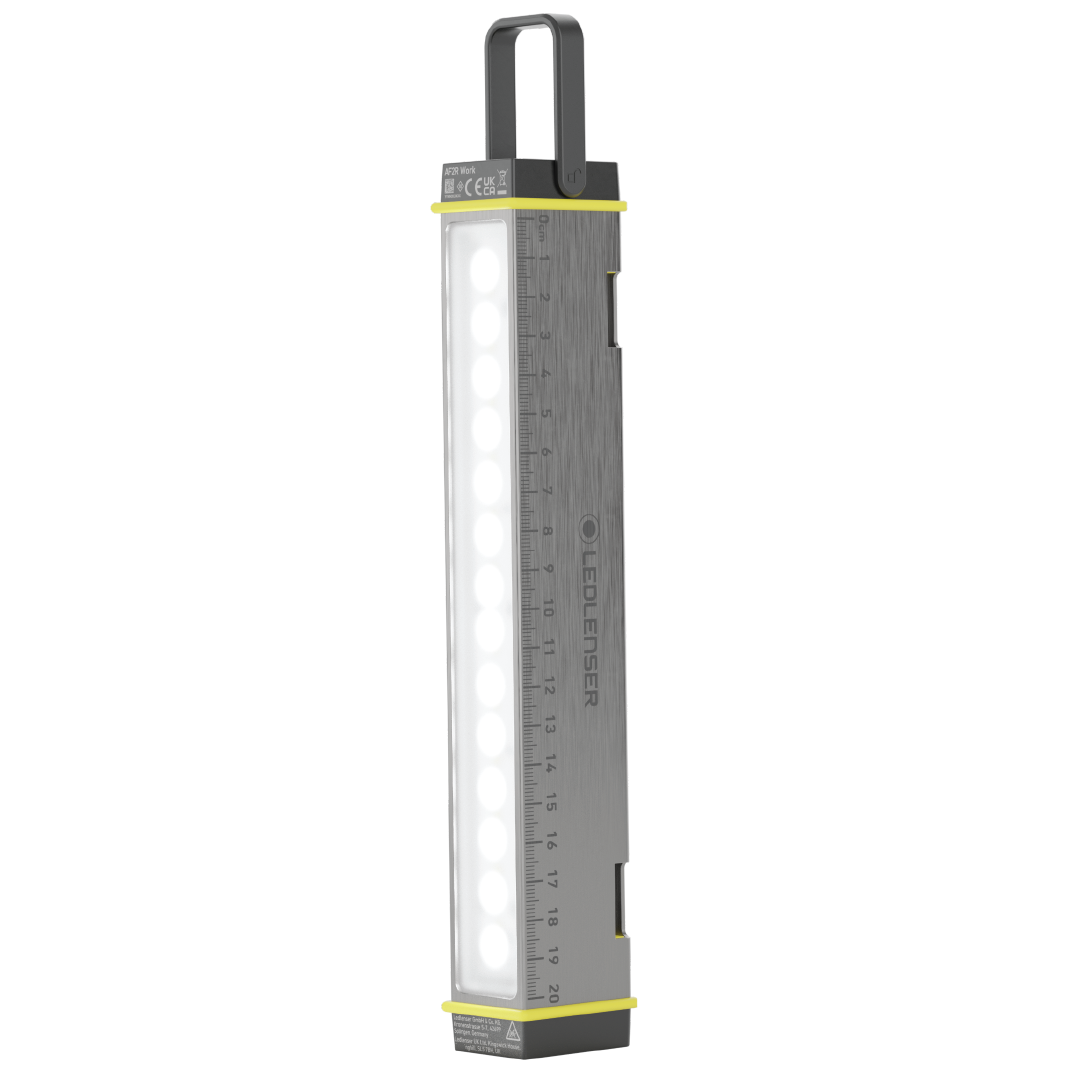

AF2R Work The Ledlenser AF series

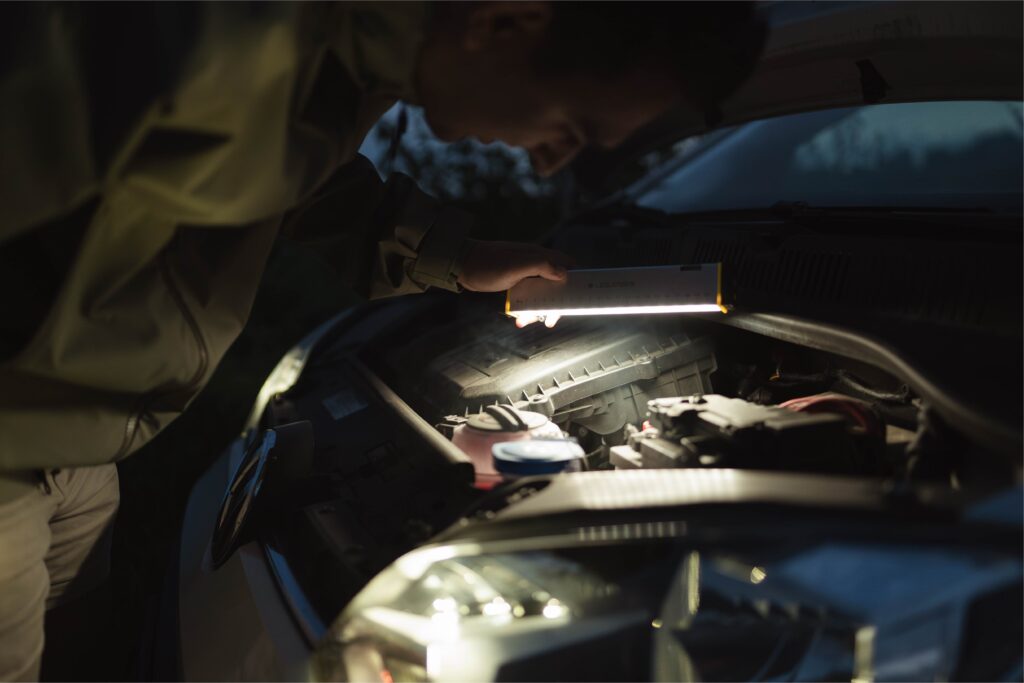

Illuminating your work area, helping you check on fuse boxes or car engines, or using it as a warning light in case of an accident: The Ledlenser AF2R Work is our smallest Area Lights model and extremely versatile. The multi-purpose light tool is a compact and reliable light you won’t want to miss.
- Extremely compact multi-purpose light tool

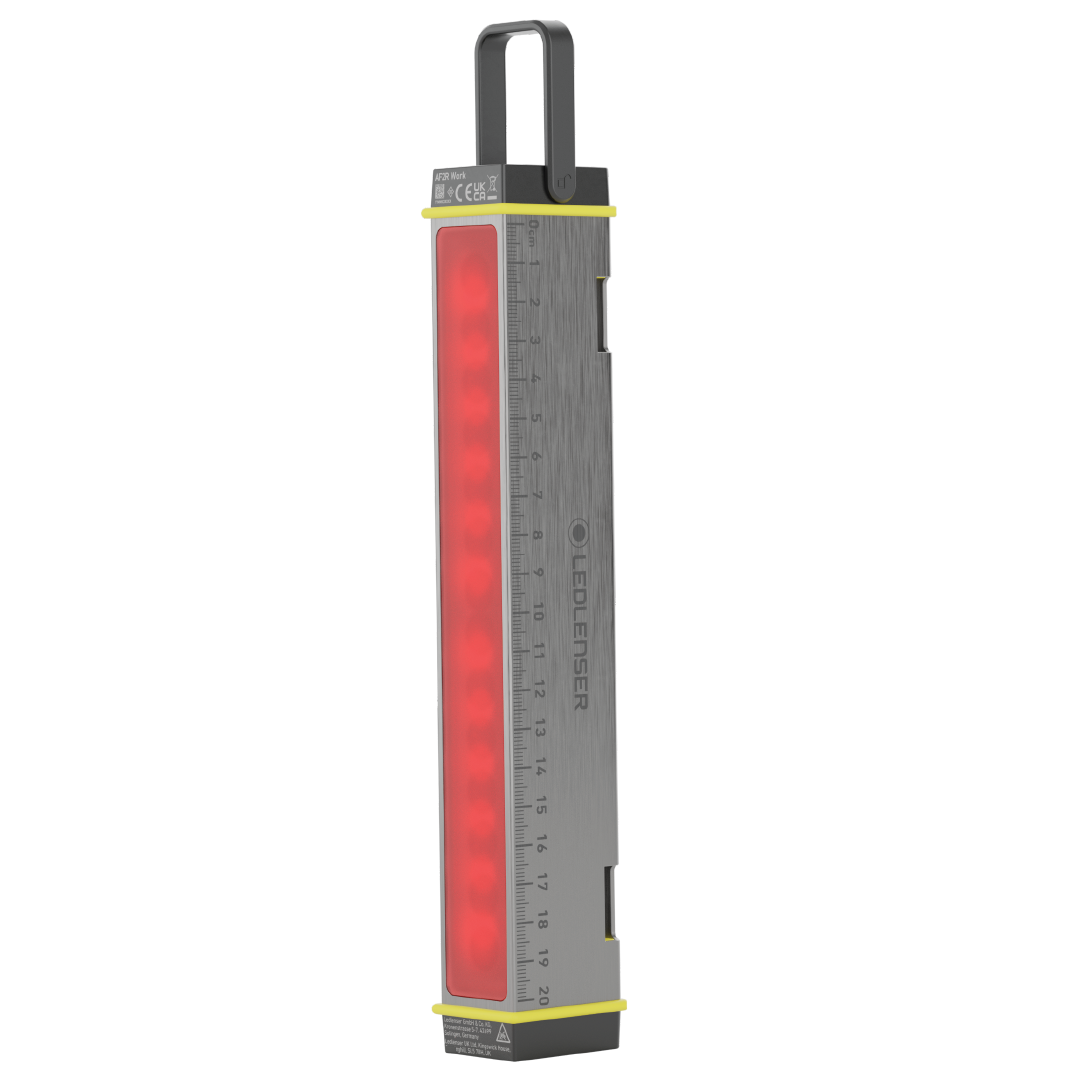

- 5 brightness levels for white light, 2 brightness levels and blink mode for red light
- Flexible mounting via rubber hook, magnet, hook and loop straps or screw hole

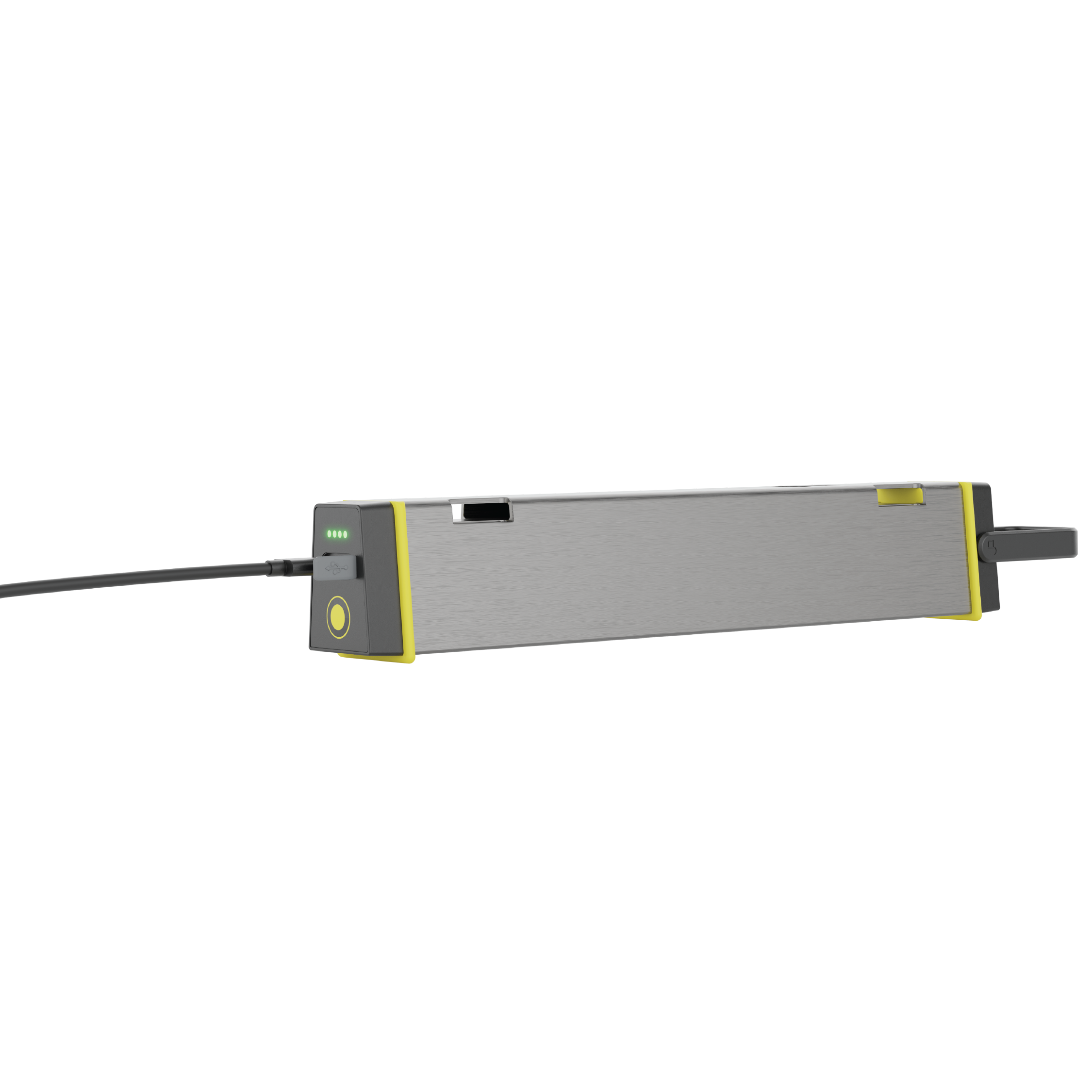

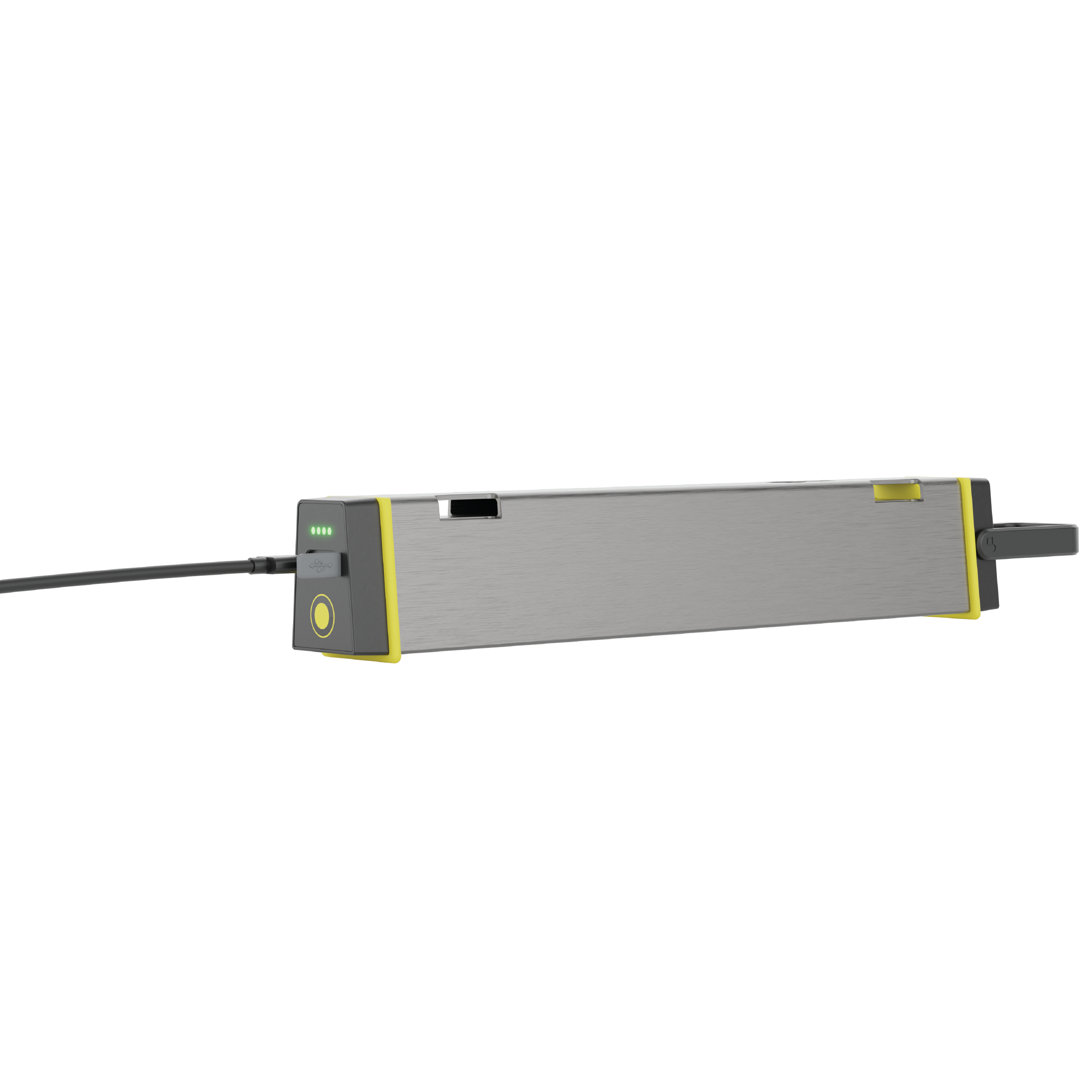

- Powerful battery; easily rechargeable via USB-C

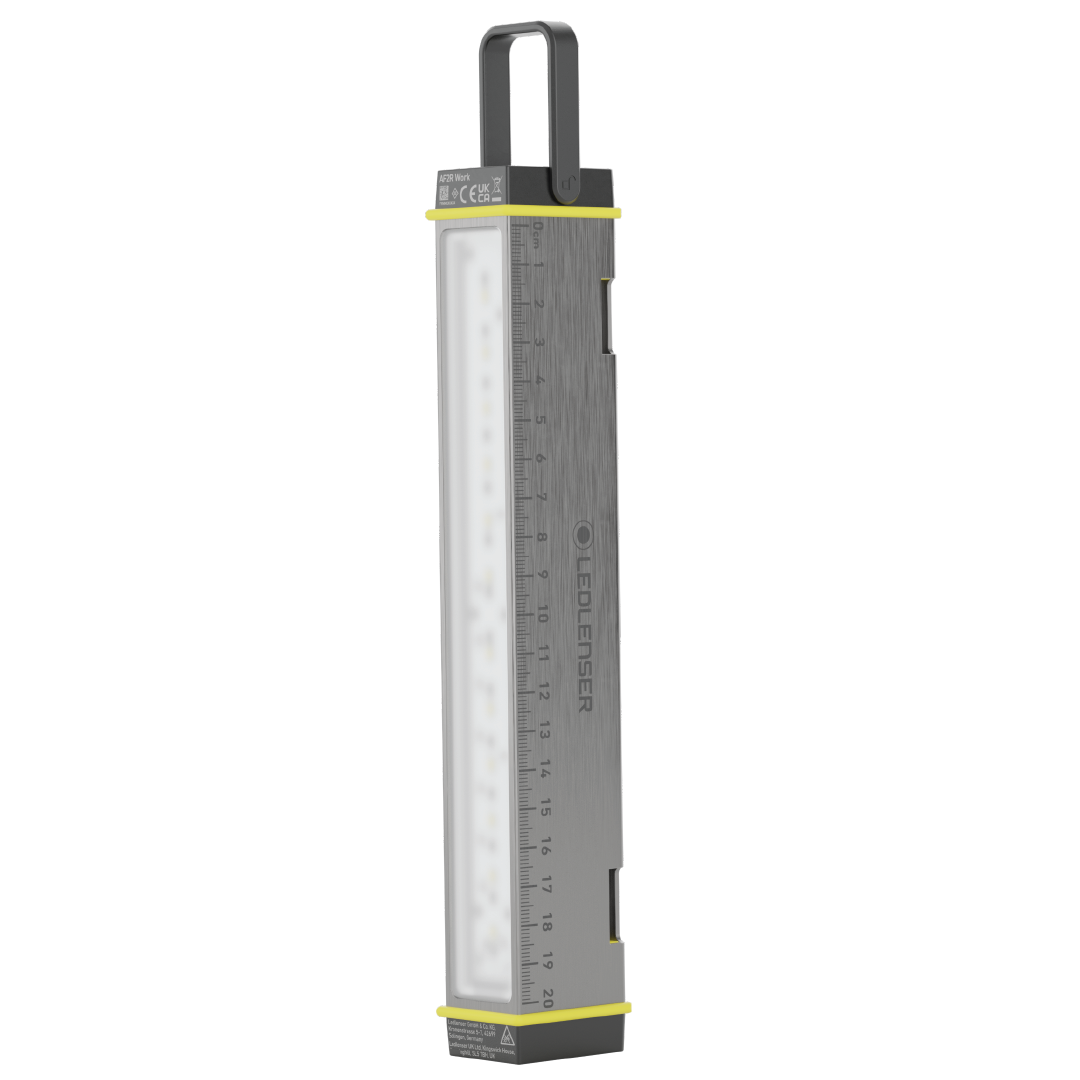

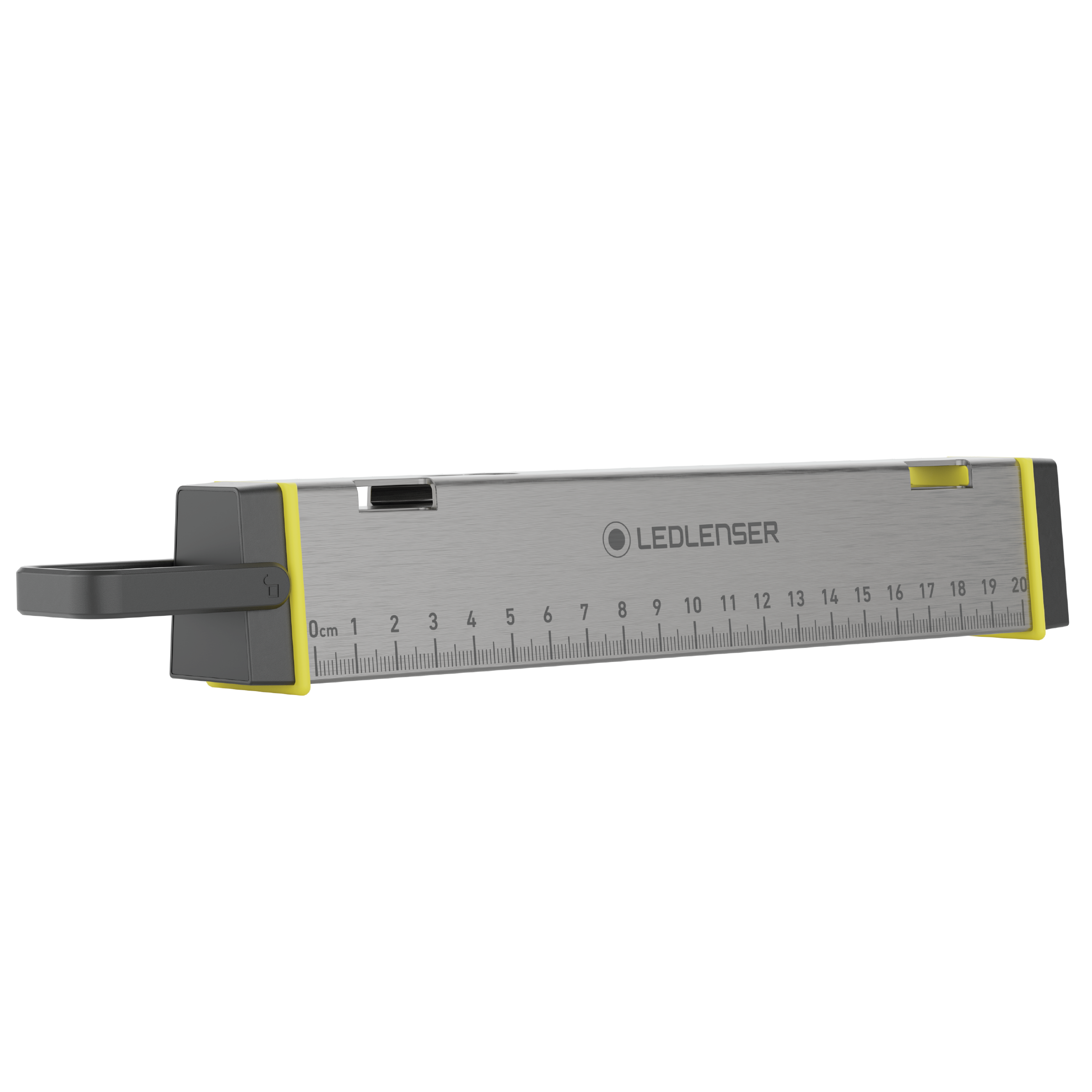

- Robust aluminum housing with integrated ruler, non-slip shock protection; dust and waterproof (IP54)
Multi-Concentrated Light
The Multi-Concentrated Light technology directs the light to where you need it the most. The highlight: It makes your light 12 % more energy efficient and the illuminance is 35 % higher than that of conventional floodlights.*
Reduced Peripheral Glare
Our Reduced Peripheral Glare guarantees less glaring at work. The LEDs are embedded into a waffle structure and concentrate the light. At the same time, the reflector grid prevent peripheral glaring.
Hybrid Power
Battery or mains operation – products with Hybrid Power are designed to be used with both energy sources. Battery operation makes your product a portable companion, whereas mains operation is ideal for stationary use.
Guaranteed Quality
- Robust and reliable lights for daily work
- 24 stress tests during design and development ensure
performance and durability - All products backed by world class customer service
ATEX SERIES
iLH8
EX-Zone 2/22-
Gas group: IIA,IIB,IIC
-
Dust group: IIIA,IIIB,IIIC
-
Temperature class: T4 / 135°C
-
Max 280 lm
-
Max 38 h
-
IP66
-
345 g
-
3x AA Alkaline
-
Non-rechargeable
-
Rear Light
-
1 Set of Batteries, Battery Cartridge
iLH8R
EX-Zone 2/22-
Gas group: IIA,IIB,IIC
-
Dust group: IIIA,IIIB,IIIC
-
Temperature class: T4 / 135°C
-
Max 300 lm
-
Max 40 h
-
IP66
-
342 g
-
Li-ion Batterypack
-
Rechargeable
-
Charge Indicator, Rear Light
-
1 Set of Batteries, Charging Station, Power Supply
EXH8
EX-Zone 0/20-
Gas group: IIA,IIB,IIC
-
Dust group: IIIA,IIIB,IIIC
-
Temperature class: T4 / 135°C
-
Max 180 lm
-
Max 40 h
-
IP66
-
345 g
-
3x AA Alkaline
-
Non-rechargeable
-
Rear Light
-
1 Set of Batteries, Battery Cartridge

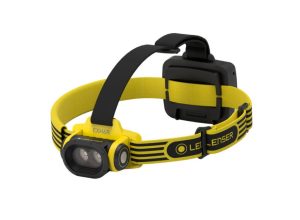

EXH6R
