Description
ATEX Series --- EX7
Industry Flashlight Datasheet
PACKAGING INFORMATION | |
|---|---|

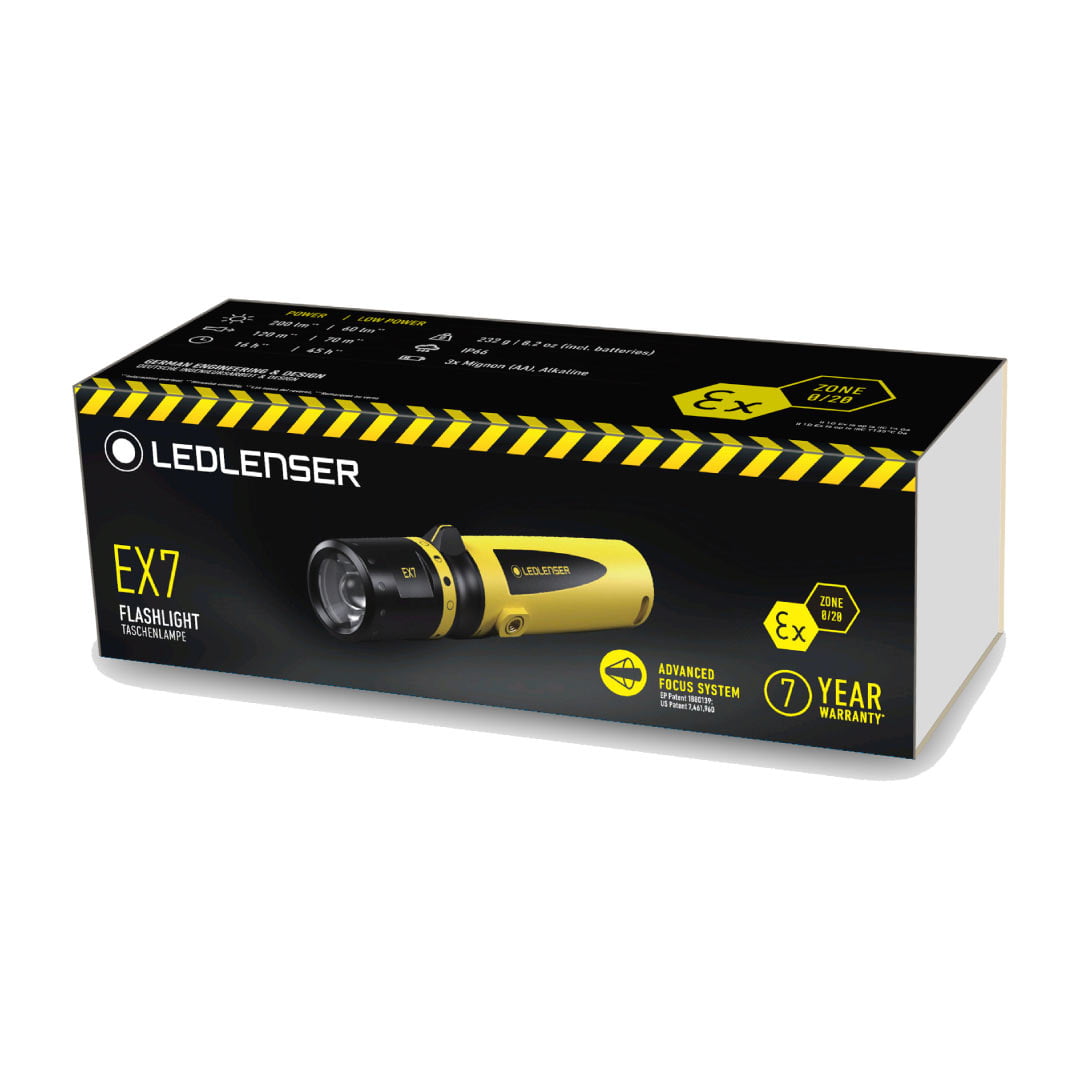

Type of packaging | Sleeve Box |
Scope of delivery | 1 set of batteries, Belt clip |
Item No. | 500836 |
Dimensions W x H x D [cm] | 22 x 7.4 x 8.4 |
Gross weight [g] | 426 |
TECHNICAL DATA | |
|---|---|
Length defocused [mm] | 161.5 |
Length [mm] | 161.5 |
Head diameter [mm] | 41 |
Tube diameter [mm] | 41 |
Weight incl. batteries [g] | 232 |
Weight without batteries [g] | 164 |
Focus function | Yes |
Head material | PC |
Tube material | PC |
Optic | Plastic lense (PMMA) |
Cartridge | Yes |
POWER SUPPLY | |
|---|---|
Power source type | Battery |
Battery quantity | 3 |
Battery type | Alkaline |
Battery description | Mignon (AA) 1.5V |
Rechargeable | No |
EXPLOSION PROTECTION | |
|---|---|
ATEX Certificate | Baseefa17ATEX0157 |
IEC Ex Certificate | IECEx BAS18.0008 |
Ex marking | II 1G Ex ia op is IIC T4 Ga II 1D Ex ia op is IIIC T135°C Da |
Ex-Zone Gas | 0 |
Gas Group | IIA ,IIB, IIC |
Temperature Class Gas | T4 |
Ex-Zone Dust | 20 |
Dust Group | IIIA, IIIB, IIIC |
Temperature Class Dust | 135 °C |
FURTHER SPECIFICATIONS | |
|---|---|
IP class | IP68 |
Drop test (drop height) [m] | 1 |
Working temperature range [°C] | -20 to +40 |
LIGHT FUNCTIONS | |
|---|---|
Low Power, Power | |
LIGHT SOURCE | |
|---|---|
Amount LEDs | 1 |
Color temperature [K] | 6000 to 8000 |
Color rendering index (CRI) | 65 |
LIGHT VALUES | ||||
|---|---|---|---|---|
ANSI – Energy Saving | Boost | Power | Mid Power | Low Power |
Light output [lm] | 200 | 60 | ||
Beam distance [m] | 120 | 70 | ||
Run time [h] | 16 | 45 | ||
SWITCH | |
|---|---|
Magnetic Switch, Rotary Switch | |
TECHNOLOGIES | |
|---|---|
Advanced Focus System | |
Ledlenser EX Series --- EX7
If you’re rolling up your sleeves but want to keep your gloves on, the Ledlenser EX7 is the perfect lamp for you. The extra-large Magnetic Switch is even easy to operate with the clunkiest protective equipment. Yet the flashlight is safe for use in Ex-Zone 0/20 and features a patented Advanced Focus System. Meaning you’re safe in virtually any environment from tank to grain elevator with explosive gases or dust. All this with a battery life of up to 45 hours.
Magnetic Switch for easy operation with gloves and protective equipment
First EX lamp for Ex-Zone 0/20 with patented Advanced Focus System
Focusable
Long battery life (up to 45 hours)
Suitable for the highest gas and dust groups (IIC/IIIC)
Battery operated, uses 3 x alkaline AA
Light Functions
- Power – high light output for every situation
- Low Power – economical light for long battery life, glare-free reading and working
Switches
- Magnetic Switch – with two off positions for easy operation while wearing gloves and protective equipment
EX - Rating
- Ex-Zone 0/20 Suitable – The first torch for Ex-Zone 0/20 areas with patented Advanced Focus System
Special Function
- Ex-Zone 0/20 Suitable – The first torch for Ex-Zone 0/20 areas with patented Advanced Focus System
IP-Class
- IP66 – Protection for submersion in Water resistant against powerful jets
- IP68 – Resistant to submersion up to a maximum depth of 1.5m underwater for up to thirty minutes.
WITH ATEX SERIES, THE JOBS ARE SAFE. AT LEAST WHEN IT COMES TO THE LIGHT.
If you work in explosive environments, safety is extremely important when it comes to using electronics. Safety, which is defined in the ATEX directives of the European Union. Ledlenser EX and iL series lamps meet these standards in every aspect. Designed specifically for contact with explosive gases, vapors and dust in the best possible groups IIC and IIIC. They feature maximum dust protection, are protected from water and ATEX and IECEx approved.
EX-Series Flashlight Overview
Zone 0/20
EX4
Industry Flashlight
Certification:
EX-Zone:
0 / 20
Gas Group:
IIA, IIB, IIC
Dust Group:
IIIA, IIIB, IIIC
Temperature Class:
T4/T200 135°C
Max 50 Lumens
Max 35 meter
Max 7 hours
IP Level
IP66
65 grams
include battery
2x AAA Alkaline
Non-Rechargeable
include 1 Set of batteries
Zone 0/20
EX7
Industry Flashlight
Certification:
EX-Zone:
0 / 20
Gas Group:
IIA, IIB, IIC
Dust Group:
IIIA, IIIB, IIIC
Temperature Class:
T4/T200 135°C
Max 200 Lumens
Max 120 meter
Max 45 hours
IP Level
IP66
232 grams
include battery
3x AA Alkaline
Non-Rechargeable
1 Set of Batteries, Belt Clip, Intelligent Clip
