Description
ATEX Series --- EX7R
Industry Flashlight Datasheet
PACKAGING INFORMATION | |
|---|---|
Type of packaging | Sleeve Box |
Scope of delivery | 1 set of rechargeable batteries,
Belt clip,
Charging base,
Intelligent clip,
Power supply |
Item No. | 500837 |
Dimensions W x H x D [cm] | 22 x 14.7 x 8.4 |
Gross weight [g] | 825 |
TECHNICAL DATA | |
|---|---|
Length defocused [mm] | 161 |
Length [mm] | 161 |
Head diameter [mm] | 41 |
Tube diameter [mm] | 41 |
Weight incl. batteries [g] | 228 |
Weight without batteries [g] | 152 |
Focus function | Yes |
Head material | PC |
Tube material | PC |
Optic | Plastic lense (PMMA) |
Cartridge | Yes |
POWER SUPPLY | |
|---|---|
Power source type | Rechargeable battery |
Battery quantity | 3 |
Battery type | Li-ion |
Battery description | 1×18650 Battery Pack 3.7V |
Total battery voltage [V] | 3.7 |
Total battery capacity [mAh] | 3250 |
Total battery energy [Wh] | 12 |
Rechargeable | Yes |
UN number | UN 3481 |
Charging time [min] | 660 |
Energy status indicator | Charge Indicator |
EXPLOSION PROTECTION | |
|---|---|
ATEX Certificate | Baseefa17ATEX0157 |
IEC Ex Certificate | IECEx BAS18.0008 |
Ex marking | II 2G Ex ib op is IIC T4 Gb II 2D Ex ib op is IIIC T135°C Db |
Ex-Zone Gas | 1 |
Gas Group | IIA ,IIB, IIC |
Temperature Class Gas | T4 |
Ex-Zone Dust | 21 |
Dust Group | IIIA, IIIB, IIIC |
Temperature Class Dust | 135 °C |
FURTHER SPECIFICATIONS | |
|---|---|
IP class | IP68 |
Drop test (drop height) [m] | 1 |
Working temperature range [°C] | -20 to +40 |
LIGHT FUNCTIONS | |
|---|---|
Low Power, Power | |
LIGHT SOURCE | |
|---|---|
Amount LEDs | 1 |
LED type | Xtreme LED |
Color | White |
Color temperature [K] | 6000 to 8000 |
Color rendering index (CRI) | 65 |
LIGHT VALUES | ||||
|---|---|---|---|---|
ANSI – Energy Saving | Boost | Power | Mid Power | Low Power |
Light output [lm] | 220 | 50 | ||
Beam distance [m] | 140 | 65 | ||
Run time [h] | 10 | 45 | ||
SWITCH | |
|---|---|
Magnetic Switch, Rotary Switch | |
TECHNOLOGIES | |
|---|---|
Advanced Focus System | |

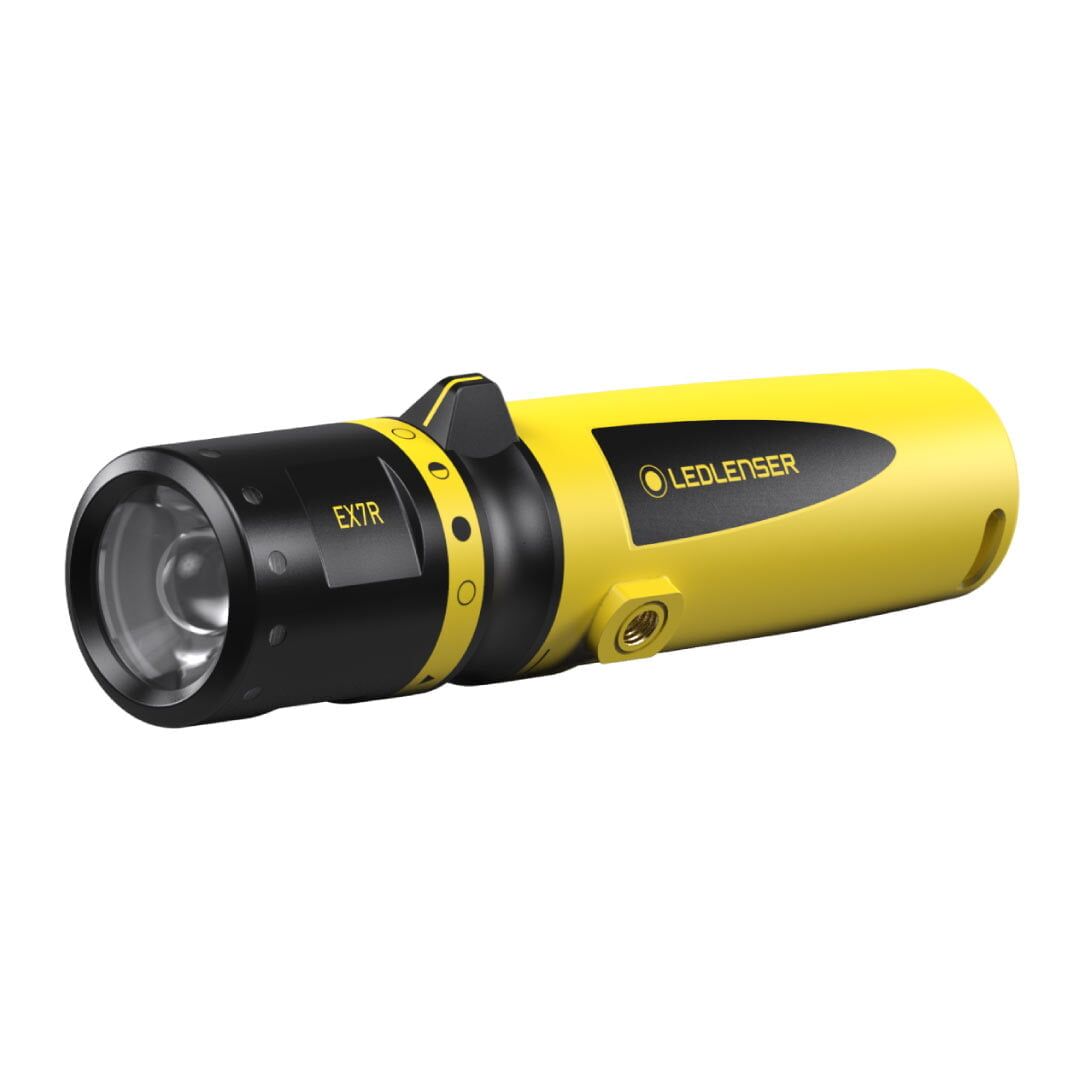

EX7R- The Ledlenser EX series
This Ex- zone 1/21 flashlight makes work easier – not just because it weighs a mere 228 g (incl. batteries). The biggest reason is the Magnetic Switch. This on/off switch can easily be controlled with work gloves. And it’s the first rechargeable flashlight for Ex- zone 1/21 with the patented Advanced Focus System. The included charging cradle makes charging the lithium-ion battery easy. But with a maximum battery life of 45 hours, it will rarely need to be recharged.
Rechargeable via charging cradle
Magnetic Switch for easy operation with gloves and protective equipment
Focusable
Suitable for the highest gas and dust groups (IIC/IIIC)
Light Functions
- Power – high light output for every situation
- Low Power – economical light for long battery life, glare-free reading and working
Switches
- Magnetic Switch – with two off positions for easy operation while wearing gloves and protective equipment
EX - Rating
- Ex-Zone 1/21 Suitable – Working areas in which explosive atmospheres
in the form of flammable gases, vapors or dust clouds prevail occasionally.
Special Function
- Ex-Zone 1/21 Suitable – Working areas in which explosive atmospheres
in the form of flammable gases, vapors or dust clouds prevail occasionally.
IP-Class
- IP66 – Protection for submersion in Water resistant against powerful jets
- IP68 – Resistant to submersion up to a maximum depth of 1.5m underwater for up to thirty minutes.
WITH ATEX SERIES, THE JOBS ARE SAFE. AT LEAST WHEN IT COMES TO THE LIGHT.
If you work in explosive environments, safety is extremely important when it comes to using electronics. Safety, which is defined in the ATEX directives of the European Union. Ledlenser EX and iL series lamps meet these standards in every aspect. Designed specifically for contact with explosive gases, vapors and dust in the best possible groups IIC and IIIC. They feature maximum dust protection, are protected from water and ATEX and IECEx approved.
LEDLENSER FLASHLIGHT
ATEX SERIES
Zone 0/20
EX4
Industry Flashlight
Certification:
EX-Zone:
0 / 20
Gas Group:
IIA, IIB, IIC
Dust Group:
IIIA, IIIB, IIIC
Temperature Class:
T4/T200 135°C
Max 50 Lumens
Max 35 meter
Max 7 hours
IP Level
IP66
65 grams
include battery
2x AAA Alkaline
Non-Rechargeable
include 1 Set of batteries
In stock
Zone 0/20
EX7
Industry Flashlight
Certification:
EX-Zone:
0 / 20
Gas Group:
IIA, IIB, IIC
Dust Group:
IIIA, IIIB, IIIC
Temperature Class:
T4/T200 135°C
Max 200 Lumens
Max 120 meter
Max 45 hours
IP Level
IP66
232 grams
include battery
3x AA Alkaline
Non-Rechargeable
include 1 Set of batteries, Belt Clip, Intelligent Clip
In stock (can be backordered)
Zone 1/20
EX7R
Industry Flashlight
Certification:
EX-Zone:
1 / 20
Gas Group:
IIA, IIB, IIC
Dust Group:
IIIA, IIIB, IIIC
Temperature Class:
T4/T200 135°C
Max 220 Lumens
Max 140 meter
Max 45 hours
IP Level
IP66
228 grams
include battery
Li-ion battery pack
Rechargeable
include 1 Set of batteries, Belt Clip, Intelligent Clip, Charging Station, Power Supply
In stock
