Description
i4 Datasheet
PACKAGING INFORMATION | |
|---|---|
Type of packaging | Box |
Scope of delivery | warnings, warranty card, quick user
guide, 1 set of batteries, mini catalog,
pocket clip |
Item No. | 500753 |
Dimensions W x H x D [cm] | 19 x 6.8 x 4 |
Gross weight [g] | 144 |
TECHNICAL DATA | |
|---|---|
Length defocused [mm] | 145 |
Length focused [mm] | 140 |
Head diameter [mm] | 15 |
Tube diameter [mm] | 15 |
Weight incl. batteries [g] | 55 |
Weight without batteries [g] | 32 |
Focus function | Yes |
Head material | Aluminum alloy |
Tube material | Aluminum alloy |
Optic | Lense (PMMA) |
Cartridge | No |
POWER SUPPLY | |
|---|---|
Power source type | Battery |
Battery quantity | 2 |
Battery type | Alkaline |
Battery Technology | Micro (AAA) 1.5V |
Total battery voltage [V] | 3 |
Total battery capacity [mAh] | 1250 |
Total battery energy [Wh] | 3.75 |
Rechargeable | No |
Charging time [min] | – |
Energy modes | Energy Saving |
Charging technology | – |
Usable batteries | AAA NiMH 1.2V |
FURTHER SPECIFICATIONS | |
|---|---|
IP class | IPX4 |
Drop test (drop height) [m] | 2 |
Working temperature range [°C] | -20 to +40 |
LIGHT FUNCTIONS | |
|---|---|
Low Power, Power | |
LIGHT SOURCE | |
|---|---|
Amount LEDs | 1 |
LED type | Power LED |
Color | – |
Color temperature [K] | 6000 to 8000 |
Color rendering index (CRI) | 65 |
LIGHT VALUES | ||||
|---|---|---|---|---|
Boost | Power | Mid Power | Low Power | |
Light output [lm] | 120 | 10 | ||
Beam distance [m] | 80 | 20 | ||
Run time [h] | 4 | 20 | ||
SWITCH | |
|---|---|
End Cap Switch | |
TECHNOLOGIES | |
|---|---|
Advanced Focus System, Rapid Focus, Smart Light Technology | |

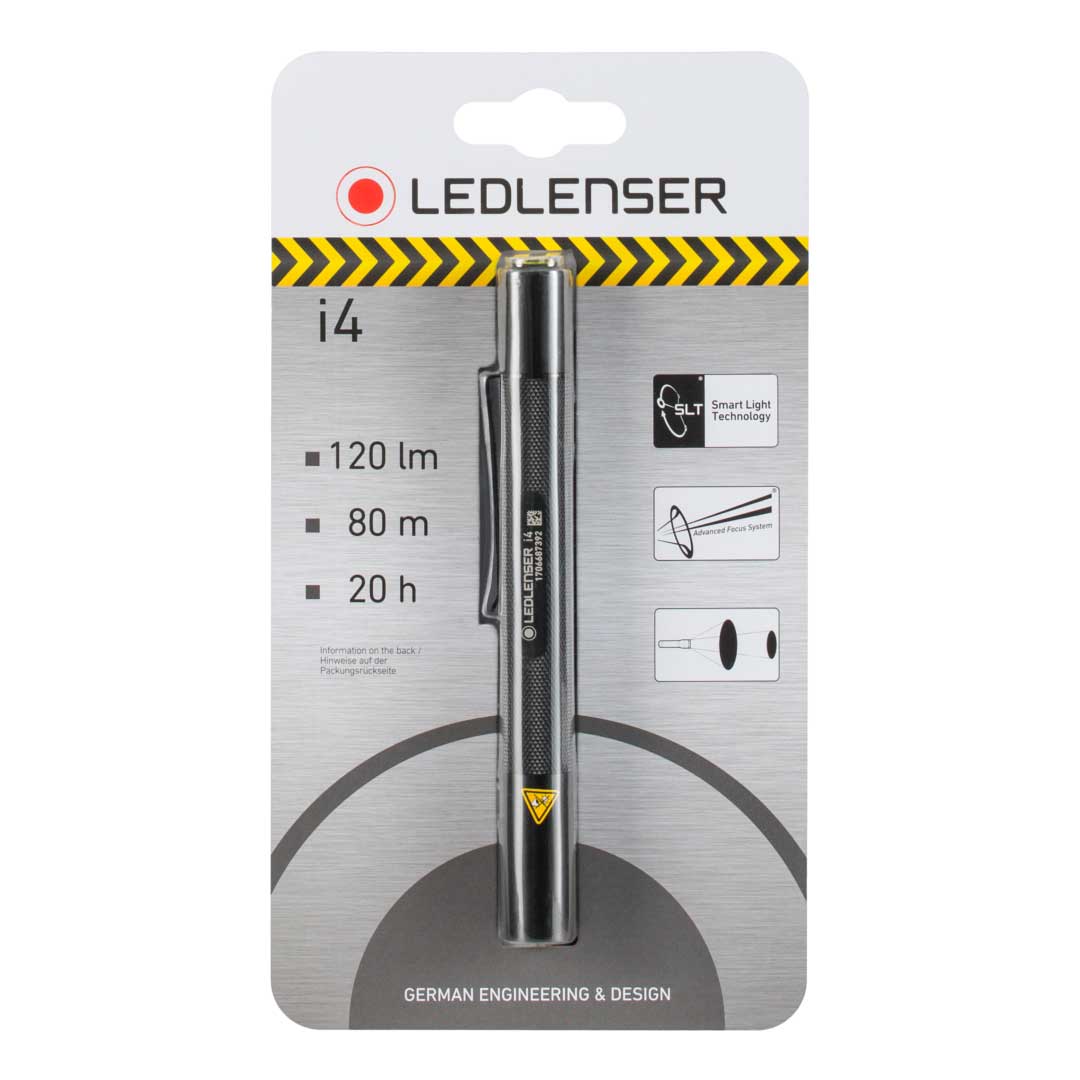

The battery-operated Ledlenser i4 penlight is only slightly larger than a pen
With three micro-cells, the Ledlenser i4 achieves a good lighting performance of up to 80 meters beam distance and a luminous flux of up to 120 lumen. In the lowest setting, it lights for up to 20 hours. Like all penlights in the Ledlenser i-series, the i4 is fitted with the patented Advanced Focus System which enables infinite and precise focusing of the light cone.Features:
- Battery operated – Three ordinary AAA alkaline batteries are used
- Good lighting performance – Up to 80 meters beam distance with up to 20 lumens of luminous flux
- Long operational time – Up to 20 hours in the lowest setting
- Simple to operate – Quickly switch to the Power or Low Power mode, or switch off using the end cap switch
- From the homogeneous circle of close-range lighting (focused) to a sharply bundled long-distance beam (defocused) – the patented Advanced Focus System with reflector lens enables efficient, tailored lighting
- Fast-changing of the light cone with just one hand – Rapid Focus
- Protected against spray water – IPX4
- For a long lamp lifetime – Robust metal housing
