Description
CRI Series
Natural color rendering for quality assurance
Ledlenser’s CRI lamps are specifically designed to meet the needs of electricians, quality inspectors and industrial workers. CRI, or “Color Rendering Index”, describes the color rendering quality of a light source. On this scale the sun reaches the reference value of 100 which in our perception is considered to be “natural light”. The closer a light source gets to this value, the better the colour rendering and objects can be rendered absolutely naturally even in the deepest darkness. This makes the CRI lamps an irreplaceable companion for all those who always have to rely on their eyes.
High quality light requires more than a high lumen value. The color temperature sets the light apart and is much more important for many applications. The Natural Light Technology of the Ledlenser CRI series therefore produces neutral white light with a 4000 Kelvin color temperature and a color rendering index (CRI) of 90. This ensures true color rendering, even in the deep red color range. Without any blue cast and with a natural color saturation. Making it easy to distinguish colors and even assess welds, maps and legends easily. Incidentally, your eyes will not get tired quickly – even after using a CRI light for an extended period of time.
i4 CRI Datasheet
PACKAGING INFORMATION | |
|---|---|
Type of packaging | Sleeve Box |
Scope of delivery | 1 set of rechargeable batteries,
Charging base,
Pocket clip,
USB cable |
Item No. | 501955 |
Dimensions W x H x D [cm] | 19 x 7.1 x 7.1 |
Gross weight [g] | 265 |
TECHNICAL DATA | |
|---|---|
Length defocused [mm] | 146.1 |
Length focused [mm] | 150.4 |
Head diameter [mm] | 14.7 |
Tube diameter [mm] | 14.7 |
Weight incl. batteries [g] | 60 |
Weight without batteries [g] | 35.5 |
Focus function | Yes |
Head material | Aluminum alloy |
Tube material | Aluminum alloy |
Optic | Plastic lense (PMMA) |
Cartridge | No |
POWER SUPPLY | |
|---|---|
Power source type | Rechargeable battery |
Battery quantity | 2 |
Battery type | NiMH |
Battery Technology | Micro (AAA) 1.2V |
Total battery voltage [V] | 2.4 |
Total battery capacity [mAh] | 900 |
Total battery energy [Wh] | 2.16 |
Rechargeable | Yes |
Charging time [min] | 240 |
Energy modes | Energy Saving |
Charging technology | Internal |
Usable batteries | AAA NiMH 1.5V |
FURTHER SPECIFICATIONS | |
|---|---|
IP class | IP54 |
Drop test (drop height) [m] | 1.2 |
Working temperature range [°C] | -20 to +40 |
LIGHT FUNCTIONS | |
|---|---|
Low Power, Power | |
LIGHT SOURCE | |
|---|---|
Amount LEDs | 1 |
LED type | Power LED |
Color | Warm-white |
Color temperature [K] | 6000 to 8000 |
Color rendering index (CRI) | 65 |
LIGHT VALUES | ||||
|---|---|---|---|---|
ANSI – Energy Saving | Boost | Power | Mid Power | Low Power |
Light output [lm] | 110 | 10 | ||
Beam distance [m] | 80 | 20 | ||
Run time [h] | 4 | 18 | ||
SWITCH | |
|---|---|
End Cap Switch | |
TECHNOLOGIES | |
|---|---|
Advanced Focus System, Natural Light, Dual Power Source | |

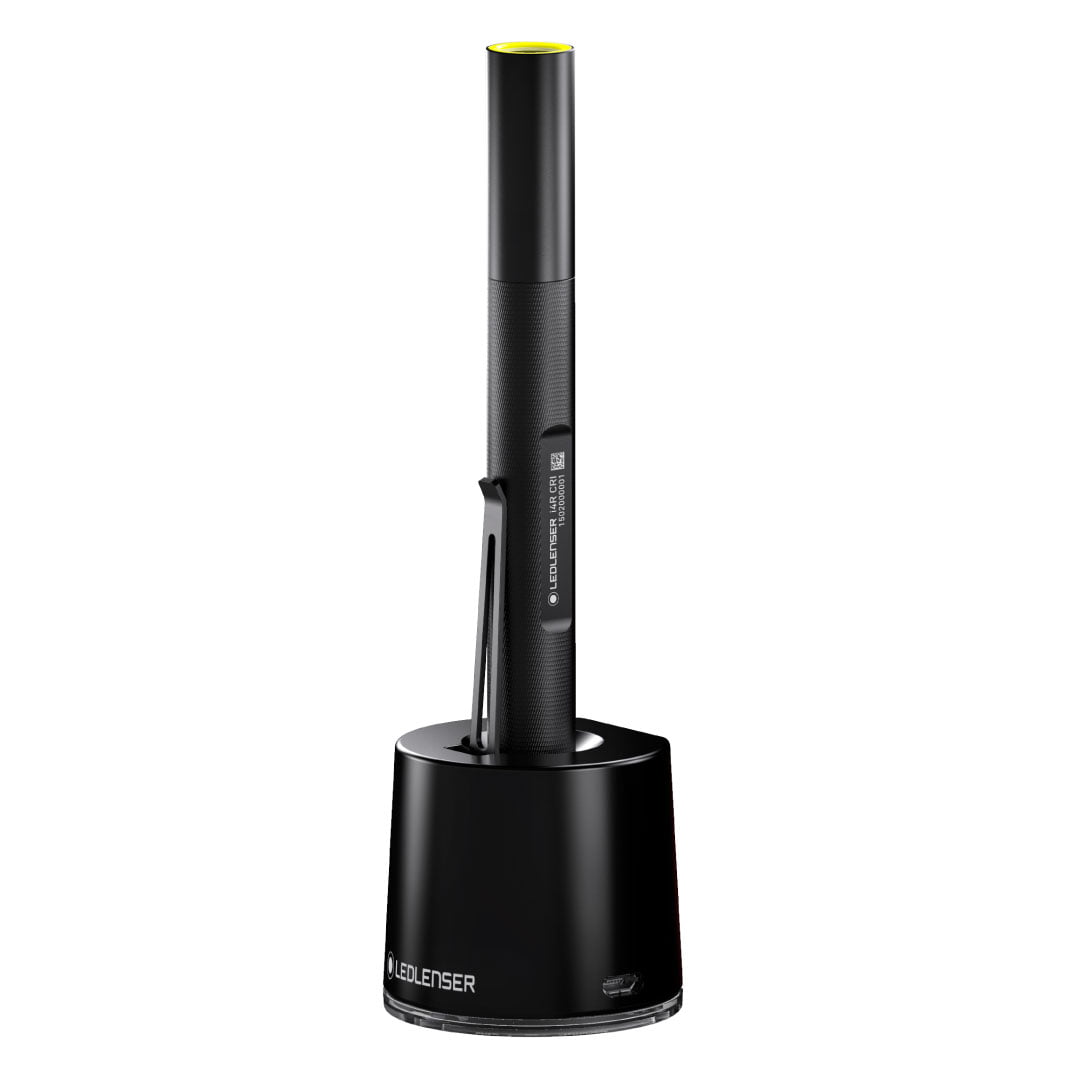

i4R CRI - Industrial range penlight with Ledlenser Natural Light
With a CRI rating of more than 90, the neutral white light is ideal for faithful rendering of colors and enhanced perception of contrasts. In addition, eye fatigue, due to working under artificial light for several hours at a time, is reduced. Thanks to the patented Advanced Focus System, the neutral white light distribution can be adjusted to the individual requirements of the task at hand.
- Natural Light technology ensures natural colors with a CRI of over 90 – ideal for quality control
- Ready-To-Go charging – Charging station with fixture options, and charging display which serves as a lamp mount at the same time
- From the homogeneous circle of close range lighting (defocused) to a sharply bundled long-distance beam (focused) – the patented Advanced Focus System with reflector lense enables efficient, tailored lighting
- Robust metal housing protects the lamp from water and dust: IP54
Simply Unbelievable.
Ledlenser are not just headlamps and flashlights. Our claim is to provide the right light to meet a wide variety of needs, with the sun as our role model. “Engineered in Germany” represents both the highest possible quality and the best possible manufacturing. Our driving factors are innovation and sustainability: We constantly continue to improving and developing our products, in particular, with a view to the environment and to natural resources. Ledlenser. The light. For industry and trade.
Industrial range penlight with Natural Light
With a CRI rating of more than 90, the neutral white light is ideal for faithful rendering of colors and enhanced perception of contrasts. In addition, eye fatigue, due to working under artificial light for several hours at a time, is reduced. Thanks to the patented Advanced Focus System, the neutral white light distribution can be adjusted to the individual requirements of the task at hand.
- Natural Light technology ensures natural colors with a CRI of over 90 – ideal for quality control
- Ready-To-Go charging – Charging station with fixture options, and charging display which serves as a lamp mount at the same time
- From the homogeneous circle of close range lighting (defocused) to a sharply bundled long-distance beam (focused) – the patented Advanced Focus System with reflector lense enables efficient, tailored lighting
- Robust metal housing protects the lamp from water and dust: IP54
As natural as daylight
For everyone who wants better quality control: i9 CRI’s Natural Light shows colors just as they appear in daylight. This allows you to inspect welds and electrical connections with absolute accuracy – even in dark surroundings. And if you want to take an even closer look, our Rapid Focus technology lets you focus the light cone with just one hand. So you can see everything at a glance – in true color.
- Professional, premium-quality torch with natural color rendering
- Rapid beam adjustment thanks to patented Advanced Focus System
- Rapid Focus allows for easy operation with just one hand
- Impressive beam distance and up to 25 hours of operating time
- Natural Light technology ensures natural colors with a CRI of over 90 – ideal for quality control
Natural light, hands-free.
Ledlenser’s first i-series headlamp with Natural Light offers true colours – and true freedom. Because it frees up your hands when working in dark surroundings – and thanks to its minimal weight and maximal wearing comfort, you’ll probably forget you’re even wearing it. So that you don’t forget to charge your iH7R as well, we added a handy three-level charging indicator. The answer for everyone who likes using their heads when working in the dark.
LEDLENSER FLASHLIGHT
I SERIES
i4
- Max 120 lm
- Max 80 m
- Max 20 h
- Non-Rechargeable
- IPX4
- 140 mm
- 55 g
- 2x AAA
- 65 CRI
- Color Temperature
6000-8000K - warranty card, warnings, quick user guide, mini catalog, 1 set of batteries, pocket clip
- Advanced Focus System, Rapid Focus, Smart Light Technology
Only 1 left in stock
i4R
- Max 120 lm
- Max 80 m
- Max 18 h
- Rechargeable
- IP54
- 146 mm
- 60 g
- Li-ion
- 65 CRI
- Color Temperature
6000-8000K - 1 set of rechargeable batteries, Charging base, Pocket clip, USB cable
- Advanced Focus System, Dual Power Source
In stock
i7R
- Max 220 lm
- Max 180 m
- Max 30 h
- Rechargeable
- IPX4
- 130 mm
- 175 g
- NiMH
- 65 CRI
- Color Temperature
6000-8000K - 1 Set of Batteries, Belt Pouch, Lanyard, Charging Cable
- Advanced Focus System, Focus lock, Rapid Focus, Temperature Control System, Dual Power Source
Out of stock
i9R
- Max 400 lm
- Max 260 m
- Max 20 h
- Rechargeable
- IPX4
- 187 mm
- 330 g
- NiMH
- 70 CRI
- Color Temperature
6000-8000K - Lanyard,Quick User Guide, 1 set of Batteries, Pouch
- Advanced Focus System, Focus Lock, Rapid Focus, Temperature Control System
In stock
i4R CRI
- Max 110 lm
- Max 80 m
- Max 18 h
- Rechargeable
- IP54
- 146 mm
- 60 g
- 2x Nimh Battery
- 90 CRI
- Color Temperature
4200-4500K - 1 set of rechargeable batteries, Charging base, Pocket clip, USB cable
- Advanced Focus System, Natural Light, Dual Power Source
In stock
i9 CRI
- Max 300 lm
- Max 240 m
- Max 25 h
- Non-Rechargeable
- IPX4
- 187 mm
- 312 g
- 2x Baby (C) 1.5V
- 90 CRI
- Color Temperature
3700K to 4400K - 1 set of batteries, Hand strap, Pouch, Roll protection
- Advanced Focus System, Focus lock, Rapid Focus, Natural Light
In stock
