Description
P2R Core Datasheet
PACKAGING INFORMATION | |
|---|---|
Type of packaging | Box |
Scope of delivery | 1 set of rechargeable batteries, Pocket clip, USB cable |
Item No. | 502176 |
Dimensions W x H x D [cm] | 14.5 x 8.5 x 8.5 |
Gross weight [g] | 180 |
TECHNICAL DATA | |
|---|---|
Length defocused [mm] | 103 |
Length focused [mm] | 108 |
Head diameter [mm] | 15 |
Tube diameter [mm] | 15 |
Weight incl. batteries [g] | 36 |
Weight without batteries [g] | 27 |
Focus function | Yes |
Head material | Aluminum alloy |
Tube material | Aluminum alloy |
Optic | Plastic lense (PMMA) |
Cartridge | No |
POWER SUPPLY | |
|---|---|
Power source type | Rechargeable battery |
Battery quantity | 1 |
Battery type | Li-ion |
Battery replaceable | Yes |
Total battery voltage [V] | 3.7 |
Total battery capacity [mAh] | 200 |
Total battery energy [Wh] | 0.74 |
Rechargeable | Yes |
Charging time [min] | 150 |
Energy modes | Energy Saving |
FURTHER SPECIFICATIONS | |
|---|---|
IP class | IP54 |
Drop test (drop height) [m] | 2 |
Working temperature range [°C] | -20 to +40 |
LIGHT FUNCTIONS | |
|---|---|
Low Power, Mid Power, Power | |
LIGHT SOURCE | |
|---|---|
Amount LEDs | 1 |
LED type | Power LED |
Color | White |
Color temperature [K] | 6000 to 7500 |
Color rendering index (CRI) | 70 |
LIGHT VALUES | ||||
|---|---|---|---|---|
ANSI – Constant Light | Boost | Power | Mid Power | Low Power |
Light output [lm] | 120 | 50 | 15 | |
Beam distance [m] | 65 | 45 | 15 | |
Run time [h] | 0.5 | 1 | 5 | |
SWITCH | |
|---|---|
End Cap Switch | |
TECHNOLOGIES | |
|---|---|
Advanced Focus System | |

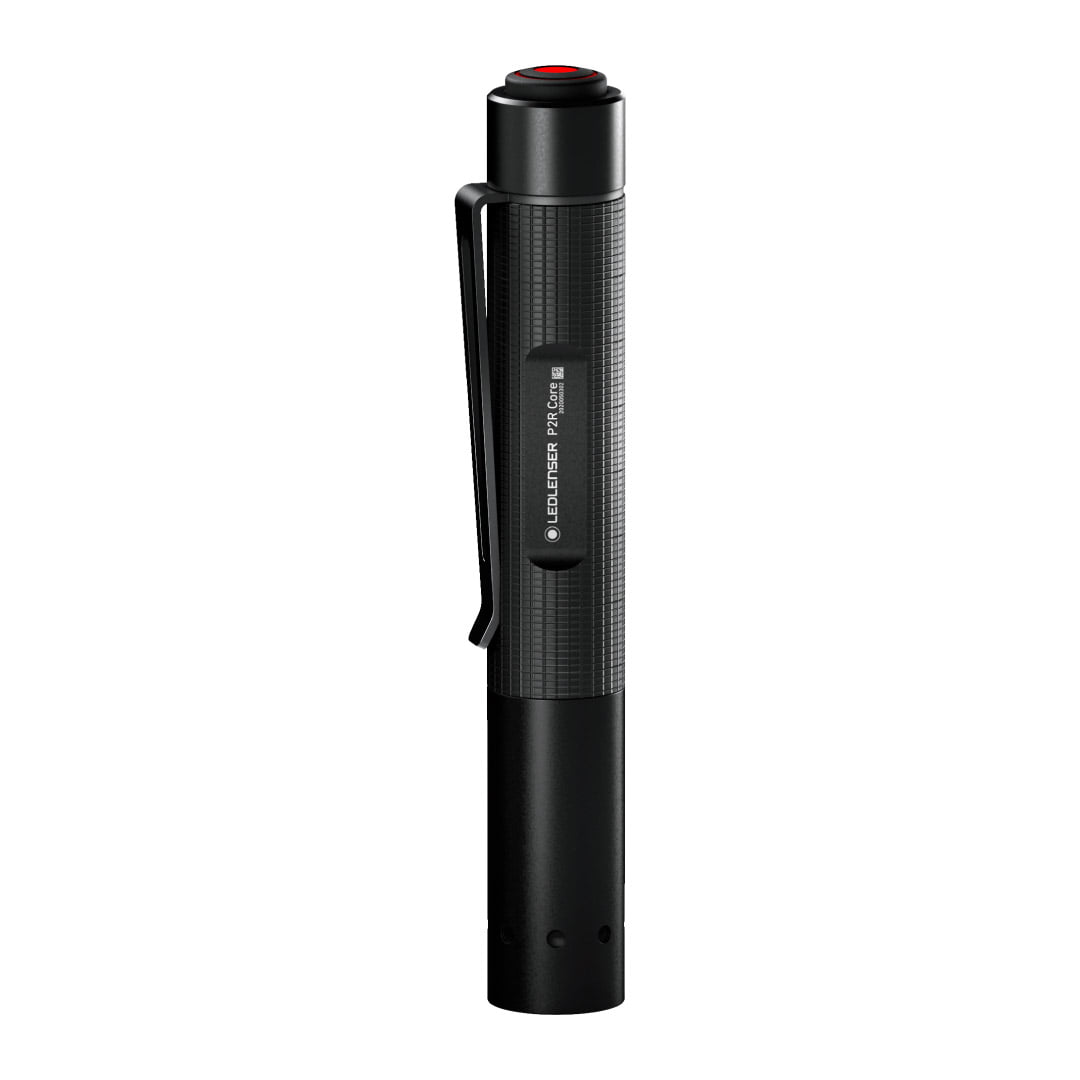

P2R Core - The smallest and lightest P-series lamp offers significant light output in a compact housing.
With a clip, the pen light can be easily attached to the shirt or trouser pocket and is always ready for use. The P2R Core comes with rechargeable battery, Endcap Switch and the Ledlenser patented3 Advanced Focus System.
- Ultracompact pen light – 36 g and 103 mm (defocused)
- Outstanding Ledlenser light quality brightness, beam range and run time are ideally matched to the energy source
- Advanced Focus System for efficient, tailormade light in the focused and defocused state
- Practical clip to attach to shirt or trouser pocket
- Eco-friendly, rechargeable battery (via micro-USB port)
Light Functions
- Power – high light output for every situation
- Mid Power – medium light output for every situation
- Low Power – economical light for long battery life, glare-free reading and working
Special functions
- Advanced Focus System (AFS) – for efficient, precise flood and spot lighting
- Ultra-compact flashlight – only 36 g and 103 mm (defocused)
- Eco-friendly – rechargeable battery (via micro-USB port)
- Outstanding Ledlenser light quality – brightness, beam range and run time are ideally matched to the energy source
Core Series - For home and life.
The robust and reliable Ledlenser P-series flashlights offer great performance in a stylish design. Externally reduced to the essentials, they are packed with many useful technologies, such as the patented Advanced Focus System or the advanced Smart Light Technology for individual programmability. Almost all products are protected against dust and water thanks to the innovative Flex Sealing Technology. The new P-series is also the first Ledlenser range of flashlights designed for all user fields. The products of the Core, Work, and Signature range have different designs and are therefore tailor-made for different target groups.
Our Core collection is at the heart of our new P-series lights. Perfect for everyday use in home and garden, for crafts and industry, but also for many recreational applications. The lamps of the Core range offer innovative technologies and functions as well as great performance for the price.
Ledlenser Flashlight
Core Series
P2R
Core RM138.00
- Max 120 lm
- Max 65 m
- Max 5 h
- Rechargeable
- IP54
- 103 mm
- 36 g
- Li-ion
- 70 CRI
- 1 battery set, pocket clip, USB charging cable
- Advanced Focus System, Energy Saving
Learn More
Ready Stock
P4R
Core RM208.00
- Max 200 lm
- Max 90 m
- Max 25 h
- Rechargeable
- IP54
- 150 mm
- 55 g
- Li-ion
- 70 CRI
- 1 battery set, pocket clip, USB charging cable
- Advanced Focus System, Energy Saving
Learn More
Ready Stock
