Description
Work-Series
P6R Work Datasheet
PACKAGING INFORMATION | |
|---|---|
Type of packaging | Box |
Scope of delivery | 1 set of rechargeable batteries, Charging station, Hand strap, Intelligent clip, Magnetic charging cable, Pouch, USB power adapter |
Item No. | 502186 |
Dimensions W x H x D [cm] | 14.5 x 21 x 8.5 |
Gross weight [g] | 623.5 |
TECHNICAL DATA | |
|---|---|
Length defocused [mm] | 163 |
Length focused [mm] | 169 |
Head diameter [mm] | 45 |
Tube diameter [mm] | 25 |
Weight incl. batteries [g] | 187 |
Weight without batteries [g] | 140 |
Focus function | Yes |
Head material | Other plastics |
Tube material | Aluminum alloy |
Optic | Plastic lense (PMMA) |
Cartridge | No |
POWER SUPPLY | |
|---|---|
Power source type | Rechargeable battery |
Battery quantity | 1 |
Battery type | Li-ion |
Battery replaceable | Yes |
Total battery voltage [V] | 3.63 |
Total battery capacity [mAh] | 3000 |
Total battery energy [Wh] | 10.89 |
Rechargeable | Yes |
Charging time [min] | 225 |
Energy modes | Constant Light |
Energy status indicator | Battery Indicator,
Charge Indicator,
Low Battery Warning |
FURTHER SPECIFICATIONS | |
|---|---|
IP class | IP68 |
Drop test (drop height) [m] | 3 |
Maximum operating depth [m] | 1.5 |
Working temperature range [°C] | -20 to +40 |
LIGHT FUNCTIONS | |
|---|---|
Blink, Boost, Low Power, Mid Power, Power, Position, S.O.S., Strobe | |
LIGHT SOURCE | ||
|---|---|---|
Amount LEDs | 1 | 1 |
LED type | Xtreme LED | Low Power LED |
Color | White | White |
Color temperature [K] | 3700 to 4400 | 5300 to 7500 |
Color rendering index (CRI) | 90 | 75 |
LIGHT VALUES – Main | ||||
|---|---|---|---|---|
ANSI – Constant Light | Boost | Power | Mid Power | Low Power |
Light output [lm] | 850 | 700 | 300 | 15 |
Beam distance [m] | 230 | 190 | 115 | 20 |
Run time [h] | 1.5 | 2.5 | 45 | |
LIGHT VALUES – Alternate | ||||
|---|---|---|---|---|
ANSI – Constant Light | Boost | Power | Mid Power | Low Power |
Light output [lm] | 2 | |||
SWITCH | |
|---|---|
Front Switch | |
FEATURES | |
|---|---|
Dimmable , Transportation lock , Flicker Free, Memory Function, Back-
Up Light, Chemical Resistant | |
TECHNOLOGIES | |
|---|---|
Advanced Focus System, Smart Light Technology, Magnetic Charge System, Emergency Light, Temperature Control System, Natural Light, Flex Sealing Technology, Multi-Core Optics | |

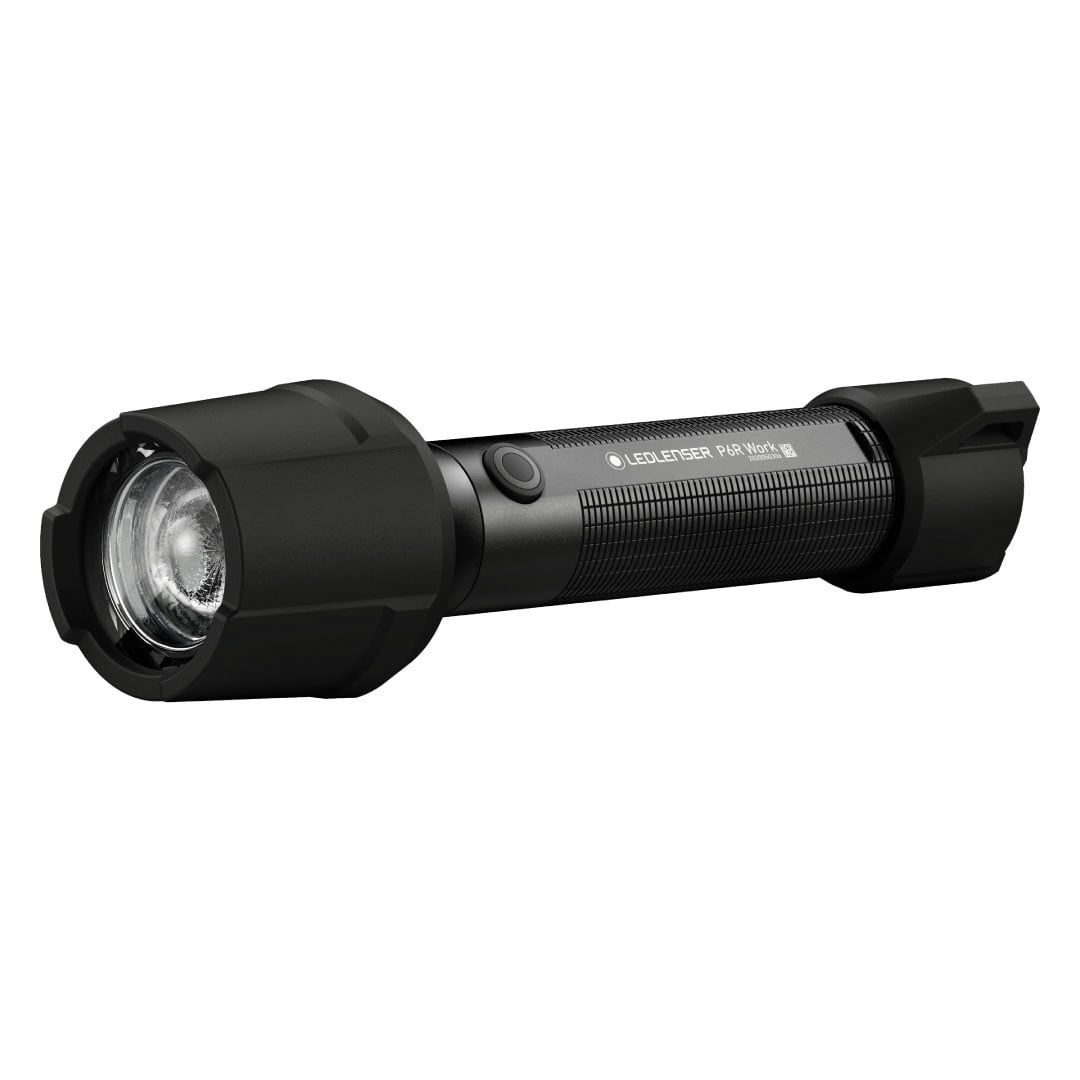

P6R Work - Every craftsman has his favorite tool.
With the P6R Work we provide for pretty strong competition in the toolbox.
Outstanding dust and water protection (IP68), rubber covers, chemical resistance and a protective glass ensure high durability and longevity. It shines with neutral white light (4000 Kelvin) and has Natural Light with CRI 90 for a particularly natural color reproduction. A diffused, cool white auxiliary light on the side and a charging station are other professional features that make the powerful P6R Work a favorite in no time. The Ledlenser patented Advanced Focus System, custom light functions and the practical Magnetic Charge System round off the impressive package.
- Powerful working flashlight with custom light functions and natural color rendering (CRI 90)
- Rubber covers on the lamp head and end cap protect against impact and offer increased grip; lens shield protects the lens from impact and dirt
- White auxiliary light on the side of the housing for diffuse illumination of the near range
- Advanced Focus System for efficient, precise flood and spot lighting
- Robust charging station also is suitable for mounting in the vehicle or on the Ledlenser 5-Station Charging Panel
Light Functions
- Power – high light output for every situation
- Mid Power – medium light output for every situation
- Low Power – economical light for long battery life, glare-free reading and working
- Boost – short-duration maximum power for more brightness
- Blink – automatic emission of light impulses at regular intervals
- Position – two short pulses of light, repeated three times, to alert others of your location
- S.O.S – the distress signal the light emits is SOS in Morse code (3 x short, 3 x long, 3 x short)
- Strobe – flashes of light with a confusing blinding effect for, among other things, self-defense
Special functions
- White auxiliary light – on the side of the housing for diffuse illumination of the near range
- Powerful working flashlight – with custom light functions and natural colour rendering (CRI 90)
- Advanced Focus System (AFS) – for efficient, precise flood and spot lighting
- Rubber covers – on the lamp head and end cap protect against impact and offer increased grip; lens shield protects the lens from impact and dirt
- Flex Seal Technology – offers high protection against dust and water (IP68)
IP-Class
- IP68 – Protection for submersion in water up to 1.5m deep for up to 30 mins.
Work Series - Lighting for professionals at work.
These extra robust, handy, chemical-resistant models are suitable for various work environments thanks to constant and color-neutral light.
Tailored for Work and Professional use in tough environments where you need additional protection and a more robust lighting product. The work series has tailored technologies + accessories which will provide additional safety while on the job including our “Emergency Light Mode” to ensure you always have spare light on hand.
The robust and reliable Ledlenser P-Series flashlights offer great performance in a stylish design. Externally reduced to the essentials, they are packed with many useful technologies, such as the patented3 Advanced Focus System or the advanced Smart Light Technology for individual programmability. Almost all products are protected against dust and water thanks to the innovative Flex Sealing Technology. The new P series is also the first Ledlenser range of flashlights designed for all user fields. The products of the Core, Work, and Signature series have different designs and are therefore tailor-made for different target groups.
Our extra-tough Work range is engineered for craftsmen, construction and industrial workers – just anybody in need of portable lighting in a professional environment. The Work flashlights provide high-quality, constant, enduring light and convince with specific details and functions. In addition to the features of our Core models, most of the lamps offer non-slip, high-grip protective casing to prevent damage during falls or impacts. The extra lens protector is shock-proof, protects against chemicals and can easily be replaced if needed. In addition, all materials of the lamps are resistant to chemical influences such as oil, diesel, brake fluid,
solvents and others.
solvents and others.
