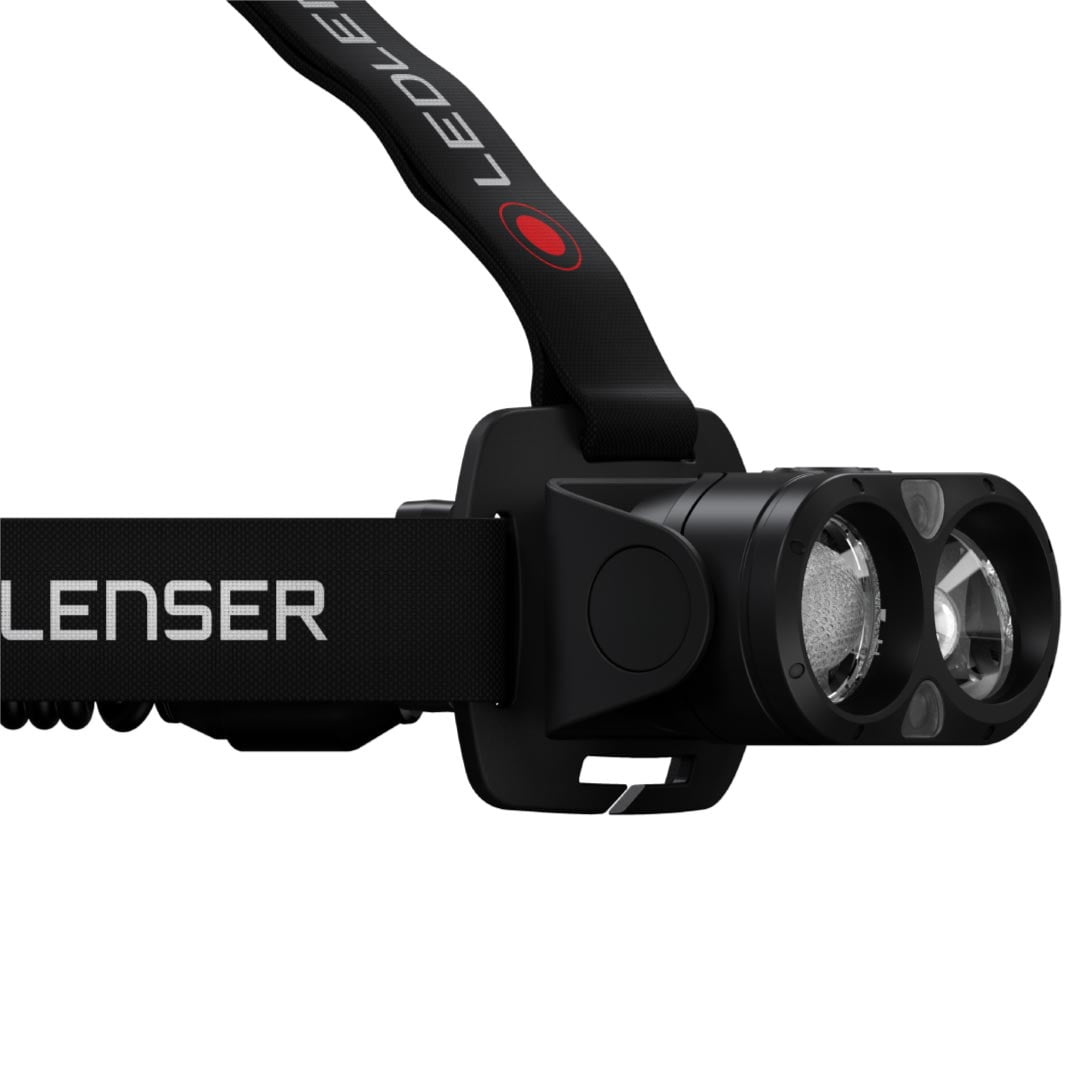

LEDLENSER H19R Core

RM998.00

  • Powerful premium headlamp with up to 3500 lumens
  • Fusion Beam: individually adjustable flood and spot light provide excellent illumination
  • Three-way switch offers intuitive light handling
  • Red light to preserve night vision
  • Superior protection against dust and water (IP68)

10 in stock

Description

H19R Core
Headlamp Datasheet

PACKAGING INFORMATION
Type of packaging
Box
Scope of delivery
1 set of rechargeable batteries, Magnetic charging cable
Item No.
502124
Dimensions W x H x D [cm]
14.5 x 12 x 8.5
Gross weight [g]
587
TECHNICAL DATA
Head diameter [mm]
68
Weight incl. batteries [g]
374
Weight without batteries [g]
224
Focus function
No
Head material
PC
Tube material
Aluminum alloy
Optic
Plastic lense (PMMA)
Headband material
Elastic fabric
Headband type
Side overhead headband
Head movement type
Stepless movement
Head movement angle [°]
95
Headband specifications
Detachable, Elastic, Washable
POWER SUPPLY
Power source type
Rechargeable battery
Battery quantity
1
Battery type
Li-ion
Battery replaceable
Yes
Total battery voltage [V]
7.4
Total battery capacity [mAh]
4800
Total battery energy [Wh]
35.52
Rechargeable
Yes
Charging time [min]
330
Energy modes
Constant Light
Energy status indicator
Battery Indicator, Charge Indicator, Low Battery Warning
FURTHER SPECIFICATIONS
IP class
IP68
Drop test (drop height) [m]
1.5
Working temperature range [°C]
-20 to +40
LIGHT FUNCTIONS
Boost, Power, Mid Power, Low Power
LIGHT SOURCE
Amount LEDs
2
LED type
Xtreme LED
Color
White
Color temperature [K]
6000 to 7500
Color rendering index (CRI)
70
LIGHT VALUES
ANSI – Constant Light
Boost
Power
Mid Power
Low Power
Light output [lm]
3500
1600
800
200
Beam distance [m]
300
230
150
80
Run time [h]
4
7
20
SWITCH
Front Switch
FEATURES
Dimmable, Red Light, Transportation lock, Flicker Free, Memory Function, Back-Up Light
TECHNOLOGIES
Cooling Technology, Temperature Control System, Magnetic Charge System, Multi-Core Optics, Fusion Beam

The H19R Core is the ultimate in portable light innovation and engineering.

The unique Fusion Beam light pattern combines the power of two lenses and enables individually controllable flood and spotlight with intuitive operation. The H19R Core features a red light to preserve night vision, a swiveling lamp head and removable battery with magnetic charging. This headlamp is well protected against dust and water, a perfect match for any challenge.

  • Extremely powerful headlamp with our patented Advanced Focus System

  • Intuitive operation and stepless dimming with the Wheel Switch

  • 120 degrees of lamp head rotation

  • Flex Sealing Technology provides superior protection against dust and water (IP67)

  • Ledlenser Connecting System: new standardized interface that offers connection to various accessories

Light Functions

  • Power – high light output for every situation
  • Mid Power – medium light output for every situation
  • Low Power – economical light for long battery life, glare-free reading and working
  • Boost – short-duration maximum power for more brightness

Switches

  • Multifunctional Switch – multi-function switch for quick and easy control of individual light functions

Special functions

  • Fusion Beam – individually adjustable flood and spot light provide excellent illumination
  • Red Light – to preserve night vision
  • 95 Degrees – of lamp head rotation
  • Three-way Switch – offers intuitive light handling

IP-Class

  • IP68 – Protection for submersion in water up to 1.5m deep for up to 30 mins.

The Core Series headlamps are the foundation of the H-series.

Designed for a wide range of applications for everyday or on the job use. The Ledlenser H-series offers best-in-class headlamps with reliable lighting that can be used in many applications.

The H-series lamps are indispensable for a broad range of users in private and professional environments. The high product quality, the intuitive operation, the ergonomic design and last but not least the unmatched light pattern have led this series to great success. With every product in the H-series being completely redesigned with forward-thinking new technologies and features, Ledlenser has extensively raised the bar with this collection of lights. The new H-series is also the first Ledlenser range of flashlights designed for all user fields. The products of the Core, Work, and Signature range have different designs and features and are therefore tailormade for different target groups.

The Core headlamps are the foundation of the H-series. They can be operated intuitively and offer stepless dimming via the Wheel Switch on the lamp head (except H19R Core). In addition, the headlamps provide an improved constant luminous flux so that the selected brightness can be maintained over a long period of time. Thanks to the Flex Sealing Technology, all models achieve extreme dust and water protection (at least IP67). These and many other features as well as the extensive range of accessories that can be used universally with the Ledlenser Connecting System, make the Core headlamps of the H-series ideal all-rounders for a variety of uses and activities.

Ledlenser Headlamp

Ledlenser Headlamp H5 Core Image

H5

Core
RM 248
  • 350 lm
  • 160 m
  • 20 h
  • Non-Rechargeable
  • IP67
  • 178 g
  • 2x AA Alkaline
Ledlenser Headlamp H5R Core Image

H5R

Core
RM 348
  • 500 lm
  • 200 m
  • 30 h
  • Rechargeable
  • IP67
  • 167 g
  • 1800 mAh
Entry level
Ledlenser-headlamp-h7r-core-001

H7R

Core
RM 448
  • 1000 lm
  • 250 m
  • 65 h
  • Rechargeable
  • IP67
  • 259 g
  • 4800 mAh
Popular
Ledlenser Headlamp H15R Core Image

H15R

Core
RM 798
  • 2500 lm
  • 250 m
  • 80 h
  • Rechargeable
  • IP67
  • 380 g
  • 4800 mAh
Advanced
Ledlenser Headlamp H19R Core Image

H19R

Core
RM 998
  • 3500 lm
  • 300 m
  • 20 h
  • Rechargeable
  • IP68
  • 374 g
  • 4800 mAh

Additional information

Weight 0.6 kg
Dimensions 15 × 12 × 9 cm
