Description
H5 Core
Headlamp Datasheet
PACKAGING INFORMATION | |
|---|---|
Type of packaging | Box |
Scope of delivery | 1 set of batteries |
Item No. | 502193 |
Dimensions W x H x D [cm] | 14.5 x 12 x 8.5 |
Gross weight [g] | 329 |
TECHNICAL DATA | |
|---|---|
Head diameter [mm] | 32 |
Weight incl. batteries [g] | 178 |
Weight without batteries [g] | 131 |
Focus function | Yes |
Head material | PC |
Tube material | Aluminum alloy |
Optic | Plastic lense (PMMA) |
Headband material | Elastic fabric |
Headband type | Side headband |
Head movement type | Stepless movement |
Head movement angle [°] | 160 |
Headband specifications | Detachable, Elastic, Washable |
POWER SUPPLY | |
|---|---|
Power source type | Battery |
Battery quantity | 2 |
Battery type | Alkaline |
Rechargeable | No |
Energy modes | Energy Saving |
Energy status indicator | Low Battery Warning |
Usable batteries | AA Alkaline 1.5V, AA NiMH 1.2V |
FURTHER SPECIFICATIONS | |
|---|---|
IP class | IP67 |
Drop test (drop height) [m] | 1.5 |
Working temperature range [°C] | -20 to +40 |
LIGHT FUNCTIONS | |
|---|---|
Boost, Power, Low Power | |
LIGHT SOURCE | |
|---|---|
Amount LEDs | 1 |
LED type | High Power LED |
Color | White |
Color temperature [K] | 6000 to 7500 |
Color rendering index (CRI) | 70 |
LIGHT VALUES | ||||
|---|---|---|---|---|
ANSI – Energy Saving | Boost | Power | Mid Power | Low Power |
Light output [lm] | 350 | 200 | 15 | |
Beam distance [m] | 160 | 120 | 30 | |
Run time [h] | 2 | 20 | ||
SWITCH | |
|---|---|
Multifunctional Switch
| |
FEATURES | |
|---|---|
Dimmable, Transportation lock | |
TECHNOLOGIES | |
|---|---|
Advanced Focus System, Flex Sealing Technology, Cooling Technology | |

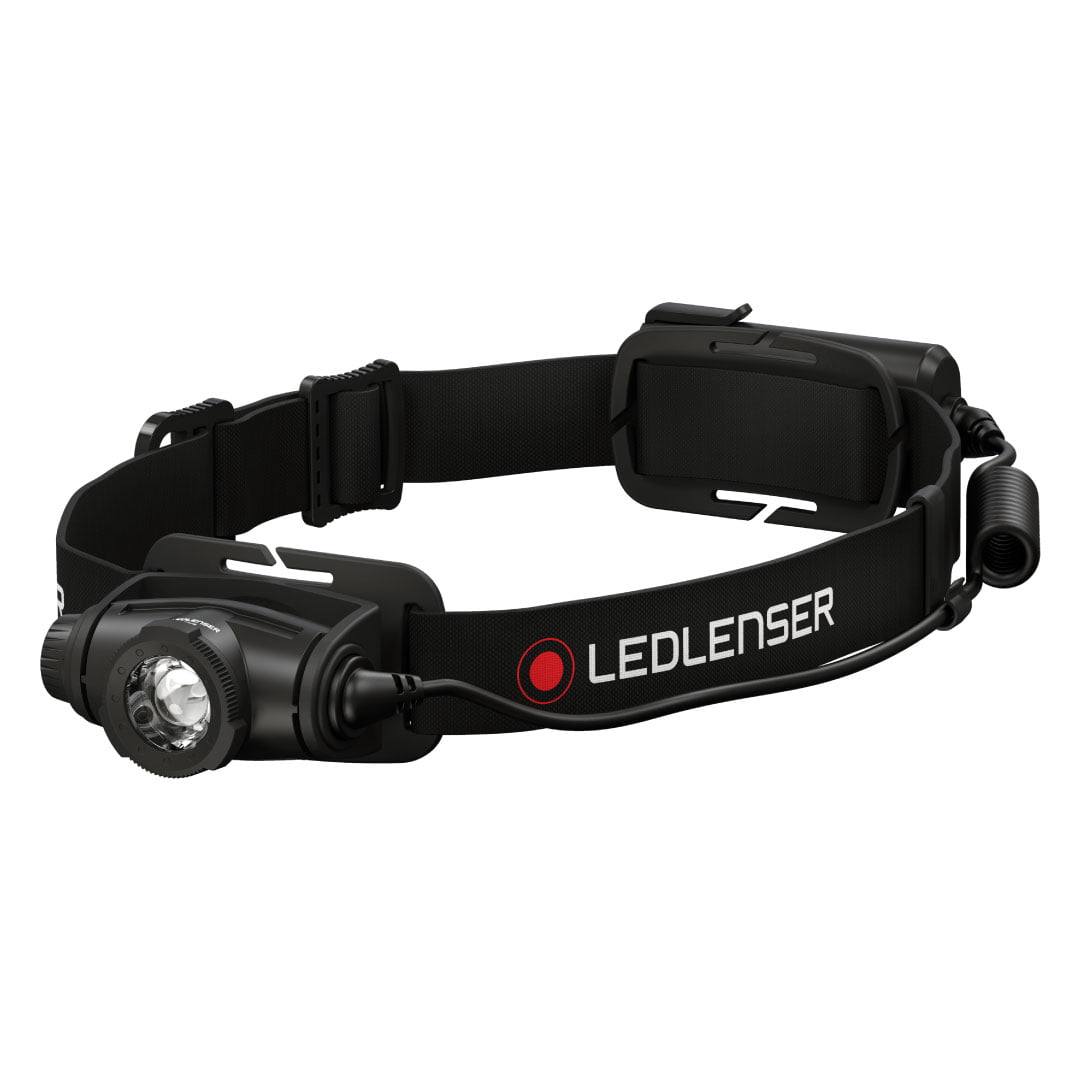

The H5 Core is a compact, easy-to-use headlamp featuring a focusable light beam that has continuous dimmability.
Thanks to 160-degree lamp head rotation, the H5 Core is ready for many everyday tasks. Additionally, the H5 Core features the Ledlenser Flex Sealing Technology, which provides extremely high protection against dust and water (IP67).
This headlamp is compatible with AA or NiMH batteries.
Patented Advanced Focus System for efficient, precise flood and spot lighting
Intuitive operation and stepless dimming with the Wheel Switch
160 degrees of lamp head rotation
Flex Sealing Technology provides superior protection against dust and water (IP67)
Ledlenser Connecting System: new standardized interface that offers connection to various accessories
Light Functions
- Power – high light output for every situation
- Low Power – economical light for long battery life, glare-free reading and working
- Boost – short-duration maximum power for more brightness
Switches
- Multifunctional Switch – multi-function switch for quick and easy control of individual light functions
Special functions
- Advanced Focus System (AFS) – for efficient, precise flood and spot lighting
- Intuitive Operation – step-less dimming with the Wheel Switch
- 160 Degrees – of lamp head rotation
- Ledlenser Connector – new standardised interface that offers connection to various accessories
IP-Class
- IP67 – Protection for submersion in water up to 1m deep for up to 30 mins.
The Core Series headlamps are the foundation of the H-series.
Designed for a wide range of applications for everyday or on the job use. The Ledlenser H-series offers best-in-class headlamps with reliable lighting that can be used in many applications.
The H-series lamps are indispensable for a broad range of users in private and professional environments. The high product quality, the intuitive operation, the ergonomic design and last but not least the unmatched light pattern have led this series to great success. With every product in the H-series being completely redesigned with forward-thinking new technologies and features, Ledlenser has extensively raised the bar with this collection of lights. The new H-series is also the first Ledlenser range of flashlights designed for all user fields. The products of the Core, Work, and Signature range have different designs and features and are therefore tailormade for different target groups.
Ledlenser Headlamp
