Description
H5R Core
Headlamp Datasheet
PACKAGING INFORMATION | |
|---|---|
Type of packaging | Box |
Scope of delivery | 1 set of rechargeable batteries,
Magnetic charging cable
|
Item No. | 502121 |
Dimensions W x H x D [cm] | 14.5 x 12 x 8.5 |
Gross weight [g] | 334 |
TECHNICAL DATA | |
|---|---|
Head diameter [mm] | 32 |
Weight incl. batteries [g] | 167 |
Weight without batteries [g] | 133 |
Focus function | Yes |
Head material | PC |
Tube material | Aluminum alloy |
Optic | Plastic lense (PMMA) |
Headband material | Elastic fabric |
Headband type | Side headband |
Head movement type | Stepless movement |
Head movement angle [°] | 160 |
Headband specifications | Detachable, Elastic, Washable |
POWER SUPPLY | |
|---|---|
Power source type | Rechargeable battery |
Battery quantity | 1 |
Battery type | Li-ion |
Battery replaceable | No |
Total battery voltage [V] | 3.7 |
Total battery capacity [mAh] | 1800 |
Total battery energy [Wh] | 6.66 |
Rechargeable | Yes |
Charging time [min] | 210 |
Energy modes | Constant Light |
Energy status indicator | Battery Indicator, Charge Indicator, Low Battery Warning |
FURTHER SPECIFICATIONS | |
|---|---|
IP class | IP67 |
Drop test (drop height) [m] | 1.5 |
Working temperature range [°C] | -20 to +40 |
LIGHT FUNCTIONS | |
|---|---|
Boost, Power, Low Power | |
LIGHT SOURCE | |
|---|---|
Amount LEDs | 1 |
LED type | High Power LED |
Color | White |
Color temperature [K] | 6000 to 7500 |
Color rendering index (CRI) | 70 |
LIGHT VALUES | ||||
|---|---|---|---|---|
ANSI – Energy Saving | Boost | Power | Mid Power | Low Power |
Light output [lm] | 500 | 300 | 15 | |
Beam distance [m] | 200 | 150 | 30 | |
Run time [h] | 2 | 50 | ||
SWITCH | |
|---|---|
Multifunctional Switch
| |
FEATURES | |
|---|---|
Dimmable, Transportation lock , Flicker Free, Memory Function, Back-Up Light | |
TECHNOLOGIES | |
|---|---|
Advanced Focus System, Magnetic Charge System, Temperature
Control System, Flex Sealing Technology, Cooling Technology | |

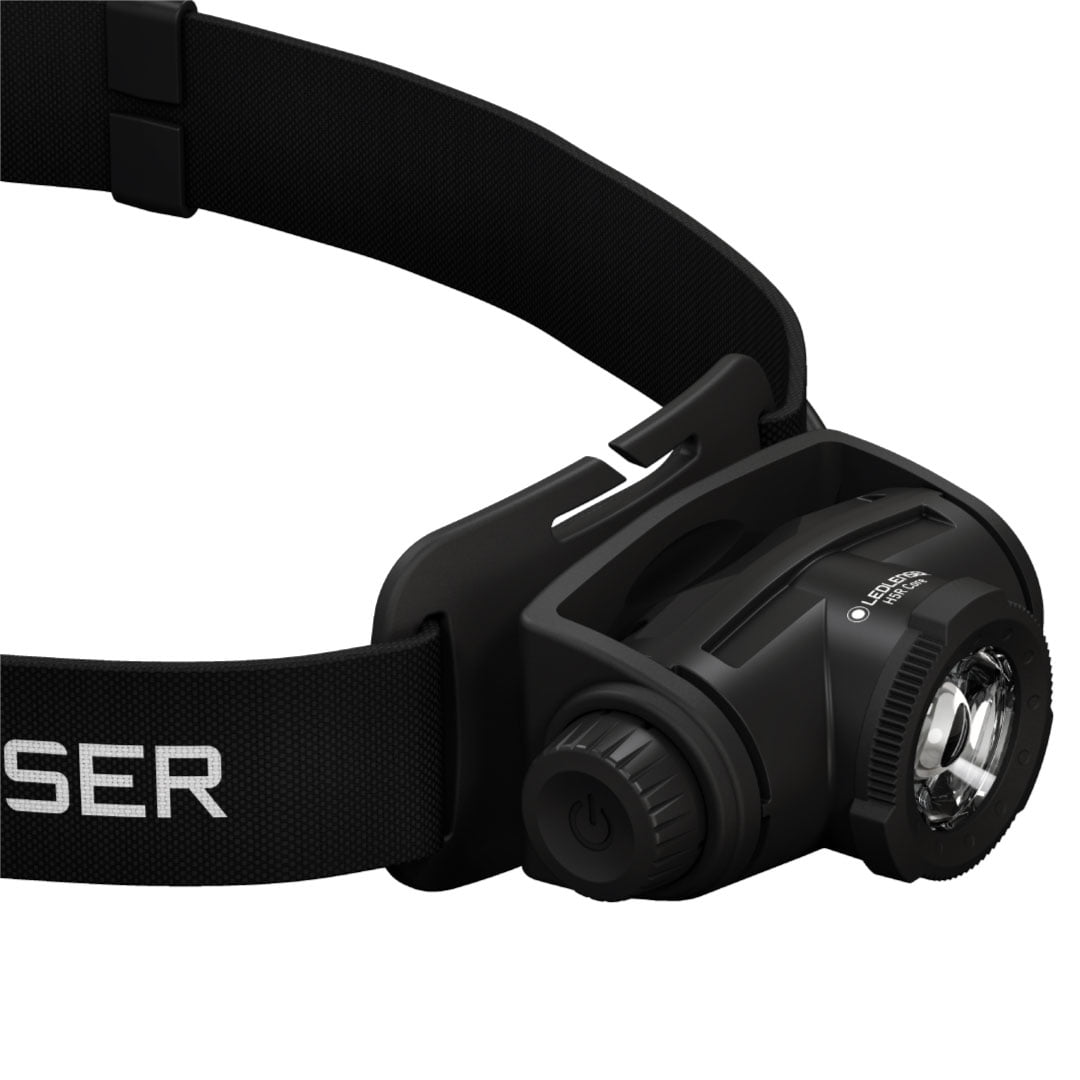

The H5R Core is a compact, yet powerful headlamp that is a convenient portable lighting solution which defies almost any weather condition.
This headlamp is practical and versatile, thanks to the Ledlenser patented³ Advanced Focus System, continuous dimmability and 160-degree lamp head rotation. The H5R Core can be charged easily with magnetic charging and features a battery status indicator, so you know when to power back up.
Patented Advanced Focus System for efficient, precise flood and spot lighting
Intuitive operation and stepless dimming with the Wheel Switch
160 degrees of lamp head rotation
Flex Sealing Technology provides superior protection against dust and water (IP67)
Convenient charging of the battery with the robust Magnetic Charge System
Light Functions
- Power – high light output for every situation
- Low Power – economical light for long battery life, glare-free reading and working
- Boost – short-duration maximum power for more brightness
Switches
- Multifunctional Switch – multi-function switch for quick and easy control of individual light functions
Special functions
- Advanced Focus System (AFS) – for efficient, precise flood and spot lighting
- Intuitive Operation – step-less dimming with the Wheel Switch
- 160 Degrees – of lamp head rotation
- Ledlenser Connector – new standardised interface that offers connection to various accessories
IP-Class
- IP67 – Protection for submersion in water up to 1m deep for up to 30 mins.
The Core Series headlamps are the foundation of the H-series.
Designed for a wide range of applications for everyday or on the job use. The Ledlenser H-series offers best-in-class headlamps with reliable lighting that can be used in many applications.
The H-series lamps are indispensable for a broad range of users in private and professional environments. The high product quality, the intuitive operation, the ergonomic design and last but not least the unmatched light pattern have led this series to great success. With every product in the H-series being completely redesigned with forward-thinking new technologies and features, Ledlenser has extensively raised the bar with this collection of lights. The new H-series is also the first Ledlenser range of flashlights designed for all user fields. The products of the Core, Work, and Signature range have different designs and features and are therefore tailormade for different target groups.
Ledlenser Headlamp
