Description
H7R Signature Datasheet
PACKAGING INFORMATION | |
|---|---|
Type of packaging | Soft Case |
Scope of delivery | 1 set of rechargeable batteries,
Extension cable,
Fixing clips,
GoPro accessories adapter,
Helmet connecting kit,
Hook-and-loop straps,
Magnetic charging cable,
Tripod connector,
USB power adapter,
Universal mounting bracket |
Item No. | 502197 |
Dimensions W x H x D [cm] | 25.7 x 18.3 x 11.8 |
Gross weight [g] | 802 |
TECHNICAL DATA | |
|---|---|
Head diameter [mm] | 41 |
Weight incl. batteries [g] | 259 |
Weight without batteries [g] | 188 |
Focus function | Yes |
Head material | PC |
Tube material | Aluminum alloy |
Optic | Plastic lense (PMMA) |
Headband material | Elastic fabric |
Headband type | Side overhead headband |
Head movement type | Stepless movement |
Head movement angle [°] | 130 |
Headband specifications | Detachable, Elastic, Washable, reflecting |
POWER SUPPLY | |
|---|---|
Power source type | Rechargeable battery |
Battery quantity | 1 |
Battery type | Li-ion |
Battery replaceable | Yes |
Total battery voltage [V] | 3.7 |
Total battery capacity [mAh] | 4800 |
Total battery energy [Wh] | 17.76 |
Rechargeable | Yes |
Charging time [min] | 210 |
Energy modes | Constant Light |
Energy status indicator | Battery Indicator,
Charge Indicator,
Low Battery Warning |
FURTHER SPECIFICATIONS | |
|---|---|
IP class | IP67 |
Drop test (drop height) [m] | 1.5 |
Working temperature range [°C] | -20 to +40 |
LIGHT FUNCTIONS | |
|---|---|
Boost, Power, Low Power, Strobe, Position, S.O.S., Blink | |
LIGHT SOURCE | |
|---|---|
Amount LEDs | 1 |
LED type | Xtreme LED |
Color | White |
Color temperature [K] | 6000 to 7500 |
Color rendering index (CRI) | 80 |
LIGHT VALUES | ||||
|---|---|---|---|---|
ANSI – Constant Light | Boost | Power | Mid Power | Low Power |
Light output [lm] | 1200 | 700 | 15 | |
Beam distance [m] | 260 | 220 | 25 | |
Run time [h] | 3.5 | 65 | ||
SWITCH | |
|---|---|
Multifunctional Switch | |
FEATURES | |
|---|---|
Bluetooth, Dimmable , Transportation lock , Flicker Free, Memory
Function, Backup Mode | |
TECHNOLOGIES | |
|---|---|
Advanced Focus System, Magnetic Charge System, Temperature
Control System, Flex Sealing Technology, Cooling Technology,
Emergency Light | |
Signature Series - The perfect light for the highest demands

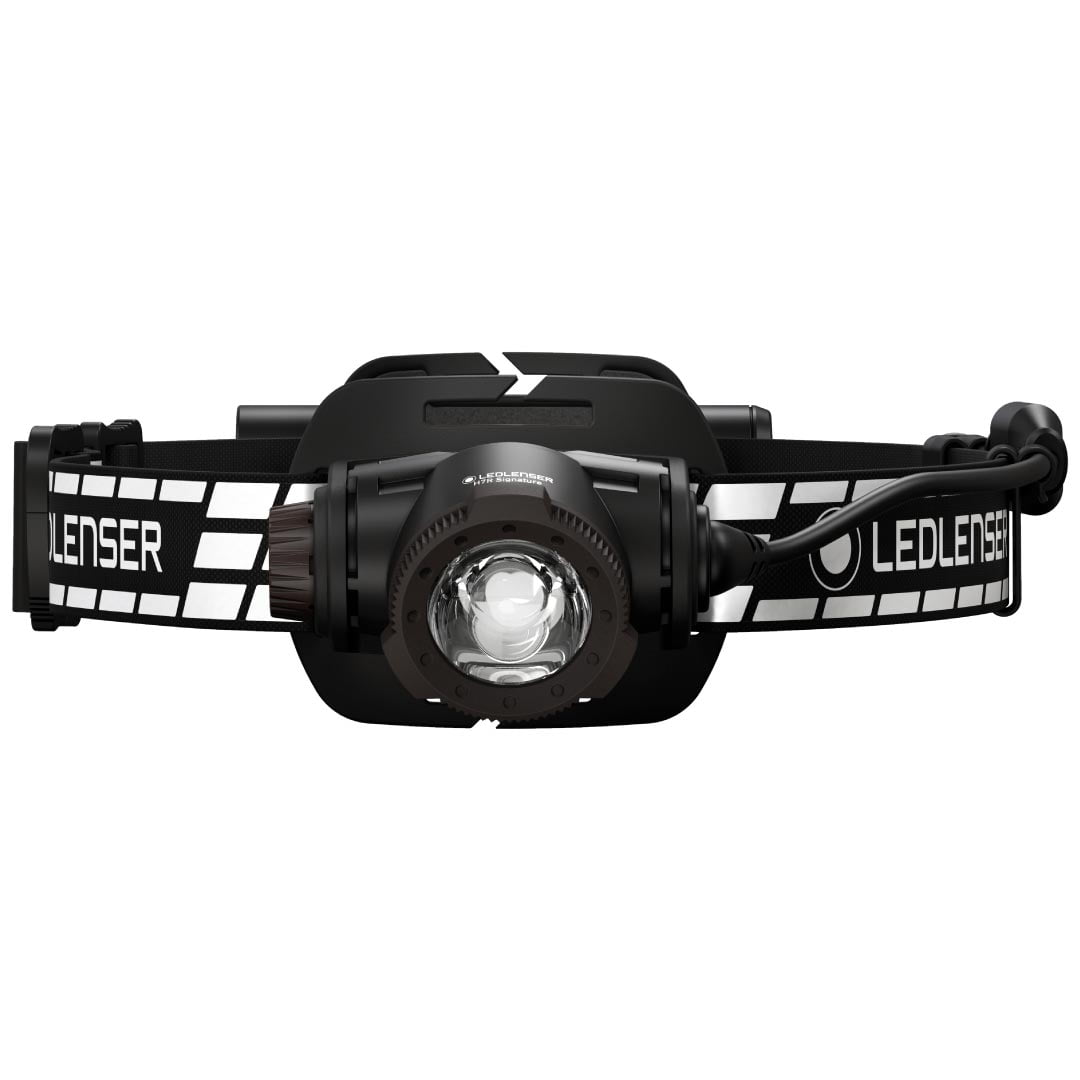

The H7R Signature is a versatile and powerful headlamp, delivering smart light for a variety of demanding activities. I
The Signature headlamps form the premium line of our H-series. They build on the extensive basic features of the Core models and provide the perfect lighting for demanding outdoor enthusiasts. Thanks to Bluetooth 5.0, the lamps can be controlled and configured with the Ledlenser Connect App in addition to the classic manual operation. A particularly natural color rendering and an extensive accessory range make the Signature headlamps the ultimate partners for ambitious adventures.
The H7R Signature is a versatile and powerful headlamp, delivering smart light for a variety of demanding activities. It can easily be controlled and personalized on your smartphone via Bluetooth with the Ledlenser Connect App. The H7R Signature has continuous dimmability and focusability. This headlamp can be easily powered back up thanks to its quick magnetic charging and offers extreme protection from dust and water (IP67). It’s the perfect adventure partner.
Signature Series
Represents the premium solution to the Ledlenser range. Including all of the latest technologies with a new sleek design, luxurious materials and additional accessories. This range is for people who want the “Best of the Best” lights out there on the market.
Light Functions
- Power – high light output for every situation
- Low Power – economical light for long battery life, glare-free reading and working
- Boost – short-duration maximum power for more brightness
- Blink – automatic emission of light impulses at regular intervals
- Position – two short pulses of light, repeated three times, to alert others of your location
- S.O.S – the distress signal the light emits is SOS in Morse code (3 x short, 3 x long, 3 x short)
- Strobe – flashes of light with a confusing blinding effect for, among other things, self-defense
Switches
- Multifunctional Switch – multi-function switch for quick and easy control of individual light functions
Special functions
- Powerful premium headlamp – with up to 1200 lumens and our patented Advanced Focus System
- Bluetooth connection – to the smartphone for custom light functions and settings via Ledlenser Connect App
- Intuitive operation – and stepless dimming with the Wheel Switch
- Flex Sealing Technology – provides superior protection against dust and water (IP67)
IP-Class
- IP67 – Protection for submersion in water up to 1m deep for up to 30 mins.
01 – Powerful premium headlamp with up to 1200 lumens and our patented Advanced Focus System (80 CRI / 6500K)
02 – Intuitive operation and stepless dimming with the Wheel Switch
03 – Bluetooth connection to the smartphone for custom light functions and settings via Ledlenser Connect App
04 – Flex Sealing Technology provides superior protection against dust and water (IP67)
05 – Magnetic charging
06 – Detachable, elastic, washable and reflecting headband
07 – 130 degrees of lamp head rotation
08 – Additional accessories included, such as extension cable, GoPro adapter, universal mount and
helmet mounting system
Ledlenser Flashlight
Signature Series
H7R
Signature- Max 1200 lm
- Max 260 m
- Max 65 h
- Rechargeable
- IP67
- 259 g
- 21700 Li-ion
- 80 CRI
- 1 set of rechargeable batteries, Extension cable, Fixing clips, GoPro accessories adapter, Helmet connecting kit, Hook-and-loop straps, Magnetic charging cable, Tripod connector, USB power adapter, Universal mounting bracket
- Bluetooth, Dimmable , Transportation lock , Flicker Free, Memory Function, Backup Mode
H19R
Signature- Max 4000 lm
- Max 330 m
- Max 20 h
- Rechargeable
- IP68
- 374 g
- 2x 21700 Li-ion
- 80 CRI
- 1 set of rechargeable batteries, Bluetooth remote control, Extension cable, Fixing clips, GoPro accessories adapter, Helmet connecting kit, Hook-and-loop straps, Magnetic charging cable, Tripod connector, USB power adapter, Universal mounting bracket
- Bluetooth, Dimmable , Red Light, Transportation lock , Flicker Free, Memory Function, Backup Mode
