Description

NEO9R Datasheet
PACKAGING INFORMATION | |
---|---|
Type of packaging | Box |
Scope of delivery | 1 set of Rechargeable Batteries,
Comfort Pad,
Magnetic Charging Cable,
Chest Belt |
Item No. | 502324 |
Dimensions W x H x D [cm] | 14.5 x 8.5 x 8.5
|
Gross weight [g] | 380 |
TECHNICAL DATA | |
---|---|
Head diameter [mm] | 57 |
Weight incl. batteries [g] | 199 |
Weight without batteries [g] | 106 |
Focus function | No |
Head material | PC |
Tube material | PC |
Optic | Plastic lense (PMMA) |
Headband material | Elastic fabric |
Headband type | Side headband |
Head movement type | Stepless movement |
Head movement angle [°] | 45 |
Headband specifications | Elastic,
Reflecting |
POWER SUPPLY | |
---|---|
Power source type | Rechargeable battery |
Battery quantity | 1 |
Battery type | Li-ion |
Battery replaceable | Yes |
Total battery voltage [V] | 3.7 |
Total battery capacity [mAh] | 5000
|
Total battery energy [Wh] | 18.5 |
Rechargeable | Yes |
Charging time [min] | 330 |
Energy status indicator | Battery Indicator,
Charge Indicator,
Low Battery Warning |
FURTHER SPECIFICATIONS | |
---|---|
IP class | IP54 |
Drop test (drop height) [m] | 2 |
Working temperature range [°C] | -20 to +40 |
LIGHT FUNCTIONS | |
---|---|
Boost, Power, Mid Power, Low Power |
LIGHT SOURCE | |
---|---|
Amount LEDs | 3 |
LED type | Xtreme LED |
Color | White |
Color temperature [K] | 5200 to 6200 |
Color rendering index (CRI) | 70 |
LIGHT VALUES | ||||
---|---|---|---|---|
ANSI – Energy Saving | Boost | Power | Mid Power | Low Power |
Light output [lm] | 1200 | 600 | 200 | 20 |
Beam distance [m] | 200 | 120 | 60 | 5 |
Run time [h] | 5 | 12 | 120 |
SWITCH | |
---|---|
Front Switch
|
FEATURES | |
---|---|
Rear Light, Transportation Lock, Backup Mode |
TECHNOLOGIES | |
---|---|
Temperature Control System, Magnetic Charge System, Fusion Beam |

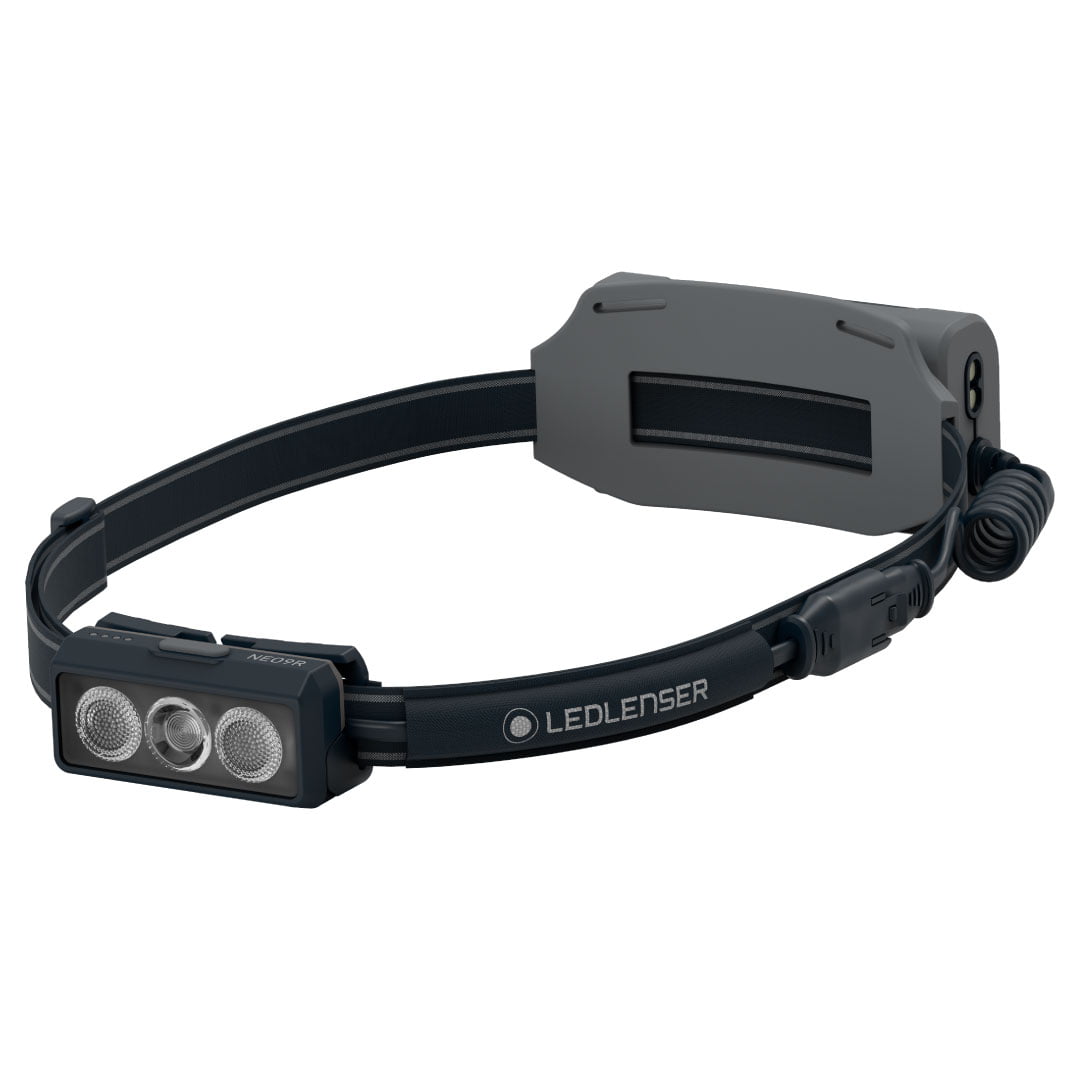

NEO Series - Lighter , Smaller , Faster
NEO9R a trailrunning headlamps.
NEO9R is the absolute powerhouse among trail running headlamps. Whether cross-country, uphill, or downhill – thanks to its extreme power and endurance, NEO9R is a true legend out on the trails. The superior light image ensures precise short-range and long-range illumination at all times. The particularly powerful, replaceable battery with integrated rear light sits at the back of the head for optimum weight distribution and can be charged easily and quickly via magnetic contact.


NEO Series
Lighter, smaller, faster: the new Ledlenser NEO series provides you with the perfect light to bring out the best in you during fastpaced activities in the dark. Your NEO headlamp is your partner on the way to your next goal – no matter whether you run on or off the trails, skate, parkour or practice other fast-paced sports where customized lighting is essential. The headlamps of the NEO series are optimized in every detail for their intended use – from the perfect light image and clever light functions to weight, size and sophisticated details. Let the run begin!
Light Functions
- Power – high light output for every situation
- Mid Power – sufficient light output for extended battery life
- Low Power – economical light for long battery life, glare-free reading and working
- Boost – short-duration maximum power for more brightness.
Switches
- Front Switch – The light is equipped with a quickly accessible front switch, which is easy to operate with one hand.
Special functions
- Intuitive operation – and stepless dimming with the Wheel Switch
- Application Optimized Illumination. – Fushion Beams enables a homogenous close-up wide flood beam and sharply focused long-distance beam.
IP-Class
- IP54 – Protection for splash water from all direction and limit dust ingress
NEW NEO Series

NEO1R
Ultralight headlamp-
Max 250 lm
-
Max 80 m
-
Max 15 h
-
Rechargeable
-
IP67
-
39 g
-
Built-In rechargeable battery
-
70 CRI
-
1 set of Rechargeable Batteries, Magnetic Charging Cable
-
Temperature Control System, Fusion Beam, Magnetic Charge System
-
Red Light, Backup Mode, Battery Indicator, Charge Indicator, Low Battery Warning, Transportation lock
In stock

NEO3
AAA battery powered-
Max 400 lm
-
Max 80 m
-
Max 20 h
-
Non-chargeable
-
IP54
-
97 g
-
3x AAA batteries
-
70 CRI
-
1 set of Batteries, Comfort Pad, Chest Belt
-
Temperature Control System, Fusion Beam, Magnetic Charge System
-
Red Flashing Rear Light, Backup Mode, Battery Indicator, Low Battery Warning, Transportation lock
In stock

NEO5R
Fast-paced headlamp-
Max 600 lm
-
Max 100 m
-
Max 35 h
-
Rechargeable
-
IP54
-
104 g
-
Built-In rechargeable battery
-
70 CRI
-
1 set of Rechargeable Batteries, Comfort Pad, Magnetic Charging Cable, Chest Belt
-
Temperature Control System, Fusion Beam, Magnetic Charge System
-
Red Flashing Rear Light, Backup Mode, Battery Indicator, Charge Indicator, Low Battery Warning, Transportation lock
In stock

NEO9R
True legend headlamp-
Max 1200 lm
-
Max 200 m
-
Max 120 h
-
Rechargeable
-
IP54
-
199 g
-
Built-In rechargeable battery
-
70 CRI
-
1 set of Batterypack, Comfort Pad, Magnetic Charging Cable, Chest Belt, Overhead Strap
-
Temperature Control System, Fusion Beam, Magnetic Charge System
-
Red Flashing Rear Light, Backup Mode, Battery Indicator, Charge Indicator, Low Battery Warning, Transportation lock
In stock
