Description
AF Series --- AF4R Work
Area Light Datasheet
PACKAGING INFORMATION | |
|---|---|
Type of packaging | Sleeve Case |
Scope of delivery | Power adapter, USB cable Diffuser |
Item No. | 502910 |
Color | Black |
Dimensions W x H x D [cm] | 45.5 x 9.6 x 30.3 |
Gross weight [g] | 3660 |
TECHNICAL DATA | |
|---|---|
Width [mm] | 266 |
Depth [mm] | 44 |
Height [mm] | 119 |
Weight incl. batteries [g] | 1370 |
Weight without batteries [g] | 1220 |
Focus function | No |
Primary material | Aluminum alloy |
Secondary material | Other plastics |
Optic | Reflector |
Cartridge | No |
POWER SUPPLY | |
|---|---|
Power source type | Rechargeable battery |
Battery quantity | 1 |
Battery type | Lithium |
Battery replaceable | No |
Total battery voltage [V] | 7.2 |
Total battery capacity [mAh] | 4700 |
Total battery energy² [Wh] | 33.84 |
Rechargeable | Yes |
Charging time [min] | 360 |
Energy modes | Constant Light |
Energy status indicator | Runtime indicator, Battery Indicator, Charge Indicator, Low Battery Warning |
FURTHER SPECIFICATIONS | |
|---|---|
IP class | IP67 |
Drop test (drop height) [m] | 1.5 |
Working temperature range [°C] | -20 to +40 |
LIGHT FUNCTIONS | |
|---|---|
Mid Power, Low Power, Power | |
LIGHT SOURCE | Main |
|---|---|
Color | Tunable white |
Color temperature [K] | 3000 to 6500 |
Color rendering index (CRI) | 80 |
LIGHT VALUES | ||||
|---|---|---|---|---|
ANSI – Energy Saving | Power | Mid Power | Low Power | |
Light output [lm] | 2000 | 1000 | 200 | |
Beam distance [m] | 60 | 50 | 20 | |
Run time [h] | 2 | 4 | 20 | |
SWITCH | |
|---|---|

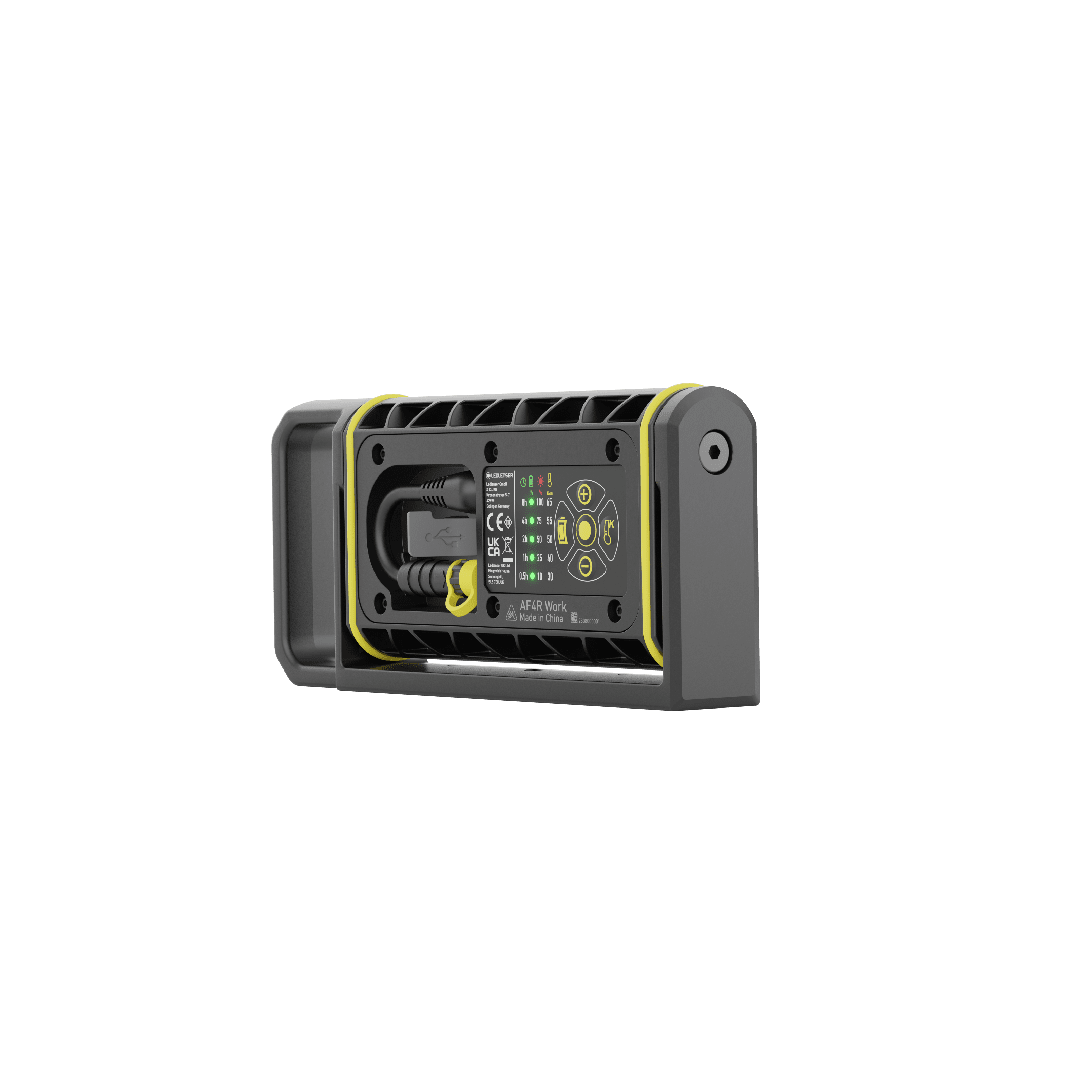

Multifunctional Switch | |
FEATURES | |
|---|---|
Tunable white, Reduced Peripheral Glare, Transportation lock, Dimmable, Memory function | |

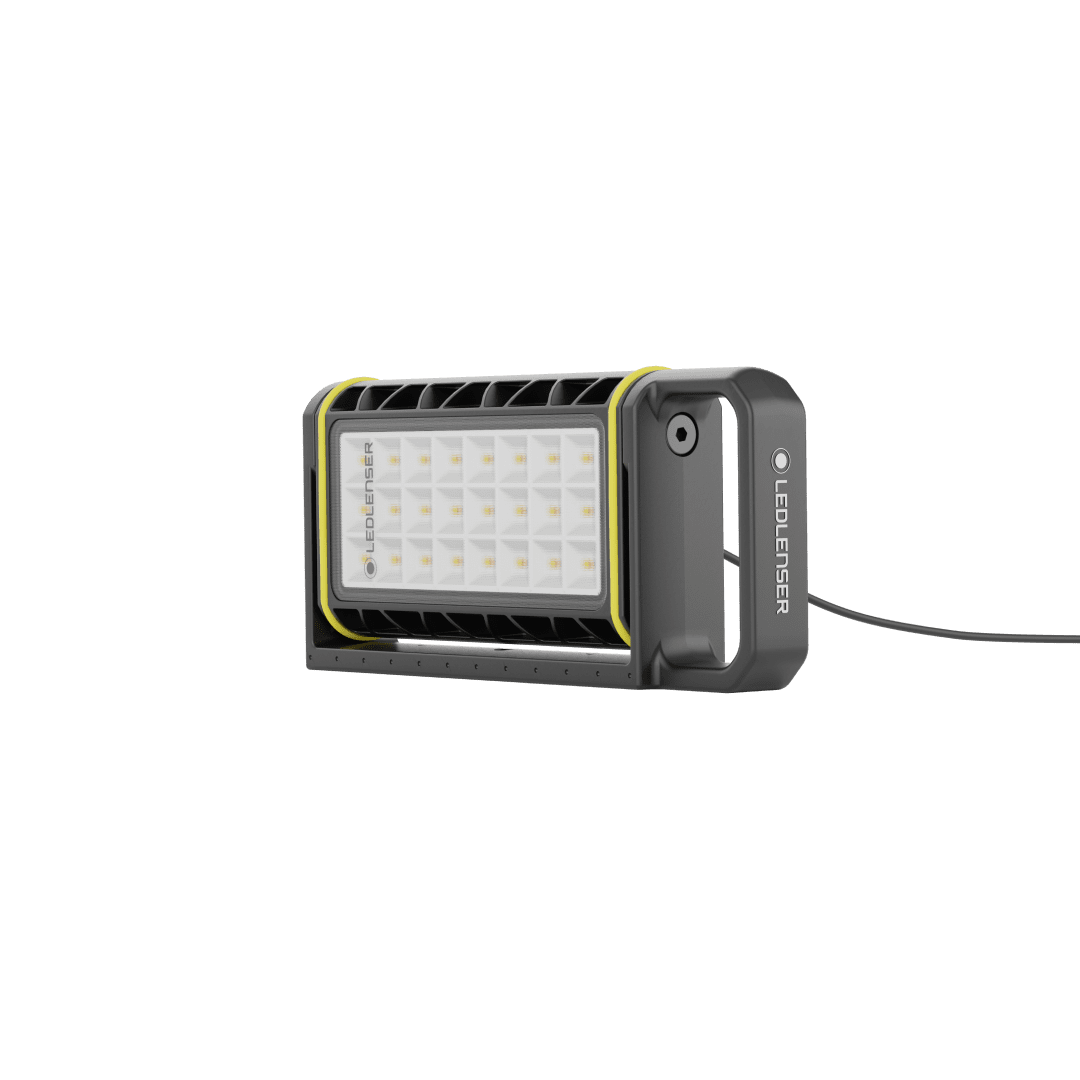

AF4R Work The Ledlenser AF series
Our Area Lights are for all of you electricians, plumbers, painters, construction workers, craftsmen and DIY enthusiasts: You need to get the job done – and you depend on light. Bright light to illuminate vast work sites. Warm light to stage a project. Homogeneous light for close-range work. Portable light for on the go and stationary
light for continuous illumination. The Area Lights combine all these features to make your job easier.
- Compact floodlight with 5 brightness
levels and 5-step tunable white light (CRI ≥ 80) - Dust and waterproof (IP67)
- Robust aluminium housing
- Bluetooth® ready, separately available Bluetooth® controller

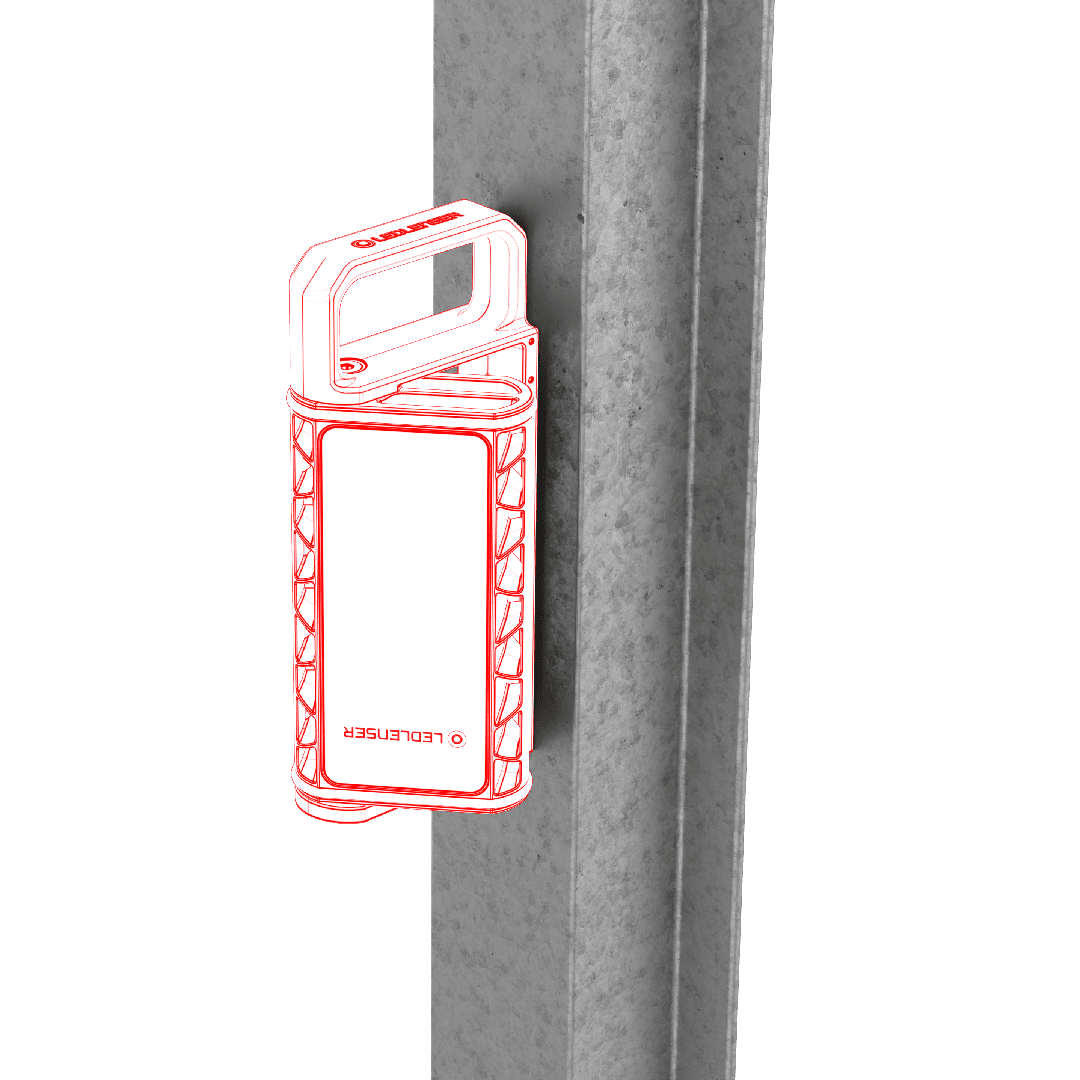

- Flexible mounting options
- 2000-200 lumen
Multi-Concentrated Light
The Multi-Concentrated Light technology directs the light to where you need it the most. The highlight: It makes your light 12 % more energy efficient and the illuminance is 35 % higher than that of conventional floodlights.*
Reduced Peripheral Glare

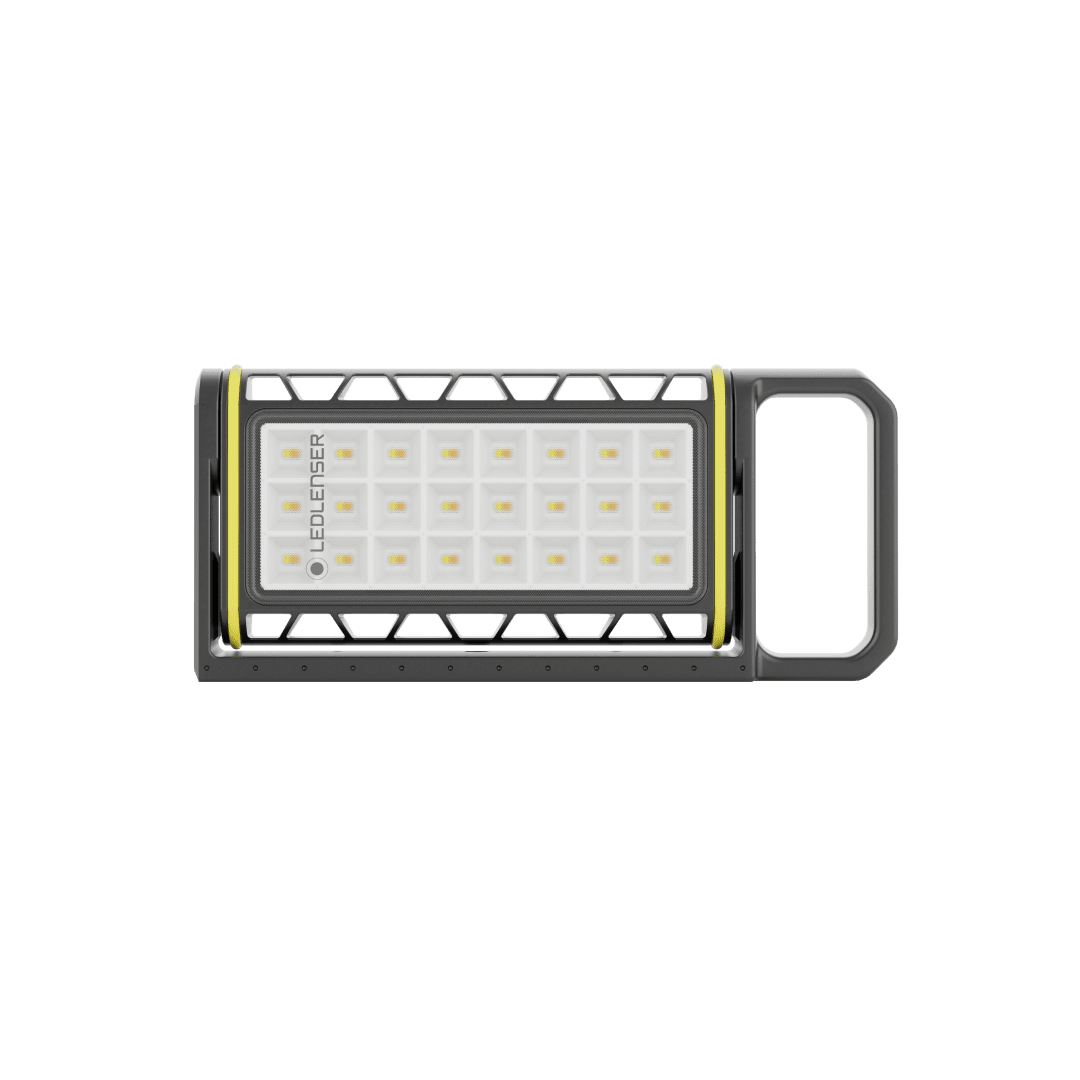

Our Reduced Peripheral Glare guarantees less glaring at work. The LEDs are embedded into a waffle structure and concentrate the light. At the same time, the reflector grid prevent peripheral glaring.

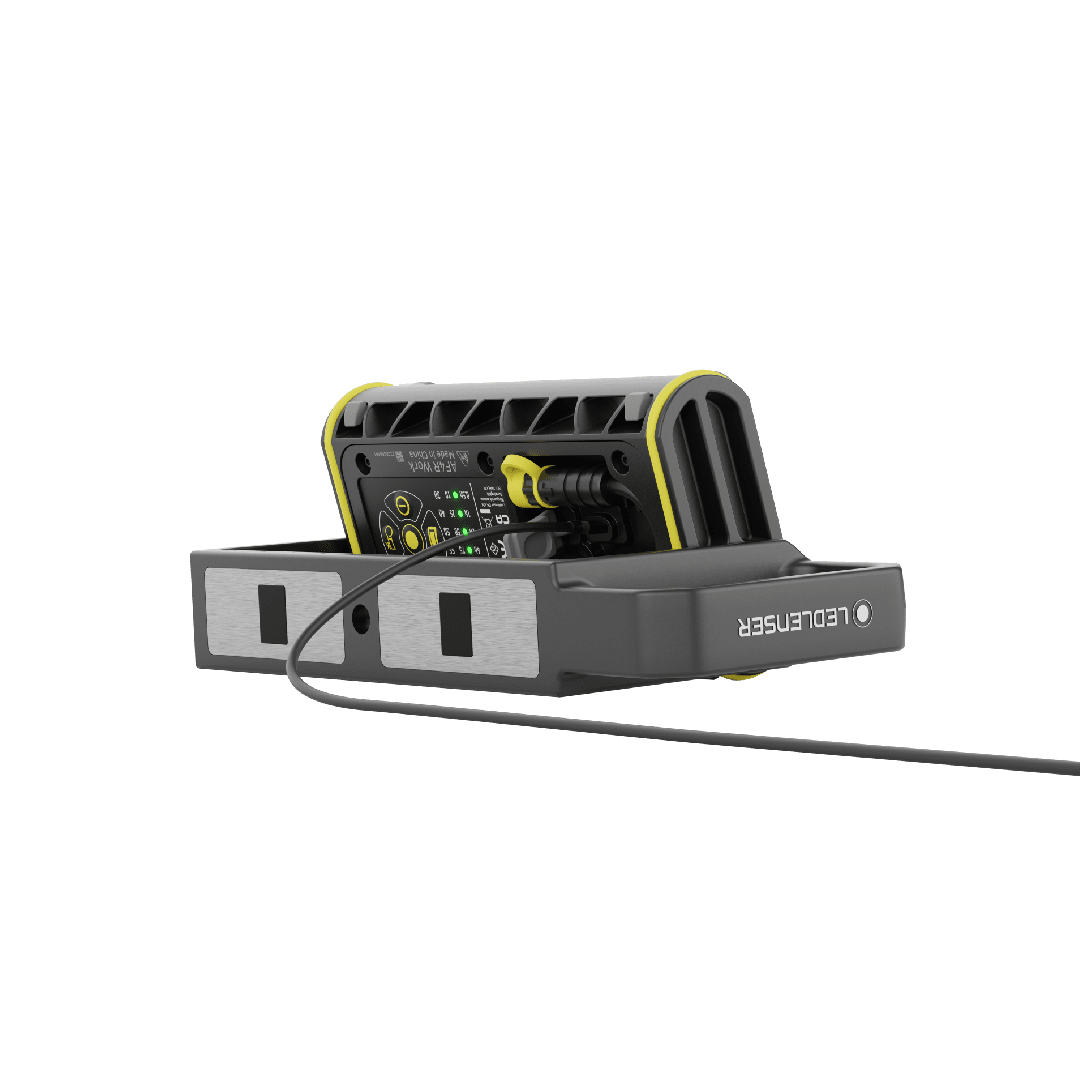

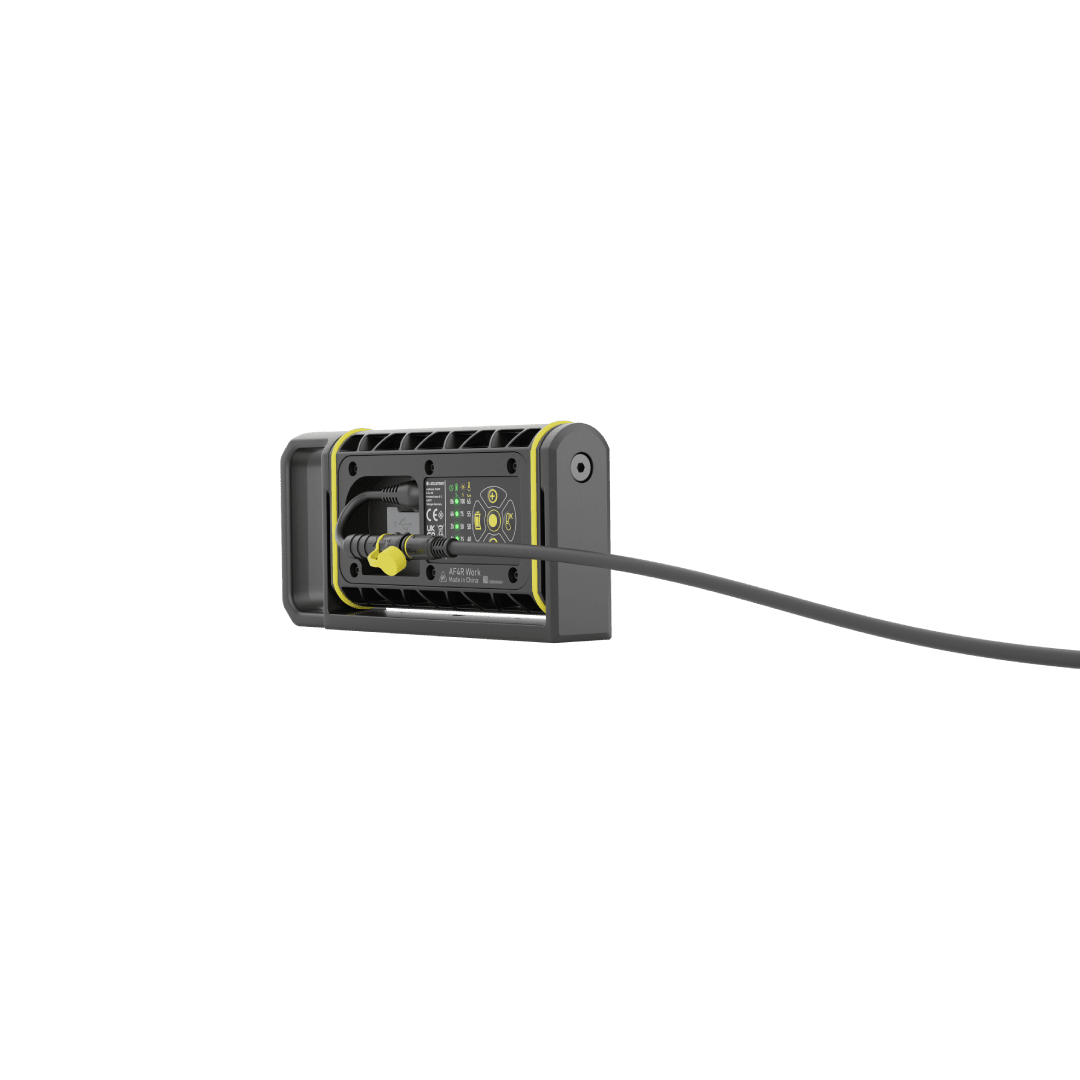

Hybrid Power
Battery or mains operation – products with Hybrid Power are designed to be used with both energy sources. Battery operation makes your product a portable companion, whereas mains operation is ideal for stationary use.
Guaranteed Quality
- Robust and reliable lights for daily work
- 24 stress tests during design and development ensure
performance and durability - All products backed by world class customer service
