Description
Ledlenser W7R Work Datasheet
Innovative and versatile: The Ledlenser W7R Work is the ultimate worklight for professionals with continuously adjustable color temperature depending on the application scenario and additional UV light in the lamp head for leak detection or document inspection. The fold-out and rotatable lamp head illuminates even narrow working areas evenly and reliably. The superior Ledlenser light beam ensures the necessary precision and is continuously adjustable between neutral white and cool white light. The powerful, rechargeable battery of the W7R can be easily and repeatedly charged and then replaced at the end of its battery life. Other useful features include numerous mounting options, a nubbed surface for a strong grip and a handy transport lock.
- Flexible worklight with two light sources for wide-area illumination and UV light (365 nm)
- Continuously adjustable color temperature for different use cases

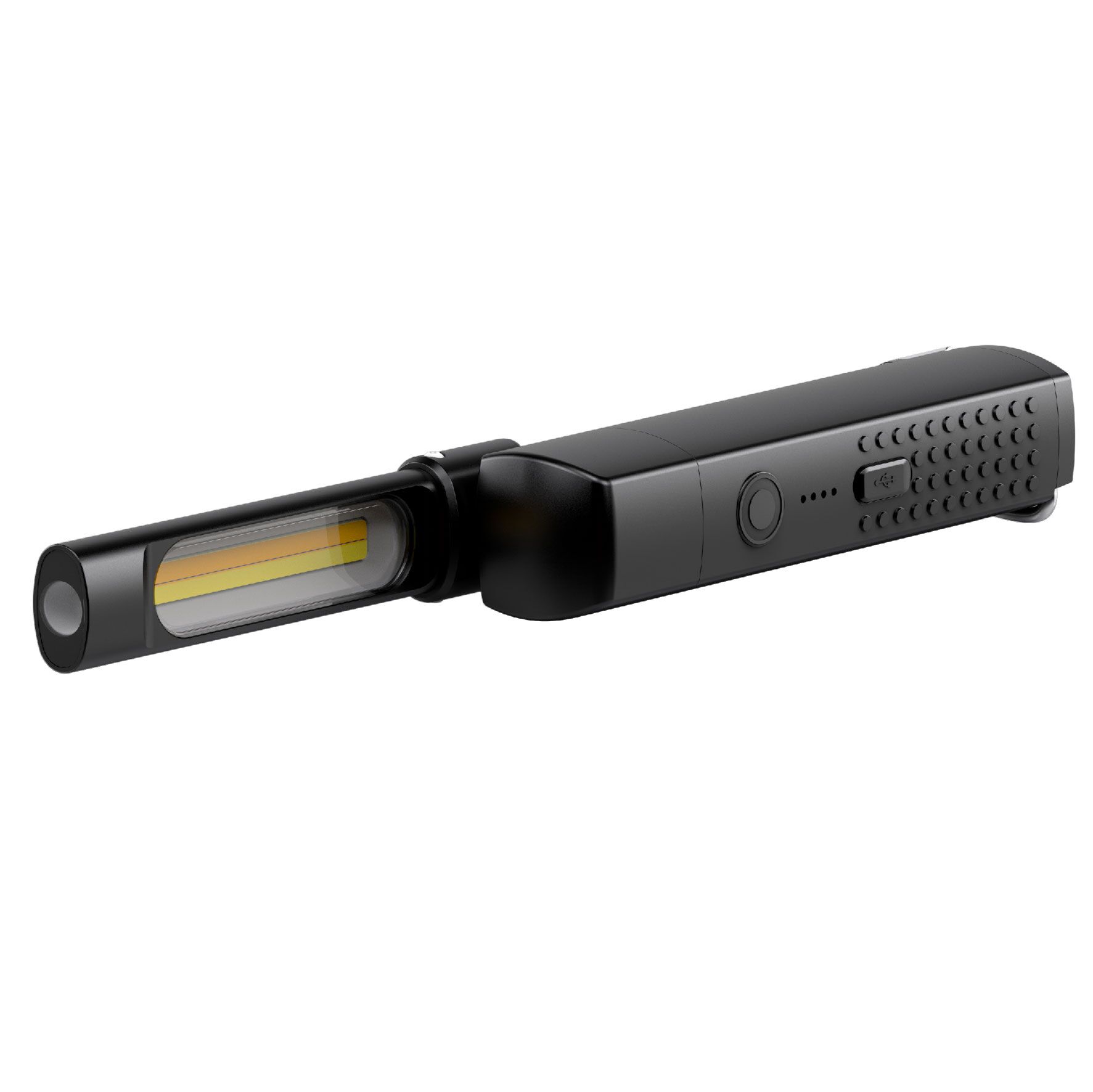

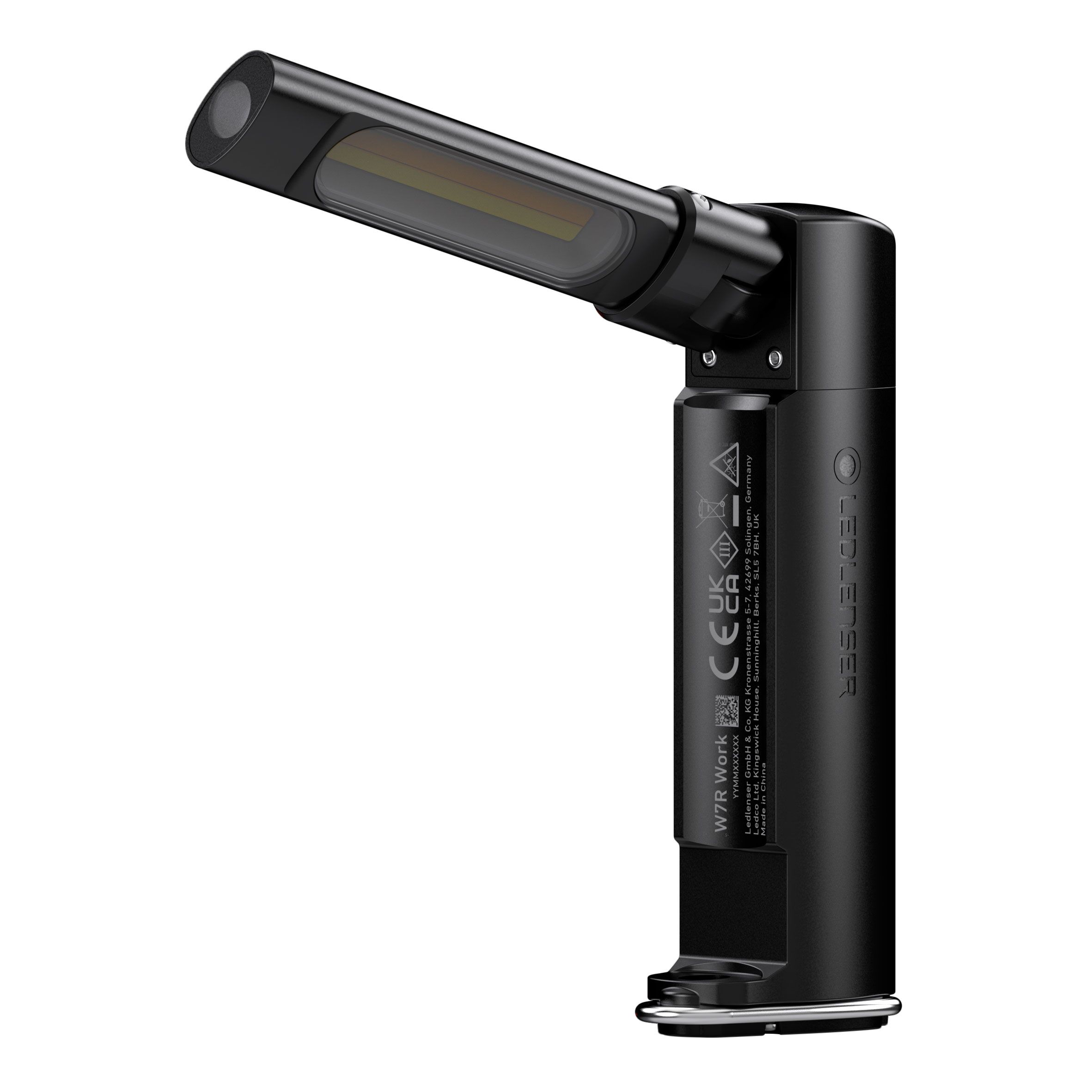

- Fold-out (180°) and rotatable (270°) lamp head for illumination of hard-to-reach work areas

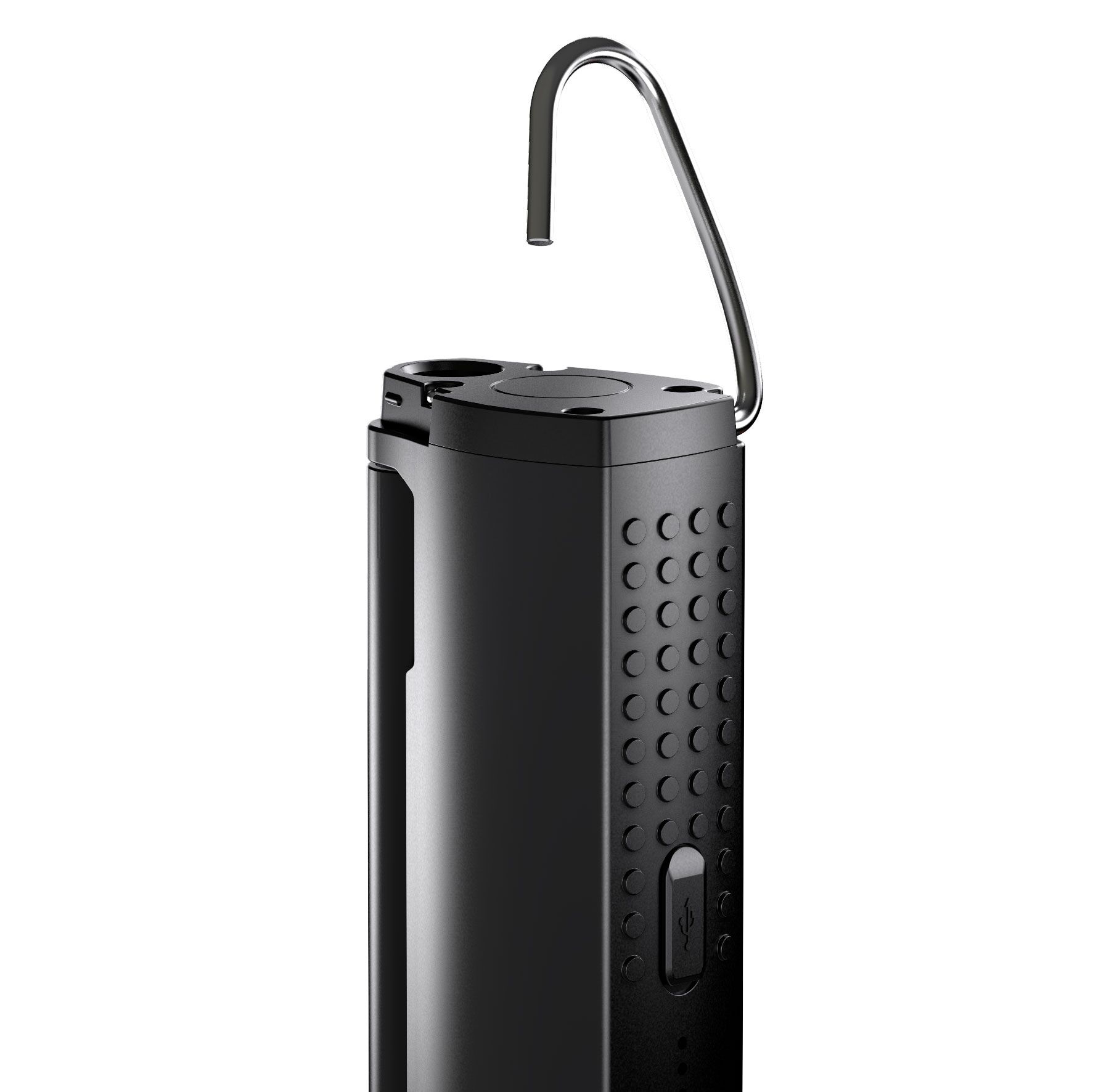

- Flexible mounting via stand, magnet, and fold-out metal hook

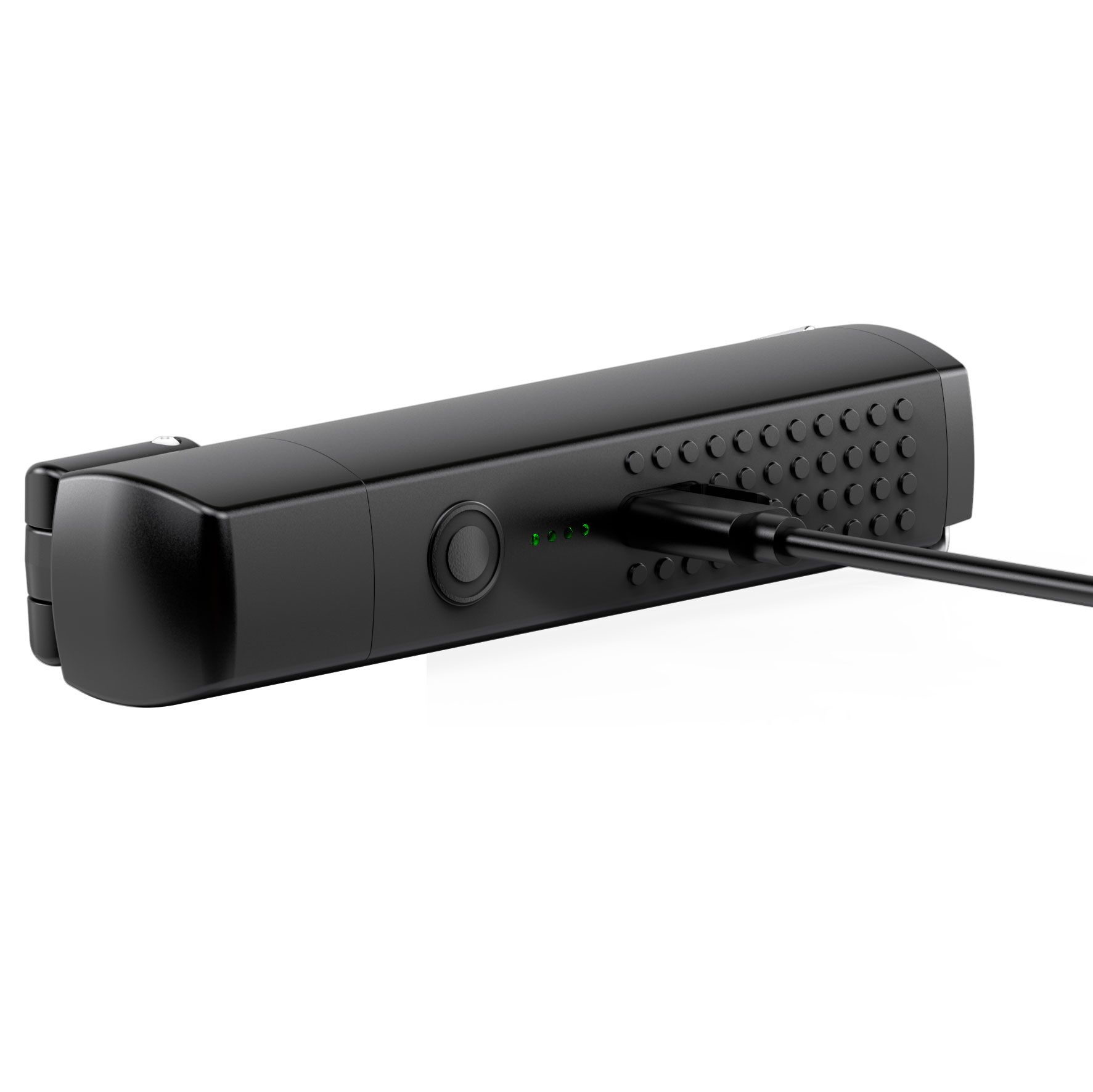

- Service-replaceable li-ion battery; easily rechargeable via USB-C, with battery and charge level indicator
TECHNICAL DATA | |
|---|---|
Weight incl. batteries [g] | 180 |
Material | PC, Aluminum alloy |
Dimensions | 31 x 143 x 45 |
POWER SUPPLY | |
|---|---|
Power source type | 18650 3.7V|2500mAh |
Battery quantity | 1 |
Rechargeable | Yes |
Battery type | Lithium-ion |
Total battery voltage [V] | 3.7 |
Total battery capacity [mAh] | 2500 |
Total battery energy [Wh] | 9.25 |
Battery replaceable | No |
Charging time [min] | 210 |
Energy status indicator | Battery Indicator, Charge Indicator, Low Battery Warning |
FURTHER SPECIFICATIONS | |
|---|---|
IP class | IP54 |
Drop test (drop height) [m] | 1 |
Working temperature range [°C] | -20 to +40 |
Chemical resistance | Diesel, Engine oil, Hydraulic oil, Coolant, Break fluid, Alcohol |
Robustness Code | IK07 |
LIGHT FUNCTIONS | |
|---|---|
Power, Low power | |
LIGHT SOURCE | COB | |
|---|---|---|
Amount LEDs | 1 | |
LED type | – | |
Color | Cool White | |
Color temperature [K] | 6000 to 7500 | |
Color rendering index (CRI) | 80 | |
LIGHT VALUES – COB | ||||
|---|---|---|---|---|
Power | Low Power | |||
Light output [lm] | 600 | 220 | ||
Beam distance¹ [m] | – | – | ||
Run time [h] | 2 | 5 | ||
SWITCH | |
|---|---|
Front Switch | |
FEATURES | |
|---|---|
Transportation Lock, UV Light, | |
Work Series
Robust, versatile and rechargeable: The Ledlenser W-series worklights offer reliable professional light for workshops, construction sites or your next DIY project. From compact clip lights and convenient pen lights to flexible high-end lights: Outstanding Ledlenser light quality and numerous innovative features make the W-series worklights a must-have for every well-stocked tool box.
