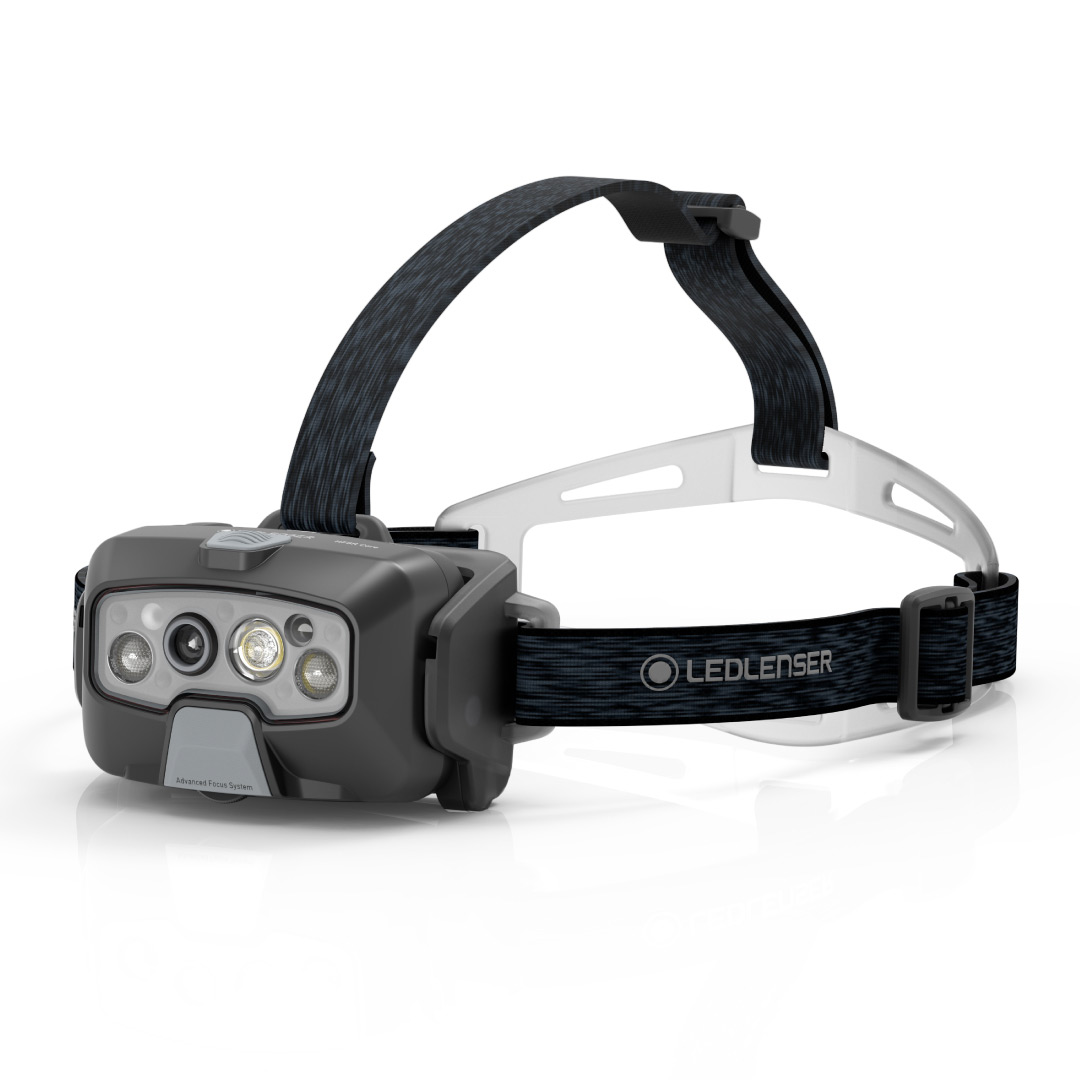

The Ledlenser HF8R Core

The Ledlenser HF8R Core is an adaptive powerhouse to be reckoned with. The highlight: Our patent-pending Adaptive Light Beam Technology allows automatic dimming and focusing. Thus, the HF8R is our first headlamp which can be used hands-free and requires no manual control at all. In addition to that, it comes with three brightness levels as well as a red front light. Thanks to our patent-pending Digital Advanced Focus System, the HF8R Core allows virtually seamless focusing. Moreover, it can be controlled remotely via Ledlenser Connect App (paid upgrade with additional features available), has an aluminum housing and a highly comfortable headband.

Dims and focuses automatically thanks to our patent-pending Adaptive Light Beam technology; hands-free use
Powerful headlamp with red front light and innovative Digital Advanced Focus System
Remote control via Ledlenser Connect App
Suitable for continuous immersion in water (IP68)
Extremely powerful battery; easily rechargeable via Magnetic Charge System, with battery status indicator

Top 4 ways how we improved our new HF-Series

The world’s 1st Adaptive Light Beam as a hands-free auto focus
The world’s 1st Digital Advanced Focus
Best in class: super slim housing & lightweight
Bluetooth App for perfect ease of use

HF8R Core Datasheet

PACKAGING INFORMATION
Type of packaging	Box
Scope of delivery	Connect adapter, Comfort Pad, Magnetic charging cable (USB-C)
Item No.	502801
Dimensions W x H x D [cm]	14.5 x 12 x 8.5
Gross weight [g]	383

TECHNICAL DATA
Weight incl. batteries [g]	194
Focus function	Yes (digital)
Head material	Aluminum alloy + PC
Tube material	Aluminum alloy + PC
Optic	Plastic lense (PMMA)
Headband material	Elastic fabric
Headband type	Side overhead headband
Head movement type	Stepless movement
Head movement angle [°]	45
Headband specifications	Detachable, Elastic, Washable

POWER SUPPLY
Power source type	Rechargeable battery
Battery quantity	1
Battery type	Li-ion
Battery replaceable	No
Total battery voltage [V]	3.7
Total battery capacity [mAh]	3700
Total battery energy [Wh]	13.69
Rechargeable	Yes
Charging time [min]	270
Energy status indicator	Battery Indicator, Charge Indicator, Low Battery Warning

FURTHER SPECIFICATIONS
IP class	IP68
Drop test (drop height) [m]	2
Working temperature range [°C]	-20 to +40

LIGHT FUNCTIONS
Boost, Power, Mid Power, Low Power, S.O.S.

LIGHT SOURCE
Amount LEDs	4
LED type	Xtreme LED
Color	White
Color temperature [K]	5200 to 6200
Color rendering index (CRI)	70

LIGHT VALUES
	Boost	Power	Mid Power	Low Power
Light output [lm]	1600	900	300	20
Beam distance [m]	210	200	100	25
Run time [h]		3.5	10	90

SWITCH
Front Switch, Rotary Switch

FEATURES
Bluetooth®, Dimmable , Red Light, Transportation lock , Memory Function, Backup Mode

TECHNOLOGIES
Temperature Control System, Magnetic Charge System, Adaptive Light Beam, Emergency Light, Cooling Technology, Digital Advanced Focus System

HF Series Core

The HF-series Core models are reliable headlamps for everyday use. You can count on premium Ledlenser light quality, innovative technologies, an additional red light and compact design when going for a walk, hiking, during home improvements or DIY projects. With an HF Core headlamp, you have the best light for everyday life – plus, your hands remain free.

At Ledlenser everything lasts mighty long.
Even the warranty.

German Engineering & Design

We subject all our developed products to rigorous testing to ensure their durability. Only those that pass the toughest conditions bear our name. With confidence in our product quality, we offer an extended warranty period of up to 7 years for all Ledlenser lights. The warranty is valid globally, and legal warranty rights also apply.

How to register your product international warranty?

Each product has its own individual code, which can only be registered once to prove the originality.
By registering your product you benefit from an extended warranty* on the purchased Ledlenser product.
Each product is accompanied by a registration card from which you can obtain further information on the registration process.

What happens after payment?

You will receive an order invoice via email after payment.
Your order will be processed within the next working day and we will email you a tracking code once your package has been shipped.

When can I expect my order?

You will receive a purchase receipt via email after payment.
Delivery will take 1-2 working days for West Malaysia and 2-7 working days for East Malaysia after the order has shipped.
All delivery lead times are estimated.

RM238.00

Max 500 lm
Max 130 m
Max 35 h
Rechargeable
IP68
72 g
1000 mAh
70 CRI
2x High Power LED
Side headband
PC Material
No Focus function
Connect adapter, Magnetic charging cable (USB-C)
Red Light, Transportation lock, Memory Function, Backup Mode
Temperature Control System, Magnetic Charge System, Fusion Beam

RM358.00

Max 800 lm
Max 160 m
Max 60 h
Rechargeable
IP68
126 g
2000 mAh
70 CRI
3x Xtreme LED
Side headband
Aluminum alloy + PC
Digital Focus function
Connect adapter, Comfort Pad, Magnetic charging cable (USB-C)
Red Light, Transportation lock, Memory Function, Backup Mode
Digital Advanced Focus System, Temperature Control System, Magnetic Charge System, Cooling Technology

RM628.00

Max 1600 lm
Max 210 m
Max 90 h
Rechargeable
IP68
194 g
3700 mAh
70 CRI
4x Xtreme LED
Side overhead headband
Aluminum alloy + PC
Digital Focus function
Connect adapter, Comfort Pad, Magnetic charging cable (USB-C)
Bluetooth®, Dimmable , Red Light, Transportation lock, Memory Function, Backup Mode
Adaptive Light Beam, Digital Advanced Focus System, Temperature Control System, Magnetic Charge System, Emergency Light, Cooling Technology
