Description
iA6R Datasheet
PACKAGING INFORMATION | |
|---|---|
Type of packaging | Blister |
Scope of delivery | 1 set of rechargeable batteries, Transport bag, USB cable, stand |
Item No. | 501962 |
Dimensions W x H x D [cm] | 15 x 24 x 9.5 |
Gross weight [g] | 530 |
TECHNICAL DATA | |
|---|---|
Length defocused [mm] | 178 |
Head diameter [mm] | 42 |
Tube diameter [mm] | 39 |
Weight incl. batteries [g] | 280 |
Weight without batteries [g] | 230 |
Focus function | No |
Head material | Aluminum alloy |
Tube material | Aluminum alloy |
Optic | Reflector + lense (PMMA) |
Cartridge | No |
POWER SUPPLY | |
|---|---|
Power source type | Rechargeable battery |
Battery quantity | 1 |
Battery type | Li-ion |
Battery description | 18650 3.6V |
Battery replaceable | Yes |
Total battery voltage [V] | 3.6 |
Total battery capacity [mAh] | 3200 |
Total battery energy [Wh] | 11.52 |
Rechargeable | Yes |
Charging time [min] | 420 |
Energy modes | Energy Saving |
Energy status indicator | Battery Indicator,
Charge Indicator,
Low Battery Warning |
Usable batteries | ICR Li-ion 3.7V |
FURTHER SPECIFICATIONS | |
|---|---|
IP class | IP54 |
Drop test (drop height) [m] | 1.5 |
Working temperature range [°C] | -20 to +40 |
LIGHT FUNCTIONS | |
|---|---|
Boost, Power, Mid Power, Low Power, Blink, Pulse, S.O.S., Strobe,
Position | |
LIGHT SOURCE | |
|---|---|
Amount LEDs | 18 |
LED type | Power LED |
Color | White |
Color temperature [K] | 3700 to 4200 |
Color rendering index (CRI) | 80 |
LIGHT VALUES | ||||
|---|---|---|---|---|
Energy Saving | Boost | Power | Mid Power | Low Power |
Light output [lm] | 750 | 550 | 20 | |
Run time [h] | 4 | 70 | ||
SWITCH | |
|---|---|
Front Switch | |
FEATURES | |
|---|---|
Dimmable , Transportation lock, Amber Light | |
TECHNOLOGIES | |
|---|---|
Smart Light Technology, Micro Prism Technology, Temperature Control
System, Power Bank Function | |
No matter how many nooks and crannies your workspace has, the iA6R lights it up perfectly.
State of the art lens technology ensures optimal light distribution and optimal energy efficiency. Glare-free light makes finding the best spot for your lamp a breeze. In addition to hooks, the iA6R has a detachable base or magnet for all sorts of options. To top it off, it can also be used as a power bank for other electronics. So nothing stands in the way of a professionally lit workspace.
The industrial lantern by Ledlenser with state of the art lens technology for glare-free light and high energy efficiency
Three switches for intuitive, easy operation, continuous dimming and built-in battery indicator
Power bank with USB port for charging electronics, e.g. cell phone, etc.
Useful integrated amber light function
Rubber hook for hanging, built-in magnet to secure on metal surfaces, and detachable base with additional built in
folding metal hook
Light Functions
- Power – high light output for every situation
- Mid Power – medium light output for every situation
- Low Power – economical light for long battery life, glare-free reading and working
- Boost – short-duration maximum power for more brightness
- Blink – automatic emission of light impulses at regular intervals
- Strobe – flashes of light with a confusing blinding effect for, among other things, self-defense
- Pulse – automatic emission of light impulses at regular intervals
- S.O.S – the distress signal the light emits is SOS in Morse code (3 x short, 3 x long, 3 x short)
Energy Management
- Low Battery Warning – it warns you when the battery is low
- Battery Indicator – it shows the current level of the battery
- Charge Indicator – it shows the current charge status of the battery
Rechargeable
- Did you know that conventional, disposable batteries can require up to 500 times more electricity to produce than they can release?
- By opting for rechargeable batteries, not only are you saving money in the long-run by reusing the same batteries, but you’re no longer throwing disposables away, which is a plus for Mother Earth.
Special functions
- Power Bank Functionality – with USB connection for recharging electronic devices like cell phones, etc.
- Fluorescent Elements – to make it easier to find the light in the dark
- Mounting Options – rubber hook for hanging the light, integrated magnet for mounting it on metal surfaces, and a removable stand with an extra built-in metal hook that can be flipped out
- Dimmable Light – seamless adjustment of the luminosity
- Transportation Lock – prevents the light from being turned on inadvertently
Switches
- Front Switch – a switch on the front of the lantern
IP-Class
- IP54 – Protection against water projected in powerful spray
The Ledlenser Outdoor-Series
Brightness in your Hands. Darkness under control.
Not only do mountain hikers have high standards when it comes to flashlights, headlamps and lanterns – so do campers, geocaches, hunters, anglers and many other outdoors fans. Lights from Ledlenser meet precisely these high standards of quality in terms of functionality and design. We call it “technology engineered in Germany”.
Ledlenser Lanterns

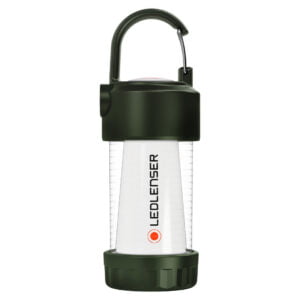

ML4
Lantern-
300 lm
-
20 h
-
IP66
-
97 mm
-
71 g
-
Magnetic Charge System
-
14500 Li-ion Battery
-
750 mAh
-
Boost / Power / Mid Power / Low Power (+ Blink)
ML4
Warm Light-
300 lm
-
40 h
-
IP66
-
97 mm
-
71 g
-
Magnetic Charge System
-
14500 Li-ion Battery
-
750 mAh
-
Boost / Power / Mid Power / Low Power (+ Blink)
ML6
Lantern-
750 lm
-
70 h
-
IP66
-
178 mm
-
280 g
-
USB Charge System
-
18650 Li-ion Battery
-
3200 mAh
-
Boost / Power / Low Power (+ Blink, Pulse, S.O.S., Strobe)
ML6
Warm Light-
750 lm
-
70 h
-
IP66
-
178 mm
-
280 g
-
USB Charge System
-
18650 Li-ion Battery
-
3200 mAh
-
Boost / Power / Low Power (+ Blink, Pulse, S.O.S., Strobe)
iA6R
Industry-
750 lm
-
70 h
-
IP66
-
178 mm
-
280 g
-
USB Charge System
-
18650 Li-ion Battery
-
3200 mAh
-
Boost / Power / Low Power (+ Blink, Pulse, S.O.S., Strobe)
ML6 Connect
Warm Light-
750 lm
-
70 h
-
IP66
-
178 mm
-
260 g
-
USB Charge System
-
18650 Li-ion Battery
-
3200 mAh
-
Boost / Power / Mid Power / Low Power (+ Blink, Pulse, Position, Strobe, S.O.S., Alpines Notsignal)
