Description
ML4 Warm Light Datasheet
PACKAGING INFORMATION | |
|---|---|
Type of packaging | Window Box |
Scope of delivery | 1 set of rechargeable batteries, Magnetic charging cable (USB-A) |
Item No. | 502231 |
Dimensions W x H x D [cm] | 10 x 12 x 6.5 |
Gross weight [g] | 178 |
TECHNICAL DATA | |
|---|---|
Length defocused [mm] | 97 |
Head diameter [mm] | 34.5 |
Tube diameter [mm] | 29 |
Weight incl. batteries [g] | 71 |
Weight without batteries [g] | 50 |
Focus function | No |
Head material | PC |
Tube material | PC |
Optic | Reflector + lense (PMMA) |
Cartridge | No |
POWER SUPPLY | |
|---|---|
Power source type | Rechargeable battery |
Battery quantity | 1 |
Battery type | Li-ion |
Battery replaceable | Yes |
Total battery voltage [V] | 3.7 |
Total battery capacity [mAh] | 750 |
Total battery energy [Wh] | 2.77 |
Rechargeable | Yes |
Charging time [min] | 150 |
Energy modes | Energy Saving |
Energy status indicator | Battery Indicator,
Charge Indicator,
Low Battery Warning |
Usable batteries | AA Alkaline 1.5V,
AA NiMH 1.2V |
FURTHER SPECIFICATIONS | |
|---|---|
IP class | IP66 |
Drop test (drop height) [m] | 2 |
Working temperature range [°C] | -20 to +40 |
LIGHT FUNCTIONS | |
|---|---|
Low Power, Mid Power, Power, Boost, Blink | |
LIGHT SOURCE | |
|---|---|
Amount LEDs | 9 |
LED type | Power LED |
Color | Warm White |
Color temperature [K] | 2500 to 3000 |
Color rendering index (CRI) | 80 |
LIGHT VALUES | ||||
|---|---|---|---|---|
Energy Saving | Boost | Power | Mid Power | Low Power |
Light output [lm] | 300 | 150 | 50 | 5 |
Run time [h] | 2.2 | 7 | 40 | |
SWITCH | |
|---|---|
Front Switch | |
FEATURES | |
|---|---|
Transportation lock , Red Light | |
TECHNOLOGIES | |
|---|---|
Smart Light Technology, Dual Power Source, Micro Prism Technology,
Magnetic Charge System | |
Compact, Reliable & Powerful
Small in size, easy to carry and rechargeable (Li-Ion battery) with Magnetic Charge System.
Can also use with a normal Alkaline AA battery. Flexible dual power source.
Can be used in rain and heavy storm. Suitable for campers, hikers and anyone that enjoy outdoor activities.
State of the art lens technology for glare-free light
The small ML4 Warm Light completes our helpful outdoor lantern family, the all-purpose light to take with you in ultra-compact housing.
All lanterns of the series use Micro Prism Technology, which provides efficient, glare-free and focused illumination of the surroundings. Optionally available with red light.
- Warm light creates a cosy and comfortable atmosphere.
- Snap hook clasp for flexible use and fastening
- Comfortable battery charging with Magnetic Charge System
- Micro Prism Technology: state-of-the-art lens technology for glare-free light and high energy efficiency
- The red light function contains night vision capability
- Luminescent elements for better location of the lamp in the dark
- Dual Power Technology allows an extension of the usage period
1. Light Functions
- Power – high light output for every situation
- Mid Power – medium light output for every situation
- Low Power – economical light for long battery life, glare-free reading and working
- Boost – short-duration maximum power for more brightness
- Blink – automatic emission of light impulses at regular intervals
2. Energy Management
- Low Battery Warning – it warns you when the battery is low
- Battery Indicator – it shows the current level of the battery
- Charge Indicator – it shows the current charge status of the battery
3. Rechargeable
- Did you know that conventional, disposable batteries can require up to 500 times more electricity to produce than they can release?
- By opting for rechargeable batteries, not only are you saving money in the long-run by reusing the same batteries, but you’re no longer throwing disposables away, which is a plus for Mother Earth.
4. Special functions
- Dual power technology – offers extended usage time thanks to AA batteries to back up the included rechargeable battery
- Optional red light – for enhanced maintenance of night vision
- Carabiner snap hook – for flexible usage and fastening
5. Switches
- Front Switch – a switch on the front of the lantern.
6. IP-Class
- IP66 – Dust-proof and protected against powerful water jets.
Which Lantern is right for you?
ML4
Lantern RM198.00
- 300 lm
- 45 h
- IP66
- 97 mm
- 71 g
- Magnetic Charge System
- 14500 Li-ion Battery
- 750 mAh
- Boost / Power / Mid Power / Low Power (+ Blink)
Shop Now
Only 1 left in stock
Popular
ML4
Warm Light RM198.00 – RM228.00
- 300 lm
- 40 h
- IP66
- 97 mm
- 71 g
- Magnetic Charge System
- 14500 Li-ion Battery
- 750 mAh
- Boost / Power / Mid Power / Low Power (+ Blink)
Shop Now
In stock
ML6
Lantern RM458.00
- 750 lm
- 240 h
- IP66
- 178 mm
- 280 g
- USB Charge System
- 18650 Li-ion Battery
- 3200 mAh
- Boost / Power / Low Power (+ Blink, Pulse, S.O.S., Strobe)
Shop Now
In stock
Popular
ML6
Warm Light RM458.00
- 750 lm
- 200 h
- IP66
- 178 mm
- 280 g
- USB Charge System
- 18650 Li-ion Battery
- 3200 mAh
- Boost / Power / Low Power (+ Blink, Pulse, S.O.S., Strobe)
Shop Now
In stock
iA6R
Industry RM408.00
- 750 lm
- 70 h
- IP66
- 178 mm
- 280 g
- USB Charge System
- 18650 Li-ion Battery
- 3200 mAh
- Boost / Power / Low Power (+ Blink, Pulse, S.O.S., Strobe)
Shop Now
In stock
Industry

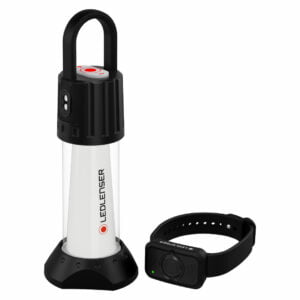

ML6 Connect
