Ledlenser W4R Work Datasheet
Robust, versatile, compact: The Ledlenser W4R Work is a reliable worklight for everyday workshop use. The superior Ledlenser light beam ensures precise and powerful illumination of work areas – either broadly via flood light or selectively via a spot LED in the lamp head. Thanks to the integrated magnet and swivelling base, the W4R Work can be flexibly positioned and aligned at any time. The powerful battery can be charged quickly and easily via USB-C and can be replaced if necessary. Other features include a clip for attaching to work clothing or equipment, a nubbed surface for a strong grip and a handy transport lock.
- Compact premium worklight with two light sources for wide-area (flood) or spot illumination
- Robust plastic housing with non-slip surface structure

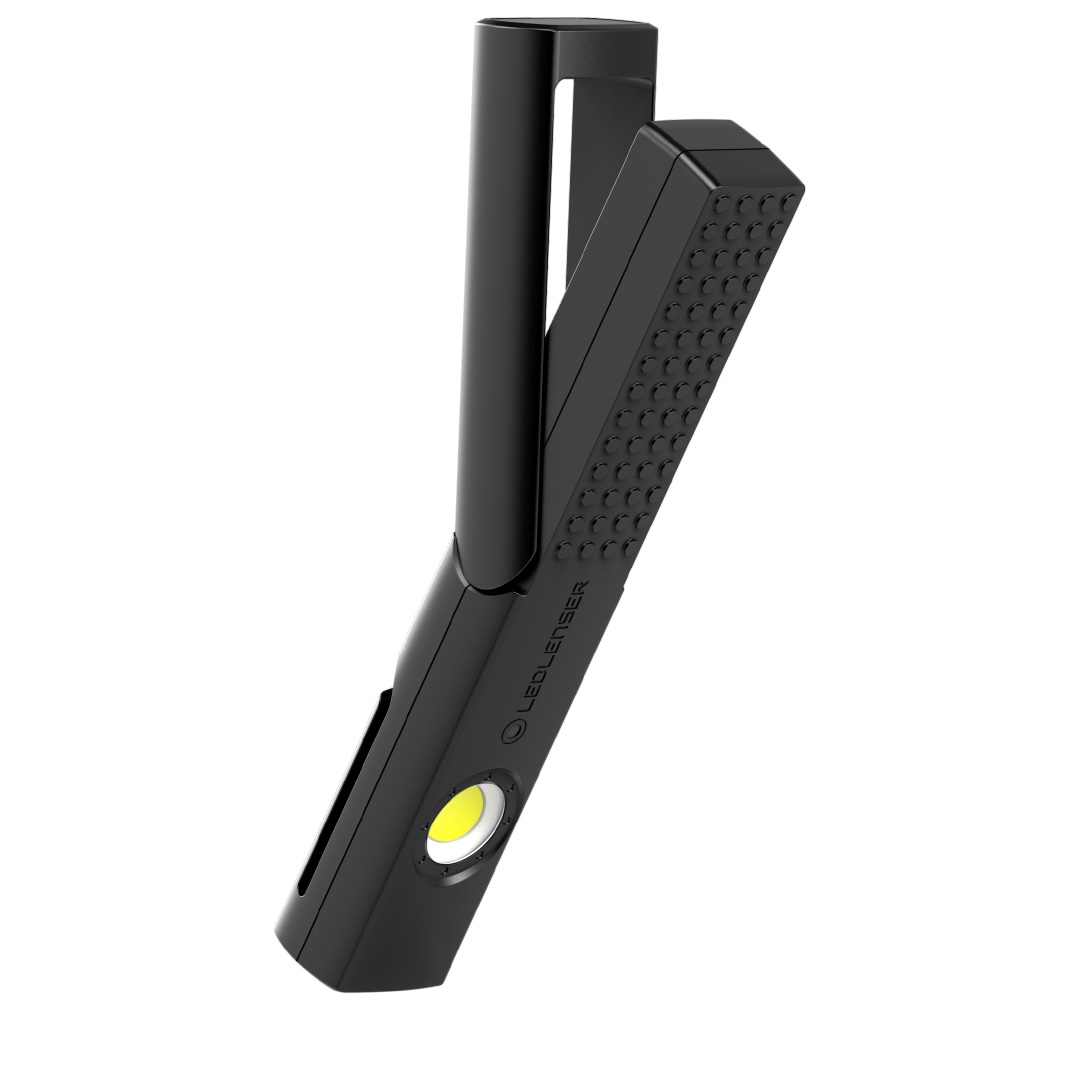

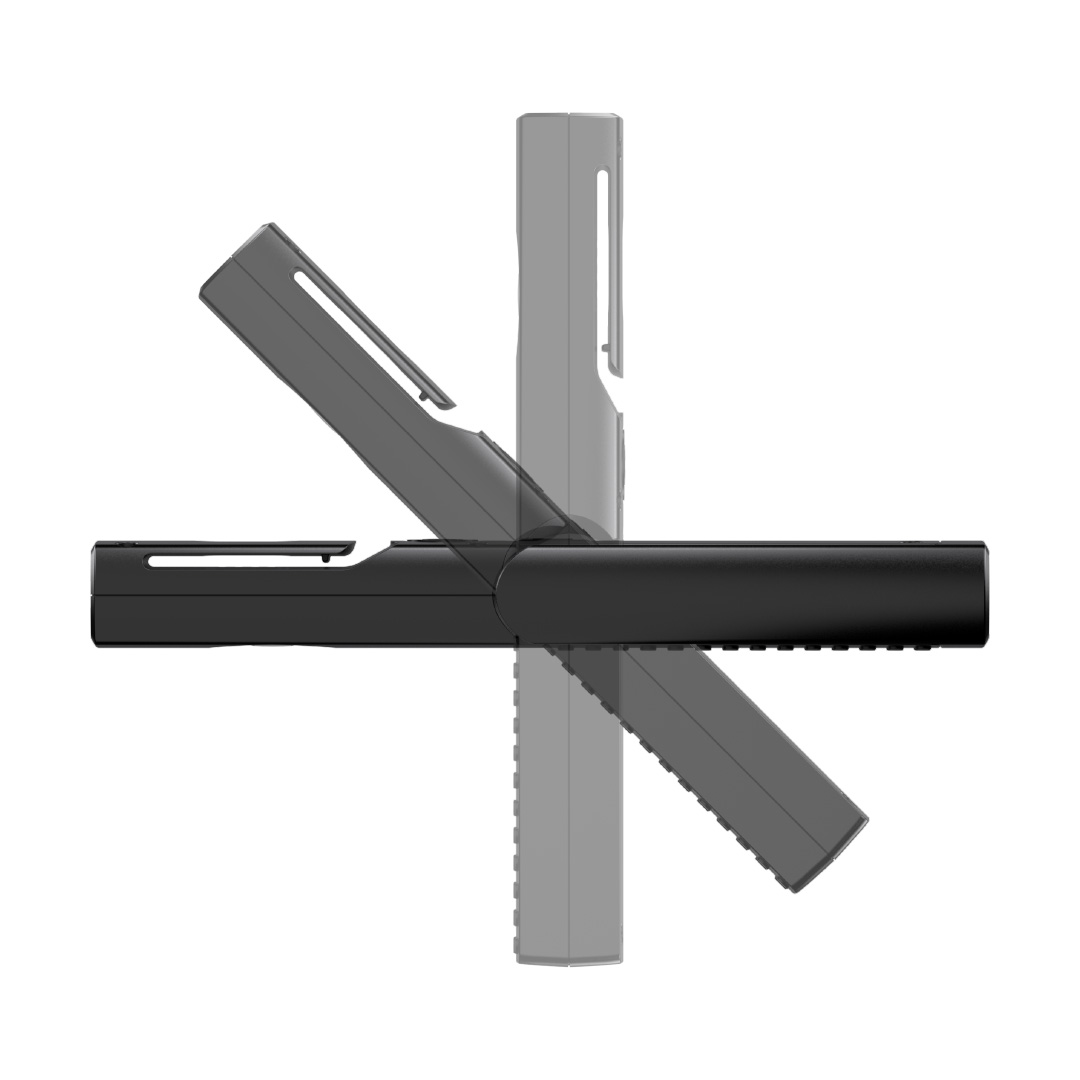

- Flexible mounting and illumination thanks to magnet and swivel mechanism

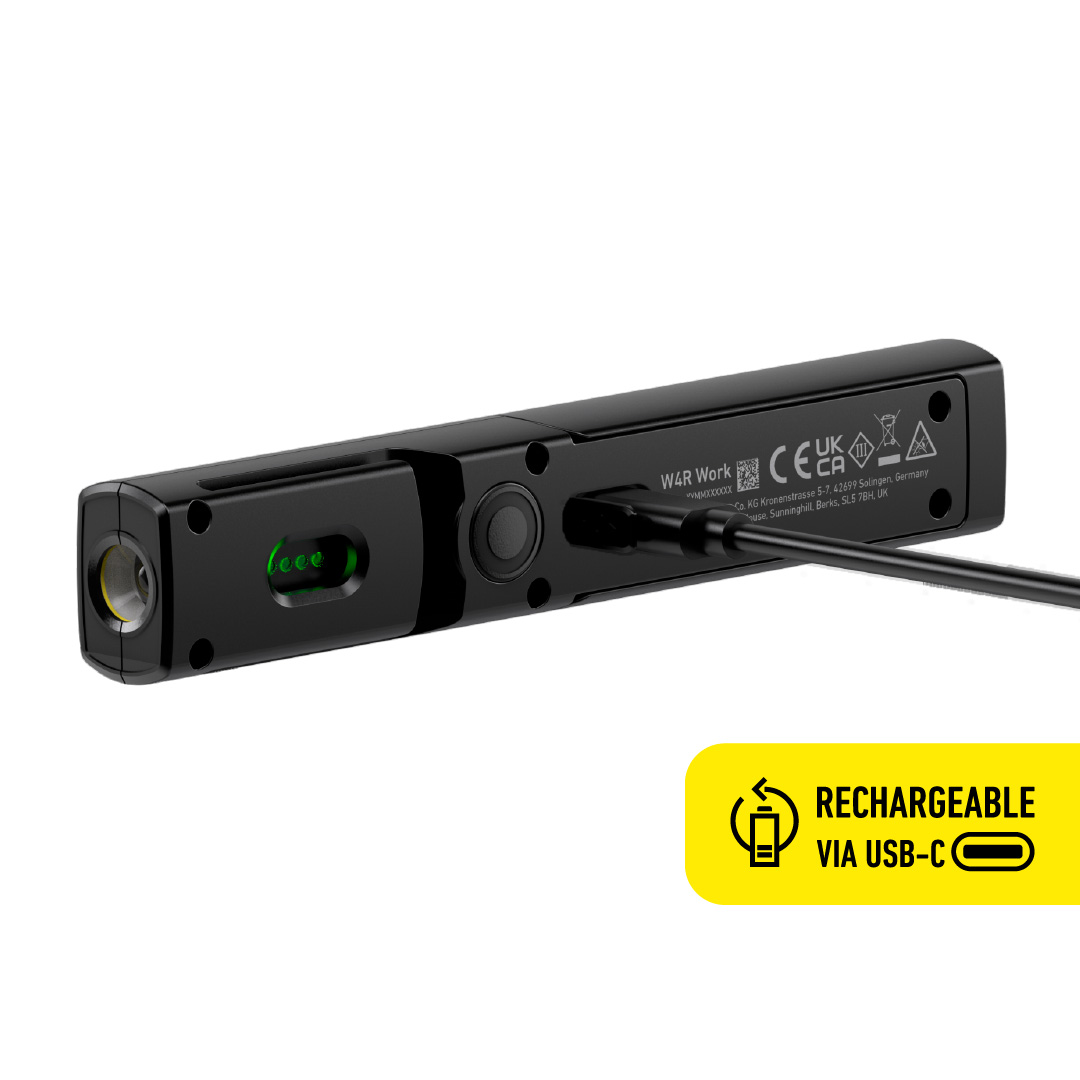

- Service-replaceable li-ion battery; easily rechargeable via USB-C, with battery and charge level indicator
- Transport lock prevents light from being accidentally turned on
8 ways how we improved our new W-Series
- Brighter,
- No more scratchy metal edges and sticky TPE rubber,
- Cost-saving & sustainable with exchangeable, rechargeable battery
- Low battery warning
- Perfect for robust working environments with it’s Strong grip
- USB-C to USB-C recharge solution
- Build in house magnet for better protection of scratch-sensitive surfaces
- Transport lock
PACKAGING INFORMATION | |
|---|---|

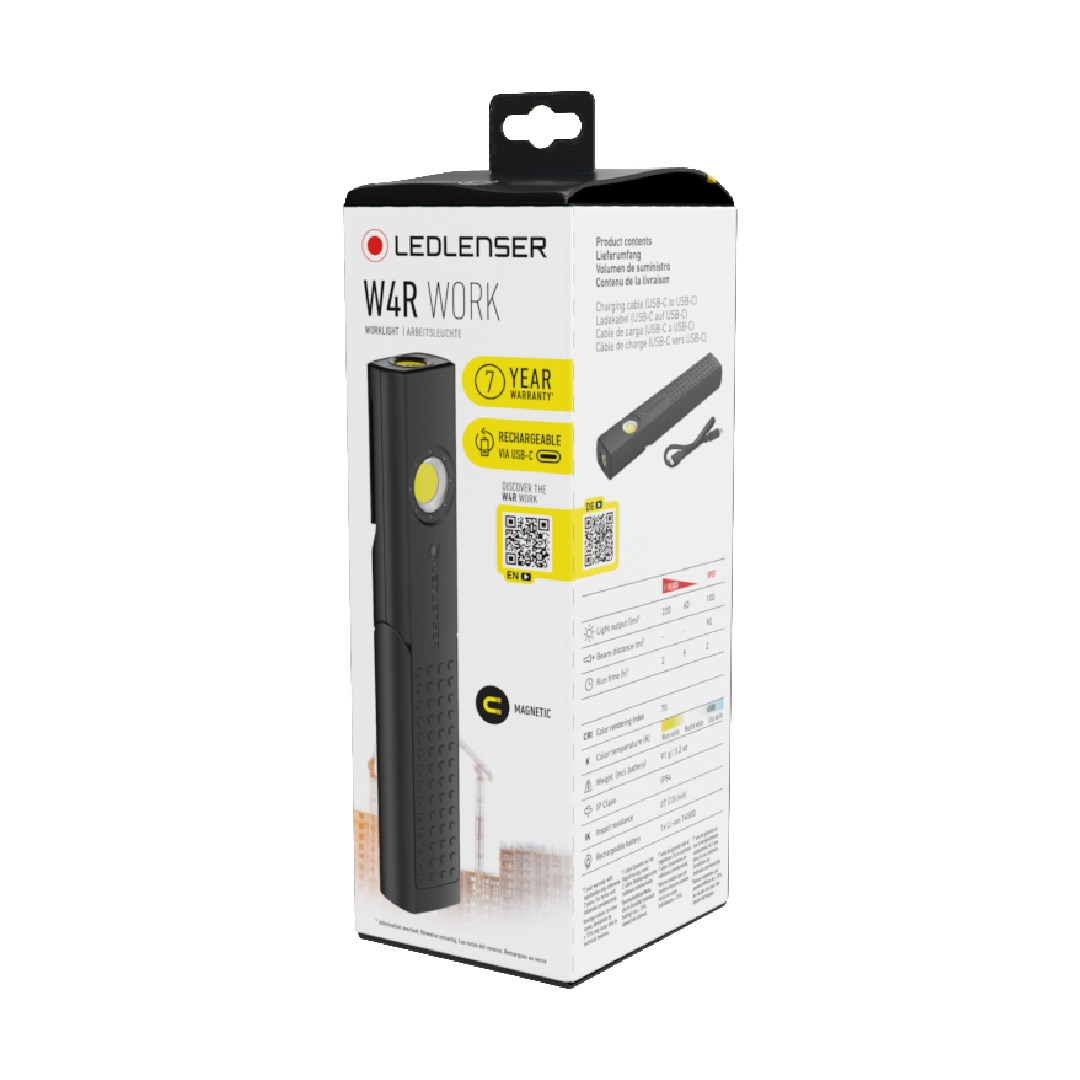

Type of packaging | Box |
Scope of delivery | Type-C to Type-C cable |
Item No. | 502733 |
Dimensions W x H x D [cm] | 7.2 x 21 x 8.5 |
Gross weight [g] | 228 |
TECHNICAL DATA | |
|---|---|
Width [mm] | 28 |
Depth [mm] | 20 |
Height [mm] | 163 |
Weight incl. batteries [g] | 91 |
Focus function | No |
Primary material | PC |
Cartridge | No |
POWER SUPPLY | |
|---|---|
Power source type | Rechargeable battery |
Battery quantity | 1 |
Battery type | Li-ion |
Battery replaceable | Check with Ledlenser Service |
Total battery voltage [V] | 3.7 |
Total battery capacity [mAh] | 760 |
Total battery energy [Wh] | 2.812 |
Rechargeable | Yes |
Charging time [min] | 120 |
Energy modes | Constant Light |
Energy status indicator | Battery Indicator, Charge Indicator, Low Battery Warning |
FURTHER SPECIFICATIONS | |
|---|---|
IP class | IP54 |
Drop test (drop height) [m] | 1 |
Working temperature range [°C] | -20 to +40 |
LIGHT FUNCTIONS | |
|---|---|
Low Power, Mid Power, Power | |
LIGHT SOURCE | FLOOD | SPOT | |
|---|---|---|---|
Amount LEDs | 1 | 1 | |
LED type | COB LED | High Power LED | |
Color | White | White | |
Color temperature [K] | 6000 to 7500 | 6000 to 7500 | |
Color rendering index (CRI) | 70 | 70 | |
LIGHT VALUES – FLOOD | ||||
|---|---|---|---|---|
Energy Saving | Boost | Power | Mid Power | Low Power |
Light output [lm] | 220 | 60 | ||
Run time [h] | 2 | 9 | ||
LIGHT VALUES – SPOT | ||||
|---|---|---|---|---|
Energy Saving | Boost | Power | Mid Power | Low Power |
Light output [lm] | 100 | |||
Run time [h] | 2 | |||
SWITCH | |
|---|---|
Front Switch | |
FEATURES | |
|---|---|
Transportation lock , Flicker Free | |
