Description
Ledlenser W6R Work Datasheet
Robust, flexible, versatile: The Ledlenser W6R Work shines bright when things get tight, e.g., in cable ducts or engine
compartments. In addition to the flexible attachment via stand, magnet or hook, the compact work light impresses with a
fold-out and rotatable lamp head that illuminates even the narrowest gaps directly from the inside. The superior
Ledlenser premium light beam ensures the necessary precision – either via wide-area flood light or spotlight. The
powerful battery is easily rechargeable via USB-C and can be replaced if necessary. Other features include a nubbed
surface for a strong grip, a handy transport lock and a low battery warning function.
- Flexible premium work light with two light sources for wide-area (flood) or spot illumination

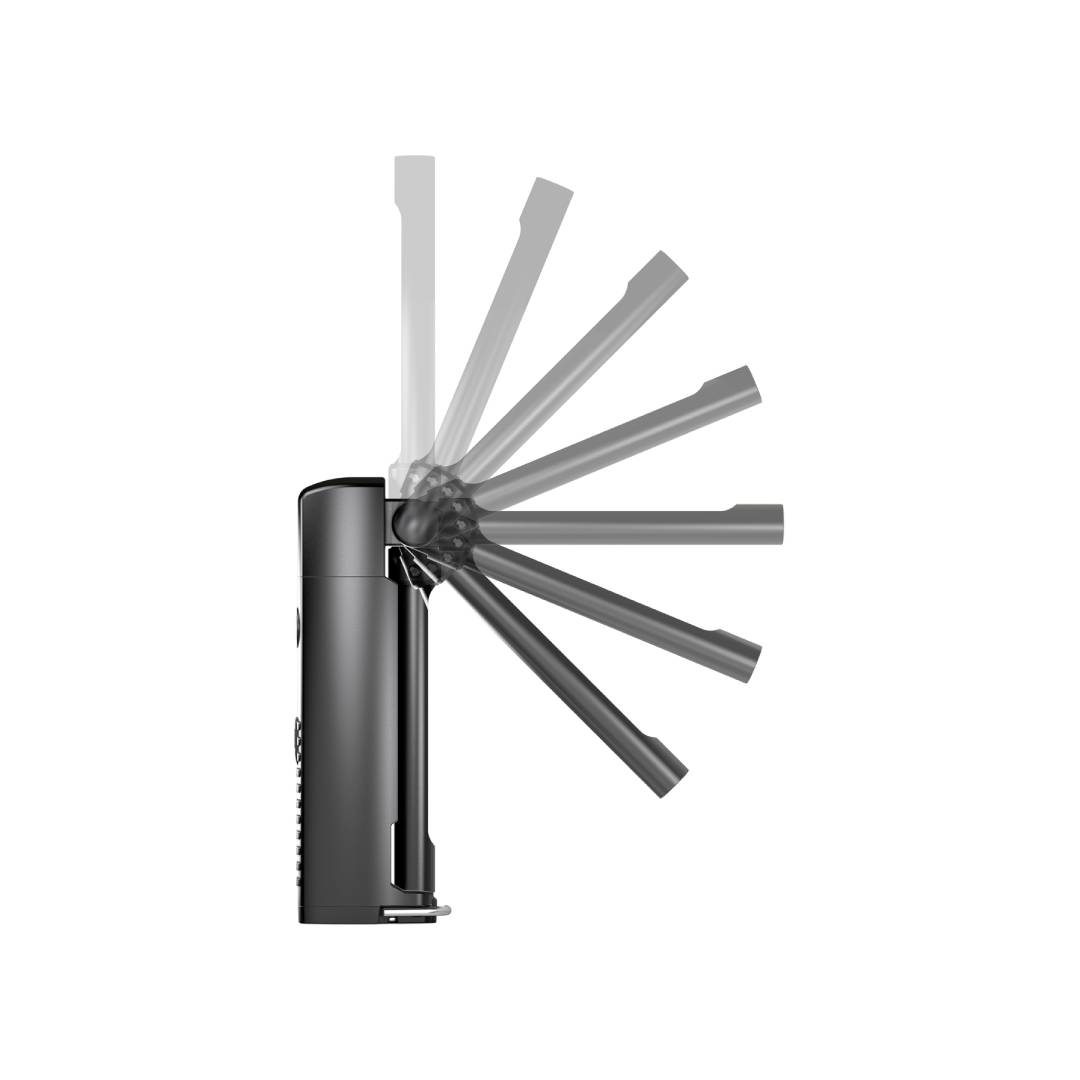

- Foldout (180°) and rotatable (270°) lamp head for illuminating hard-to-reach work areas, e.g., cable shafts, engine
compartments - Robust plastic housing with non-slip surface structure
- Flexible mounting via stand, magnet, and foldout metal hook
- Service-replaceable li-ion battery; easily rechargeable via USB-C, with battery and charge level indicator
PACKAGING INFORMATION | |
|---|---|
Type of packaging | Box |
Scope of delivery | USB cable |
Item No. | 502736 |
Dimensions W x H x D [cm] | 45.5 x 29 x 34 |
Gross weight [kg] | 9.5 |
TECHNICAL DATA | |
|---|---|
Width [mm] | 31 |
Depth [mm] | 45 |
Height [mm] | 143 |
Weight incl. batteries [g] | 180 |
Weight without batteries [g] | 132 |
Focus function | No |
Primary material | PC |
Secondary material | Aluminum alloy |
Cartridge | No |
POWER SUPPLY | |
|---|---|
Power source type | Rechargeable battery |
Battery quantity | 1 |
Battery type | Li-ion |
Battery replaceable | No |
Total battery voltage [V] | 3.7 |
Total battery capacity [mAh] | 2500 |
Total battery energy [Wh] | 9.25 |
Rechargeable | Yes |
Charging time [min] | 210 |
Energy modes | Constant Light |
Energy status indicator | Battery Indicator, Charge Indicator, Low Battery Warning |
FURTHER SPECIFICATIONS | |
|---|---|
IP class | IP54 |
IK Code [J] | 7 |
Drop test (drop height) [m] | 1 |
Working temperature range [°C] | -20 to +40 |
LIGHT FUNCTIONS | |
|---|---|
Low Power, Mid Power, Power | |
LIGHT SOURCE | COB | SPOT | |
|---|---|---|---|
Amount LEDs | 1 | 1 | |
LED type | COB LED | High Power LED | |
Color | White | – | |
Color temperature [K] | 6000 to 7500 | 6000 to 7500 | |
Color rendering index (CRI) | 80 | 70 | |
LIGHT VALUES – FLOOD | ||||
|---|---|---|---|---|
Energy Saving | Boost | Power | Mid Power | Low Power |
Light output [lm] | 500 | 220 | ||
Run time [h] | 2 | 6 | ||
LIGHT VALUES – SPOT | ||||
|---|---|---|---|---|
Energy Saving | Boost | Power | Mid Power | Low Power |
Light output [lm] | 120 | |||
Beam distance¹ [m] | 70 | |||
Run time [h] | 10 | |||
SWITCH | |
|---|---|
Front Switch | |
FEATURES | |
|---|---|
Transportation lock , Flicker Free | |
